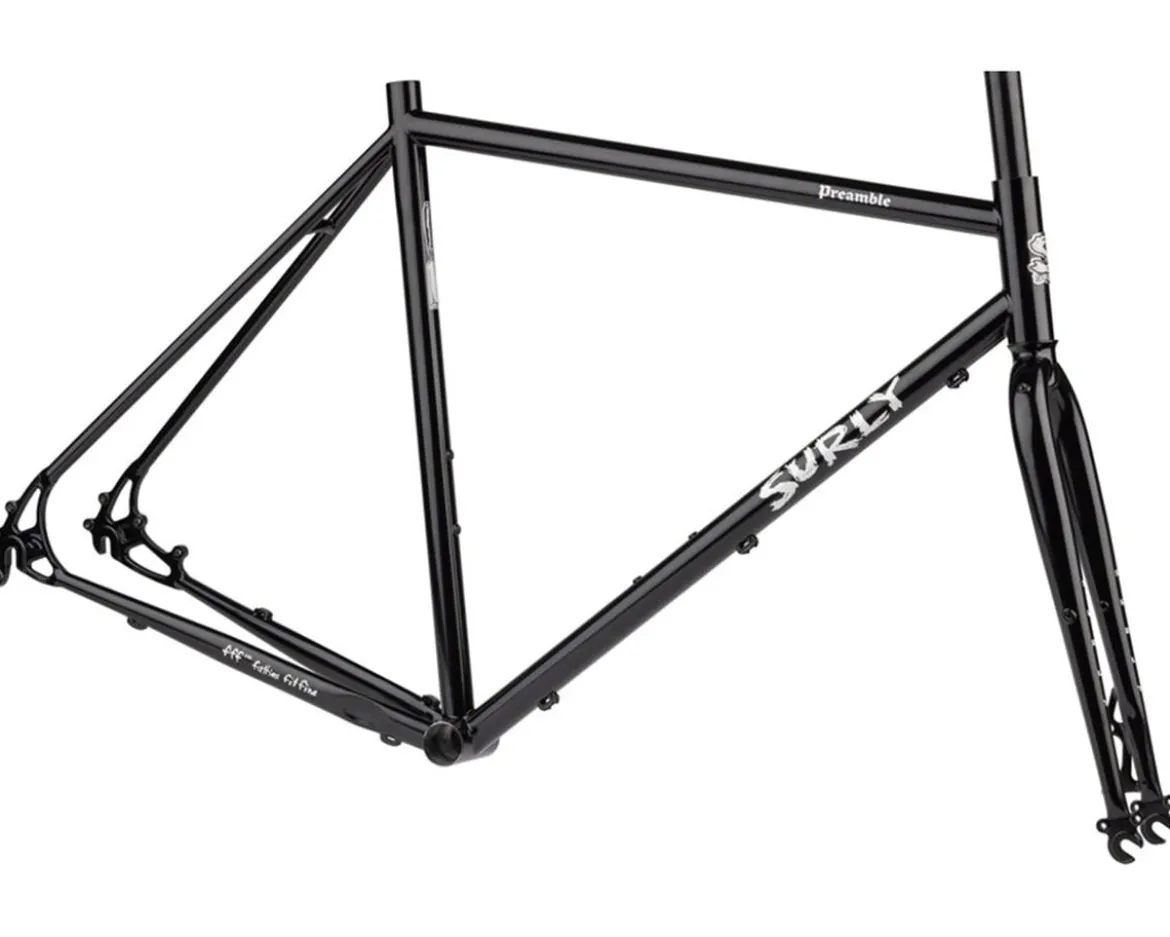

Surly Preamble Frameset (Black) (700c) (M)

Surly Preamble Frameset Description:

Designed to introduce unfamiliar riders to Surly’s pavement and gravel line, Preamble highlights Surly’s most essential features: Durable custom steel tubing, a renowned ride feel, and just the right mounts for running racks, fenders, and bottle cages. Friendly with flat-bar and drop-bar configurations, it’s disc-brake specific and shares a single-position vertical dropout with Surly Bridge Club. For new weekend riders and veteran commuters, Preamble makes it easier than ever to get out of the car and on top of tough and comfortable Chromoly steel.

Features:

• 100% Surly Chromoly steel frame and fork; double-butted main triangle
• 5 frame sizes fit nearly every size rider (XS-XL), with a slightly sloped top tube on XS and S frames for improved standover and comfort
• Friendly with 1x and 2x drivetrains
• Mounts for racks, fenders, and two bottle cages (located on the seat tube and down tube)
• Clearance for 650b x 41mm tires on XS–S frame sizes (with or without fenders); 700c x 41mm tires on M–XL frame sizes (with or without fenders)

Specifications:

• Frame Material: 100% Surly Chromoly steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
• Fork Material: 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
• Headset: Not Included
• Headset Size: EC34/28.6 (Upper), EC34/30 (Lower)
• Brake Compatibility: Disc Only (Hydraulic or Mechanical
• Brake Mounts: Post Mount
• Rotor Compatibility: 160 or 180mm (Front), 203mm max. (Rear)
• Axle Type: Thru Axle
• Hub Spacing: QR x 100mm (Front), QR x 135mm (Rear)
• Stem: Not Included
• Stem Size: 1-1/8″ Steerer
• Seatpost: Not Included
• Seatpost Diameter: 27.2mm
• Seatpost Clamp: Included (Alloy) (30mm)
• Bottom Bracket: Not Included
• Bottom Bracket Type: Threaded BSA
• Bottom Bracket Width: 68mm
• Drivetrain Compatibility: 1x/2x Mechanical
• Chainring Compatibility: 2x (47CL): 46/36T
• Tire Clearance: 650b x 41mm tires on XS–S frame sizes (with or without fenders); 700c x 41mm tires on M–XL frame sizes
• Cable Routing: External
• Dropper Post Routing: No
• Water Bottle Bosses: 2 Mounting Positions (Downtube & Seattube)
• Fender/Rack Mounts: Yes
• Front Derailleur Mount: 31.8mm Clamp
• Rear Derailleur Hanger: Included
• Model Year: 2024
• Color: Black
• Weight: –
