Specialized S-Works Turbo Levo 4 Carbon E-Bike (Laurel Green/Burnt Gold/Chrome) (S2)

Specialized S-Works Turbo Levo 4 Carbon E-Bike Description:

The Specialized S-Works Turbo Levo 4 delivers intuitive power and control that will unlock new levels of capabilities and confidence on the trails. A full FACT 11m carbon fiber chassis blends smooth and clean aesthetics with low weight, incredible strength, and outstanding stiffness for pin-point handling control and power transfer. Specialized engineers have added a long, low, and slack geometry that puts the rider in a balanced position within the bike. A steep seattube angle engages the major muscle groups in the legs for explosive power generation, and an adjustable headtube angle, bottom bracket height, and chainstay length allows the rider to fine tune the performance of the bike to suit their unique needs. Neatly tucked within the downtube, just below the SWAT tool/accessory storage, is an 840Wh battery that delivers an operating range of around 4 hours, and if this is not enough, an optional range extender battery can be attached to add an additional 90 minutes of run time. This large capacity battery is connected to a very powerful and torquey S-Works specific mid-drive brushless motor and Mastermind TCU remote controller, delivering out of this world climbing capability, easy speed, and traction.

An incredible frame and motor deserves an equally incredible parts spec, and in true S-Works fashion, this bike does not disappoint. A Fox 38 Factory Series fork provides 160mm of front travel, and out back is a Fox Float X factory rear shock with a custom Specialized GENIE internals/valving that uses 150mm of rear wheel travel to keep the rear end of the bike firmly planted when the trails start to get rowdy. SRAM’s XX Eagle Transmission drivetrain delivers a broad gear range and fast, precise shifts even under full power and heavy pedaling load. When it is time to check the speed or come to a stop, a combination of large disc rotors and powerful 4-piston SRAM Maven Ultimate hydraulic disc brakes deliver confident braking in any weather or trail conditions. Sturdy, yet light, Roval Traverse HD carbon fiber wheels are wrapped in very grippy Specialized Butcher tires to provide excellent reliability, low maintenance, and deliver predictable performance over a wide variety of trail types. Wrapping up the dream parts list are Race Face’s light and very comfortable ERA carbon handlebars and a wireless Fox Transfer NEO Factory dropper post topped with a very comfortable Specialized Power Pro saddle with Mirror 3D printed technology, ensuring the touch points get the same level of comfort, love, and performance as the rest of this incredible e-bike. Specialized S-Works Turbo Levo 4; where natural feeling assist unlocks supernatural performance on the trails!

Features:

• Lightweight, stiff, and strong FACT 11m Carbon Fiber is used in the construction of the entire chassis, including the front triangle, chainstays, seatstays, and the rear shock extension
• Optimized to use a mixed wheel size set up, with a rear 27.5″ tucked under the rider for better traction and enhanced maneuverability, and 29″ up front so this bike can easily roll over anything
• Progressive geometry delivers very stable and confident handling straight out of the box, and an adjustable heat tube angle, bottom bracket height, and chainstay allows the rider to dial in the handling to suit their preferences
• Specialized S-Works 3.1 Motor delivers up to 850 Watts of power and up to 111 Nm of torque, enabling the rider to scale any terrain with ease
• 840 W/h battery is discretely stashed inside the downtube, and it delivers up to a 4.40 hour operating range

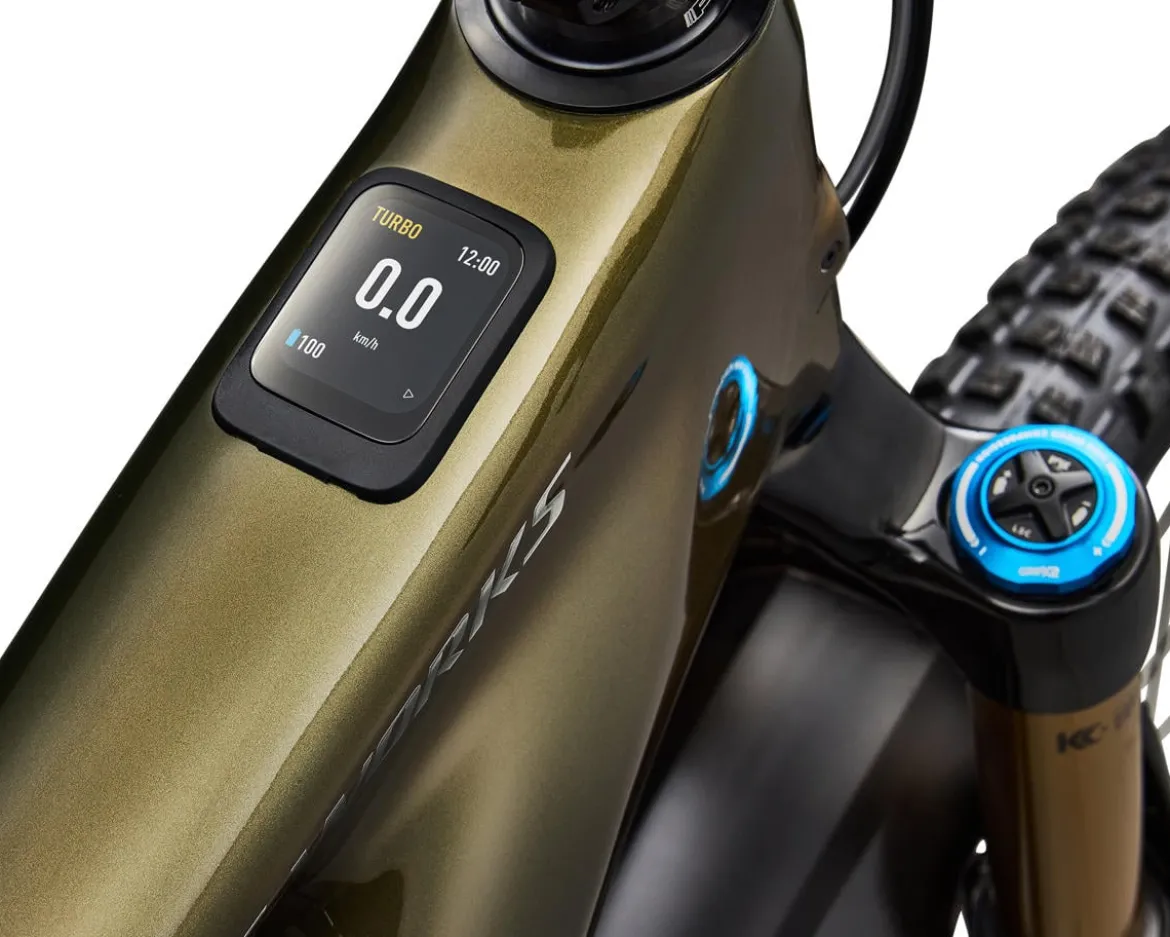

• 2.2″ high-resolution MasterMind top tube display transmits vital ride data, presents options for fine-tuning of assist levels, and connects via Bluetooth to the Specialized app for total control
• Levo 4 Super Charger accomplishes up to 80% of the full charge in less than one hour in its quickest setting, or if not in a rush, using the Eco mode can be used to fully charge the battery and do it at a slower pace that maintains optimal battery health
• SWAT Downtube storage lets tubes, tools, and other little knick knacks to be tucked inside the frame where it can be easily accessed as needed
• Fox 38 Factory Series suspension fork delivers pin-point steering precision and uses 160mm of travel to keep the front of the bike planted over technical terrain
• Float X Factory rear shock with Specialized’s GENIE valving (providing 150mm of rear travel) enhances control through bump zones, prevents bottom-outs with a progressive spring curve, and has a high level of tunability so the rider can dial in the performance
• SRAM XX AXS Transmission delivers flawless electronic shifting under full load, ideal for E-bike application
• SRAM Maven Ultimate hydraulic disc brake levers can be adjusted to suit any riders preferences, and those levers are connected to 4-Piston calipers which deliver easy modulation and plenty of power on tap for controlling speed in any trail/weather conditions
• Tubeless ready Roval Traverse HD Carbon wheels shave rotational weight and roll effortlessly on proven, low maintenance DT Swiss 240 DEG hubs
• Specialized Butcher tires utilize a robust GRID Gravity casing construction for excellent cut and puncture protection, and tacky Gripton T9 rubber compound works with the versatile tread pattern to deliver tenacious grip over a wide variety of trail conditions
• Race Face ERA carbon handlebar hits the sweet spot for vertical compliance and lateral stiffness that is proven to reduce arm and hand fatigue
• Fox’s Transfer NEO Factory wireless dropper seatpost drops the Specialized Power Pro Mirror saddle out of the way with a simple push of a button, creating the room a rider needs to safely navigate technical terrain

Specifications:

• Frame: S-Works Levo 4 Frame (Fact 11m Carbon) (SWAT Storage) (Carbon Shock Link) (150mm Travel) (Adjustable Head Angle, BB Height, & Chainstay Length)
• Fork: Fox Float 38 Factory Series (Grip X2 Damper) (High & Low Speed Rebound and Compression Adjustment) (160mm Travel) (44mm Offset) (15x110mm Thru Axle)

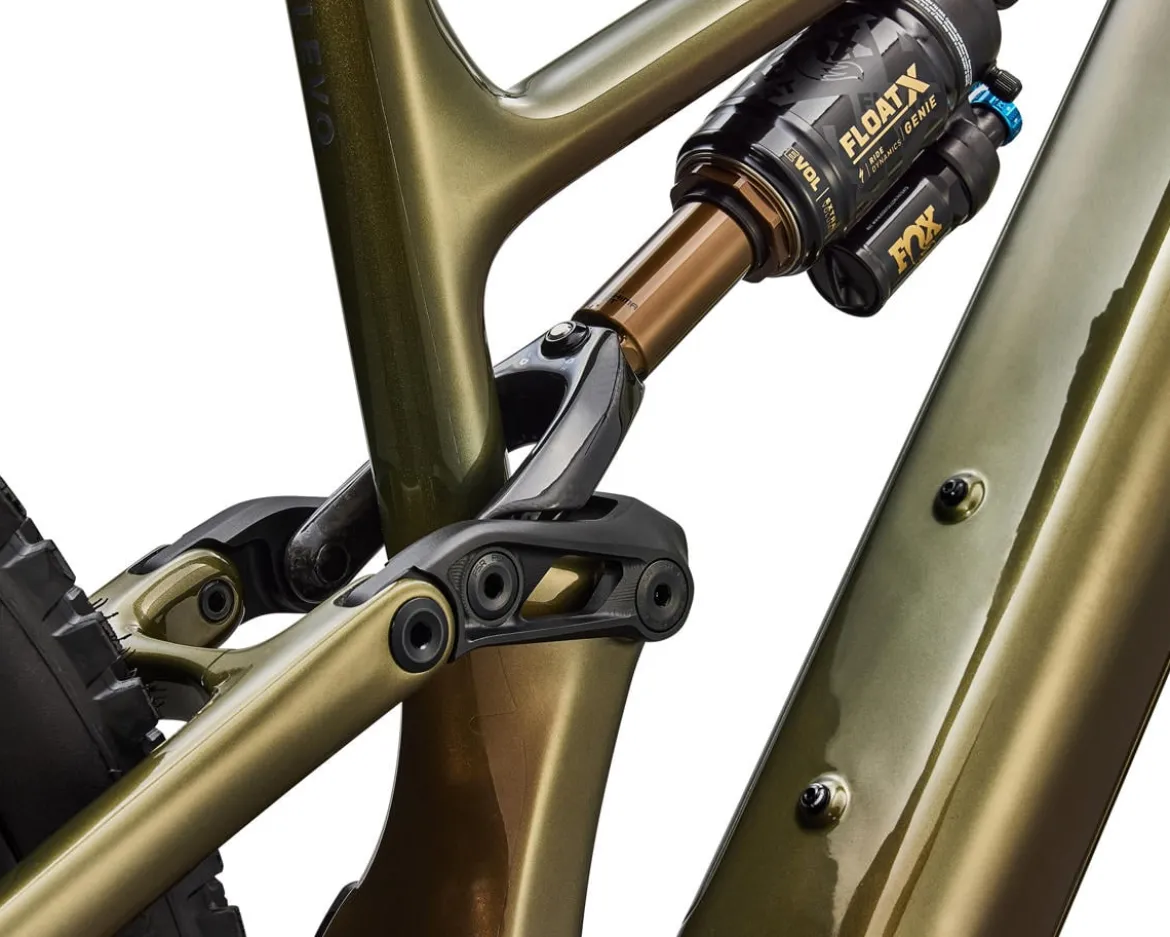

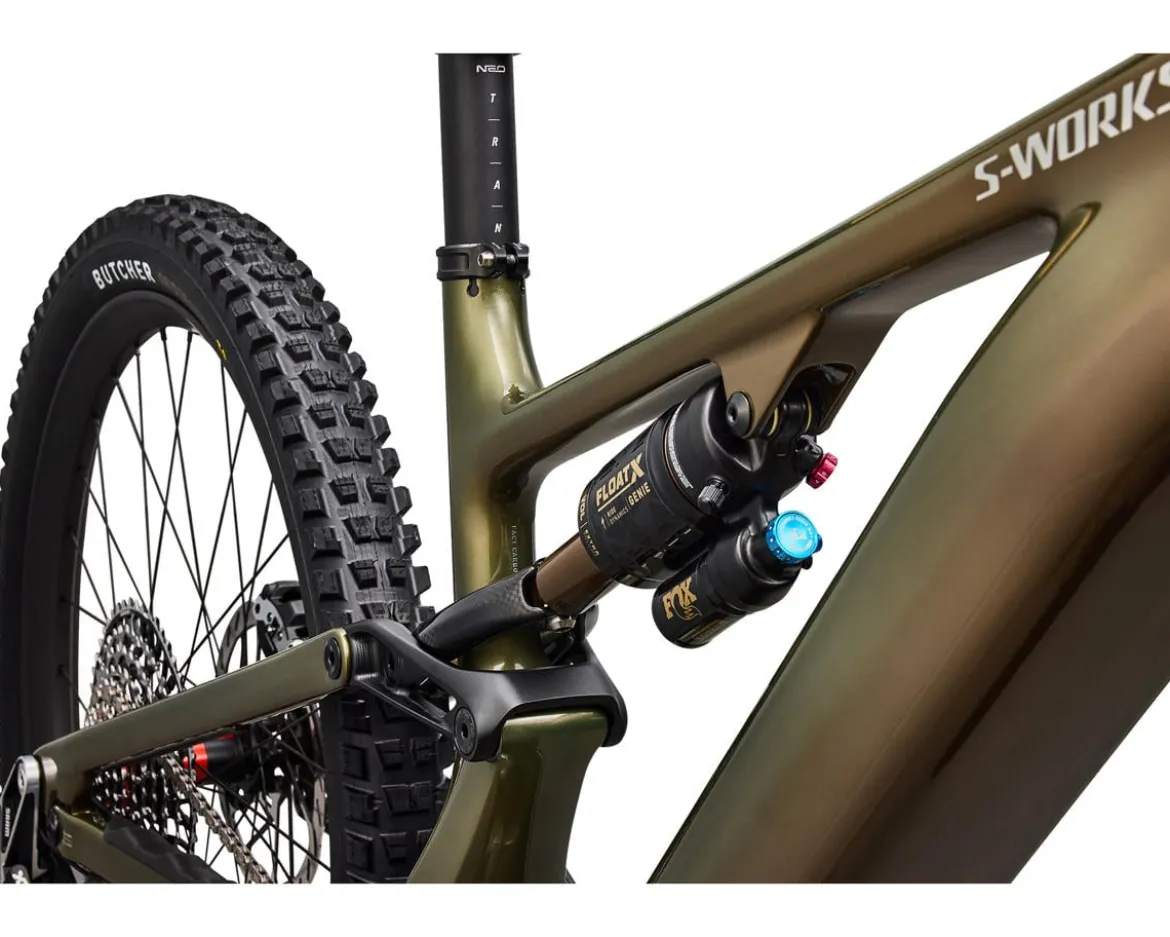

• Rear Shock: Fox Float X Factory w/ Specialized GENIE (Ride Dynamics Trail Tune) (2-Position Lever) (Low Speed Rebound Adjustment) (210 x 55mm)
• Headset: Tapered

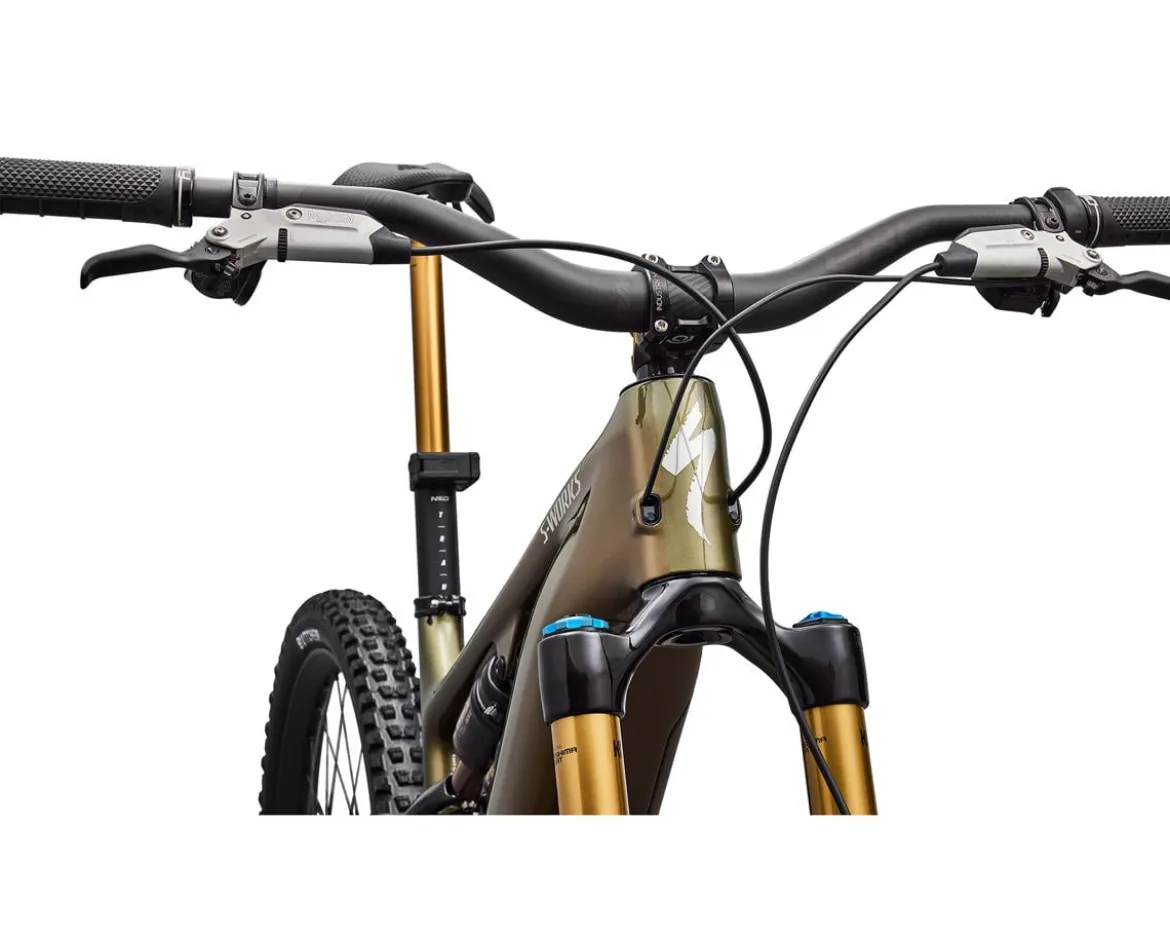

• Handlebar: Race Face ERA Carbon (800mm Width) (5° Upsweep, 8° Backsweep) (S2: 40mm Rise; S3-S6: 55mm Rise) (35.0mm)
• Grips: Deity Lockjaw Grips (32mm OD)
• Stem: Industry 9 Mountain Stem (35.0mm)
• Brake Levers: SRAM Maven Ultimate (Hydraulic)
• Rotors: SRAM HS2 (220mm-Front; 200mm-Rear)
• Brakes: SRAM Maven Ultimate (4-Piston Caliper) (Hydraulic Disc)
• Shifter: SRAM Pod Ultimate Shifter (Discrete Clamp)
• Rear Derailleur: SRAM XX Eagle AXS Transmission (12 Speed)
• Crank: SRAM XX Carbon Cranks (160mm) (ISIS Interface) (T-Type 34T Steel Chainring; 104 BCD)
• Bottom Bracket: –
• Cassette: SRAM XX Transmission XS-1297 Eagle (12 Speed) (10-52T)
• Chain: SRAM XX Eagle T-Type
• Pedals: –
• Saddle: Specialized Power Pro Mirror (Hollow Ti Rails)
• Seatpost: Fox Transfer NEO Factory (S2: 125mm, S3: 175mm, S4-S6: 200mm)
• Rims: Roval Traverse HD Carbon (30mm Internal Width) (Hand-Built) (Tubeless-ready)
• Front Hub: DT Swiss 240 DEG (6-bolt) (15x110mm) (28h)
• Rear Hub: DT Swiss 240 DEG (6-bolt) (12x148mm) (28h)
• Spokes: DT Swiss Aerolite Stainless Steel (J-Bend) (Pro-Lock Alloy Nipples)
• Front Tire: Specialized Butcher (Grid Gravity Casing) (Gripton T9 Compound) (Tubeless ready) (29 x 2.4″)
• Rear Tire: Specialized Butcher (Grid Gravity Casing) (Gripton T9 Compound) (Tubeless ready) (27.5 x 2.4″)

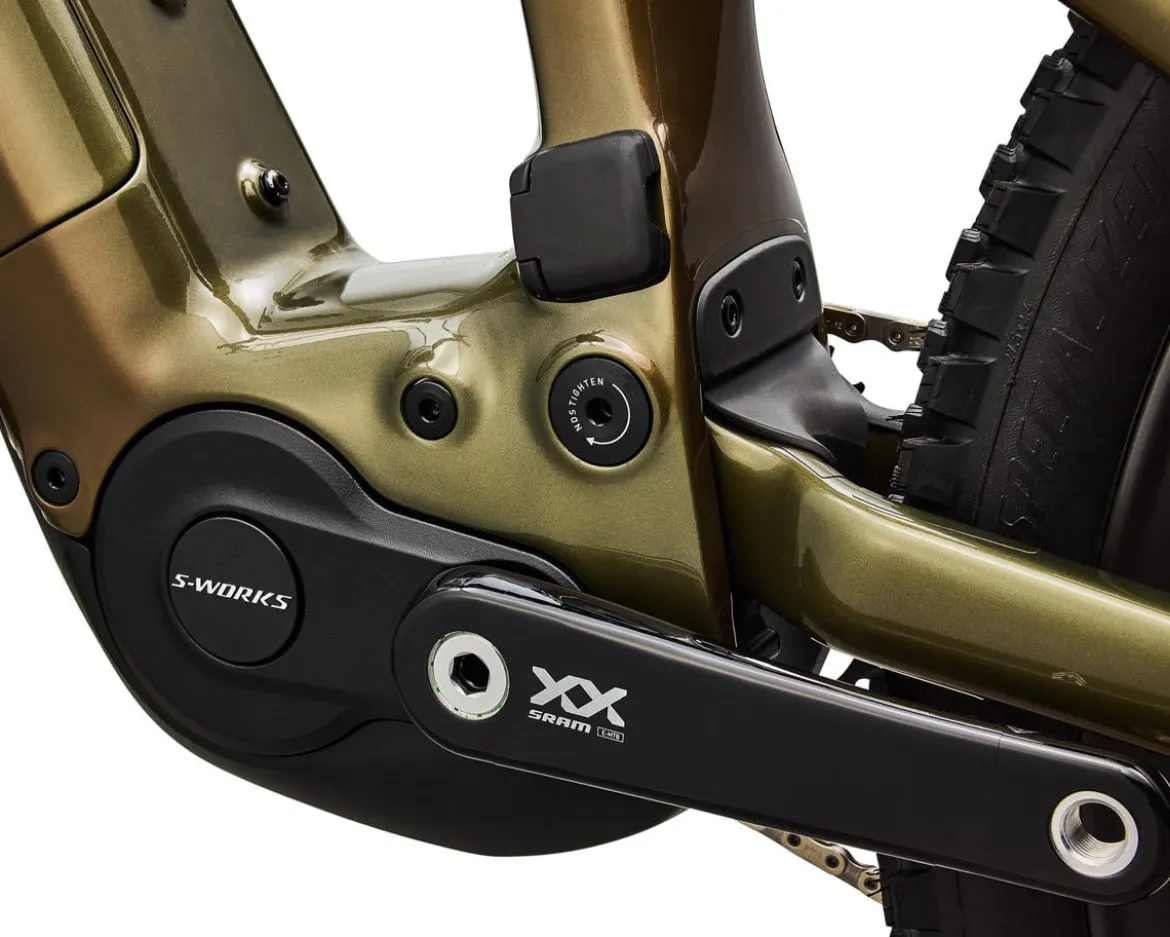

• Motor: Specialized 3.1 S-Works motor (111Nm/850W)
• UI/Remote: Mastermind TCU (2.2″ High Resolution Screen) (Fully Customizable w/ Specialized App) (Works w/ Apple Find My App) (ANT+/Bluetooth) (Handlebar Remote)
• Battery: Specialized Turbo X2 (Fully Integrated) (840Wh)
• Charger: Specialized 12 Amp Smart Charger (4 Different Charge Functions: Standard, Fast, Eco, and Charge to 80%)
• Model Year: 2026
• Color: Gloss Laurel Green/Burnt Gold/Chrome
• Weight: 52 lb, 3.3 oz (S4)
