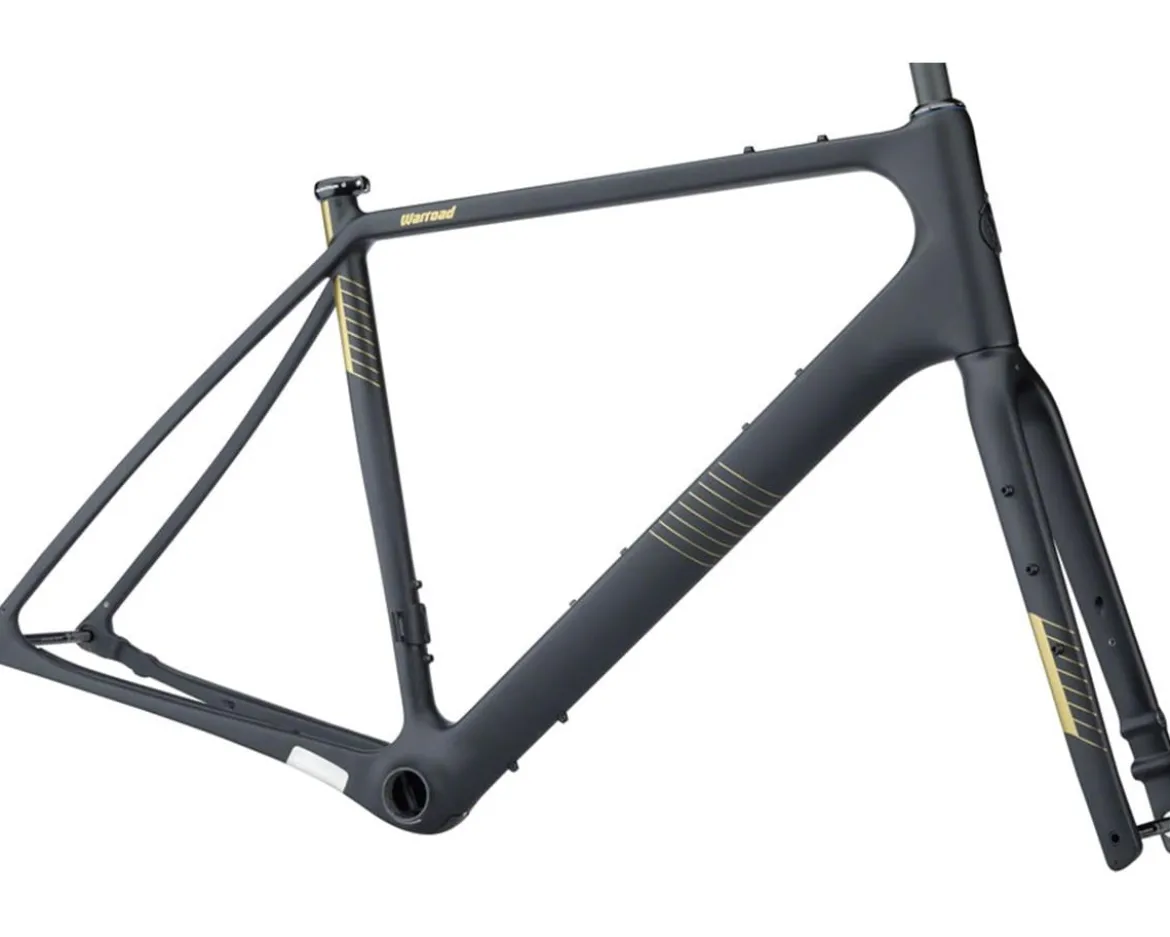

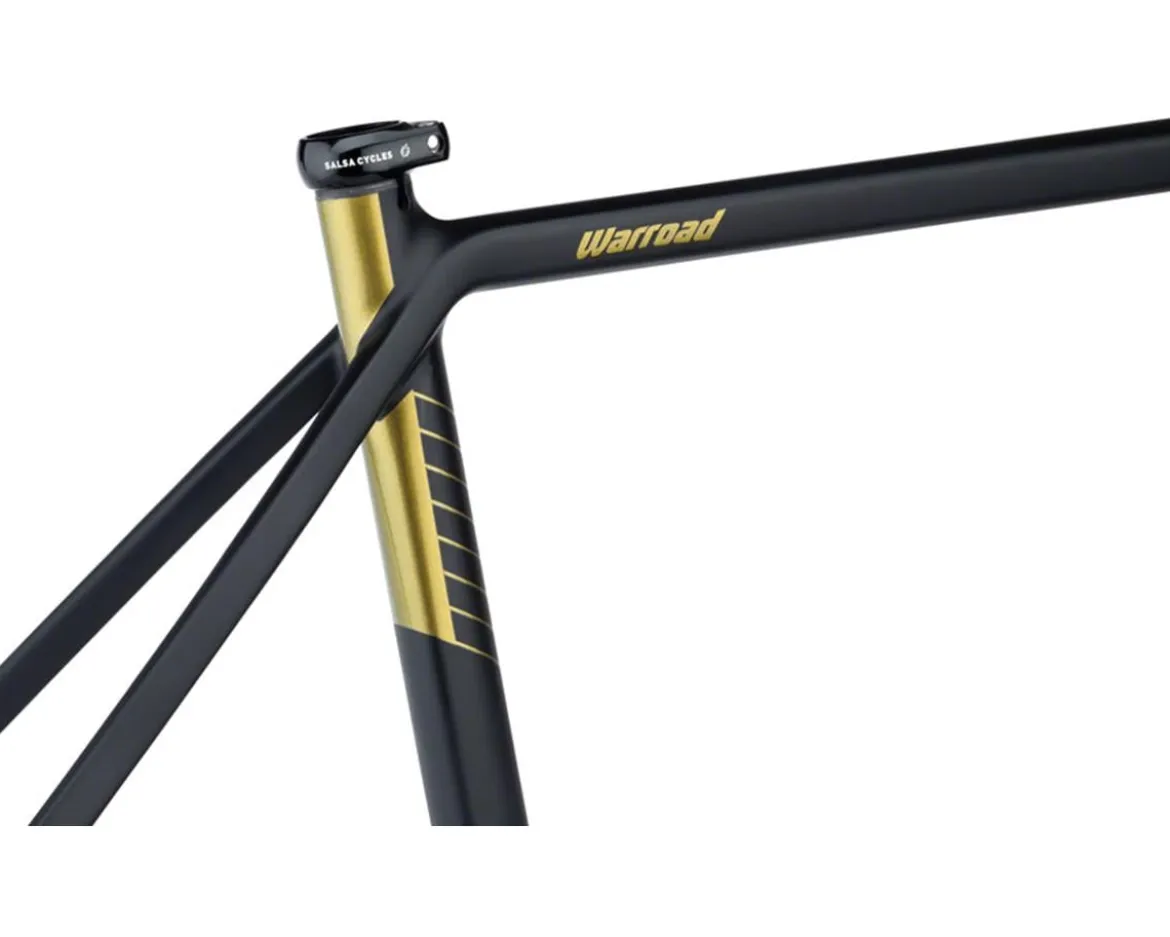

Salsa Warroad Carbon All-Road Frameset (Black) (56cm)

Salsa Warroad Carbon All-Road Frameset Description:

The Salsa Warroad Carbon All-Road Frameset is an all-road capable bike frameset designed to go anywhere the road goes and beyond. This bike features a very stable endurance all-road geometry that establishes a comfortable and efficient riding position for tackling rides of any length. Lightweight full carbon fiber construction utilizes size specific tube shaping and diameters combined with Class 5™ VRS technology in the rear triangle to smooth out the ride while maintaining great lateral and torsional stiffness, resulting in a bike with exceptional handling manners and power transference to the rear wheel. Best of all, thanks to multiple waterbottle cage, fender, rack, and other accessory mounts plus the ability to use either 700c or 650b wheels and tires, the versatile, comfortable, and high performance Warroad can be built up to be ready to go anywhere, anytime.

Features:

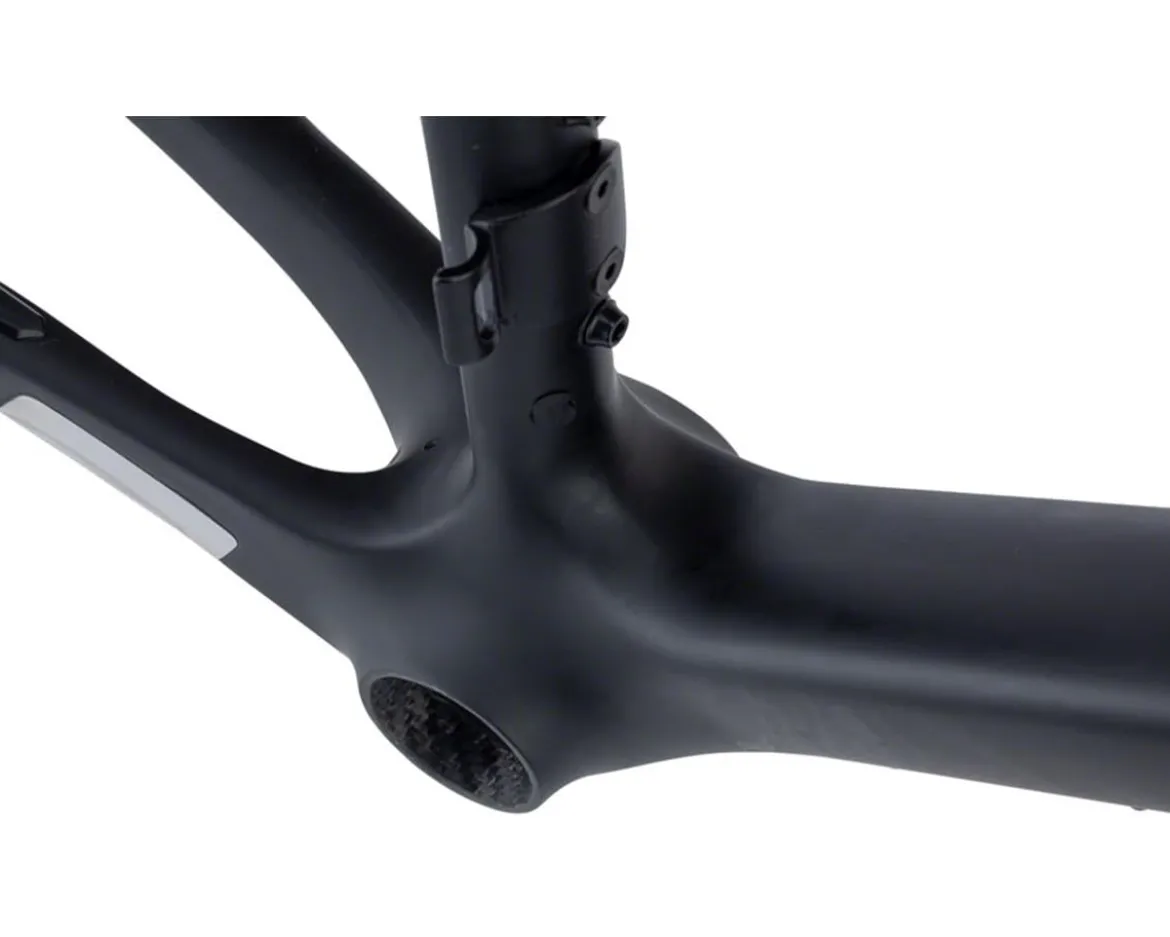

• Endurance/all-road geometry, size-specific carbon layup, and oversize bottom bracket junction increases stability on rough surfaces and has excellent power transfer from the pedals to the rear wheel
• Interior Junction Control Molded carbon fiber frame increases compaction and reduces voids and wrinkles in critical high-stress zones to produce a stronger frame and consistently higher performance

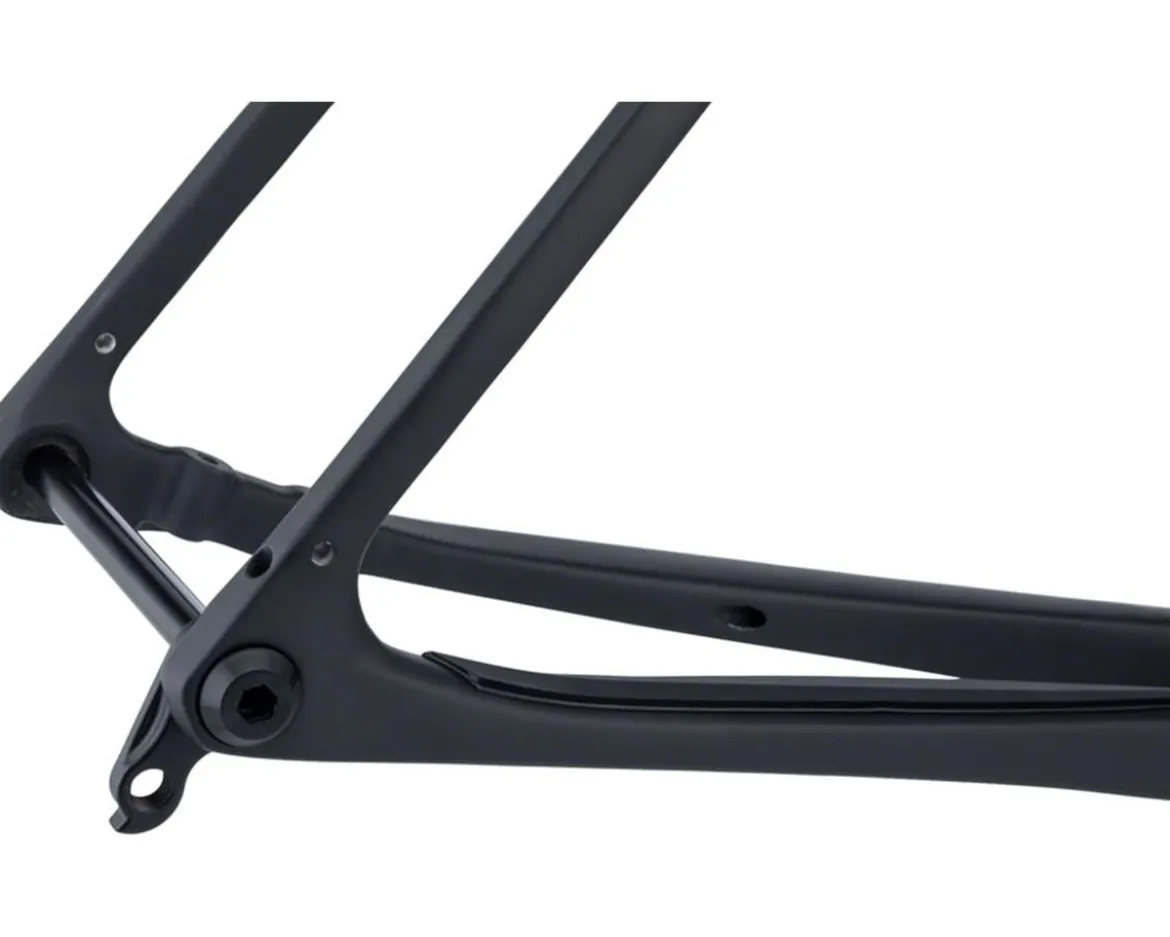

• Class 5™ Vibration Reduction System uses bowed seatstays with a thin, vertically oriented profile and horizontally oriented flattened chainstays to enable vertical flex while (thanks in part to the thru-axle drop-outs) maintaining a laterally stiff rear end; the lack of bridges tying either stay together allows the full length of the stays to contribute to smoothing out the ride
• Full carbon fiber Warroad Deluxe Fork has a tapered steerer tube and thru-axle drop-outs that create great stability and precise handling, and fender mounts, 3-pack mounts, mid-blade mounts, and internal dynamo hub cable routing are included to add accessories that make the rider safer and more prepared for anything
• Internal sleeved cable routing tubing allows the cable housing and hydraulic brake hoses to more easily slide through the frame, simplifying setup and maintenance
• Fender and rack mounts, spots for 2 water-bottle cages (56cm and larger have 3 mounting points), and 2 possible bottle mounts on the fork via Three-Pack mounts allow for plenty of options to kit the frame up for epic endurance feats
• Frame and fork have clearance for up to 700c x 35mm -OR- 650b x 47mm wheels/tires, or will fit up to 700c x 30mm tires -OR- 650b x 42mm tires when fenders are installed on the bike

Specifications:

• Frame Material: Warroad Carbon Fiber (Interior Junction Control Molding Technology) (Class 5™ Vibration Reduction System) (Internal Sleeved Cable Routing) (Stealth Dropper Post Routing) (Fender & Rack Mounts) (12x142mm Thru-Axle)
• Fork Material: Warroad Deluxe Carbon (1 1/8″ -to- 1 1/4″ Tapered Carbon Fiber Steerer Tube) (Mid-Blade Rack Eyelets) (Dynamo Front Hub Cable Routing) (Fender Mounts) (12x100mm Thru-Axle)
• Headset: Included (Cane Creek 40)
• Headset Size: IS41/286 (Upper) | IS47/33 (Lower) (Tapered)
• Brake Compatibility: Disc Only (Hydraulic or Mechanical)
• Brake Mounts: Flat Mount (Front & Rear)
• Rotor Compatibility: 160mm (Front) | 140 -or- 160mm (Rear)
• Axle Type: Thru-Axle (Front & Rear)
• Hub Spacing: 12 x 100mm (Front) | 12 x 142mm (Rear)
• Stem: Not Included
• Stem Size: 1-1/8″ Steerer
• Seatpost: Not Included
• Seatpost Diameter: 27.2mm
• Seatpost Clamp: Included (Alloy) (32.0mm)
• Bottom Bracket: Not Included
• Bottom Bracket Type: BB86 Press-Fit
• Bottom Bracket Width: 86.5mm (Accepts 2-Piece Road & Gravel Cranksets)
• Drivetrain Compatibility: 1x | 2x
• Chainring Compatibility: 48t Max (1x) | 52/36t Max (2x)
• Tire Clearance: 700c x 35mm (w/o Fenders) | 650b x 47mm (w/o Fenders) | 700c x 30mm (w/ Fenders) | 650b x 42mm (w/ Fenders)
• Cable Routing: Internal (Full Length Sleeved)
• Dropper Post Routing: Yes (Internal)
• Water Bottle Bosses: 2 in Main Triangle (Frames Up To 54.5cm) | 3 in Main Triangle, 1 Under Downtube (56cm & Larger)
• Fender/Rack Mounts: Yes
• Front Derailleur Mount: Braze-On
• Rear Derailleur Hanger: Included
• Model Year: –
• Color: Black
• Weight: 4 lb 5 oz (56cm Frame, Fork, Thru-Axles, Seat Collar, Headset)

Each frameset includes:

• (1) Salsa Warroad Carbon Fiber Frame
• (1) Salsa Warroad Deluxe Carbon Fiber Fork
• (1) Salsa Fork Thru-Axle (M12 x 120mm; Thread Pitch = 1.5, Thread Length =12mm)
• (1) Salsa Rear Thru-Axle (M12 x 167mm; Thread Pitch = 1.5, Thread Length =20mm)
• (1) Cane Creek 40 Headset (Installed)
• (1) Salsa Liplock Seatpost Collar (Installed)
• (1) Derailleur Hanger #465 (Installed)
