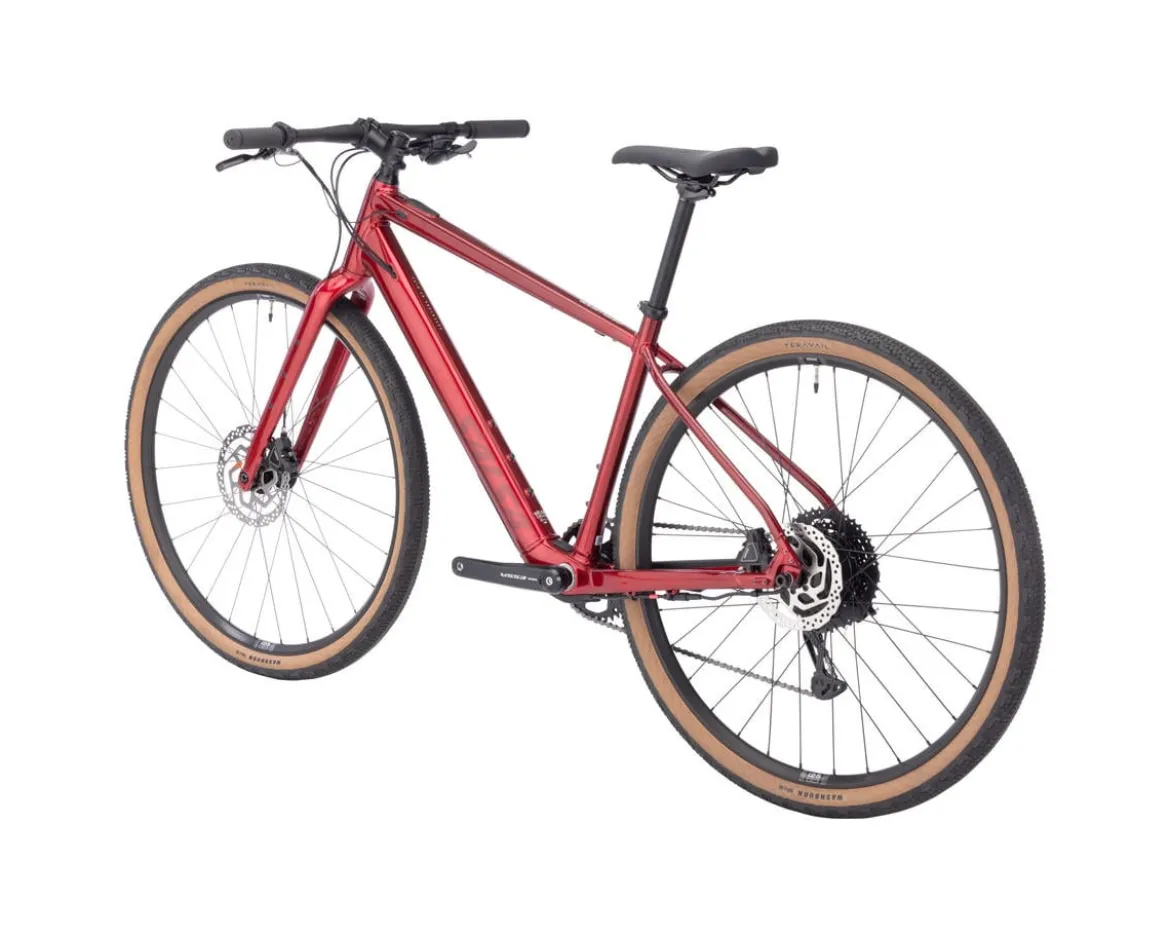

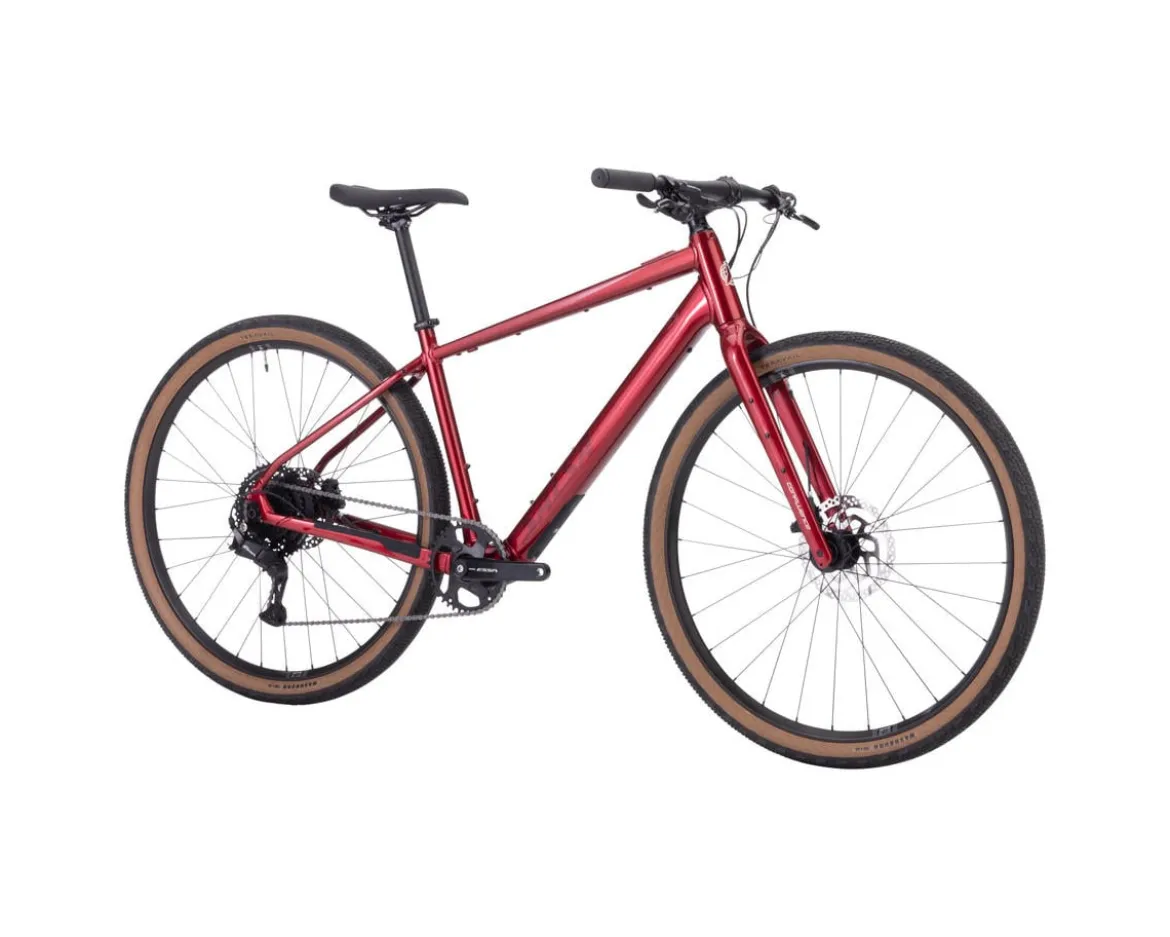

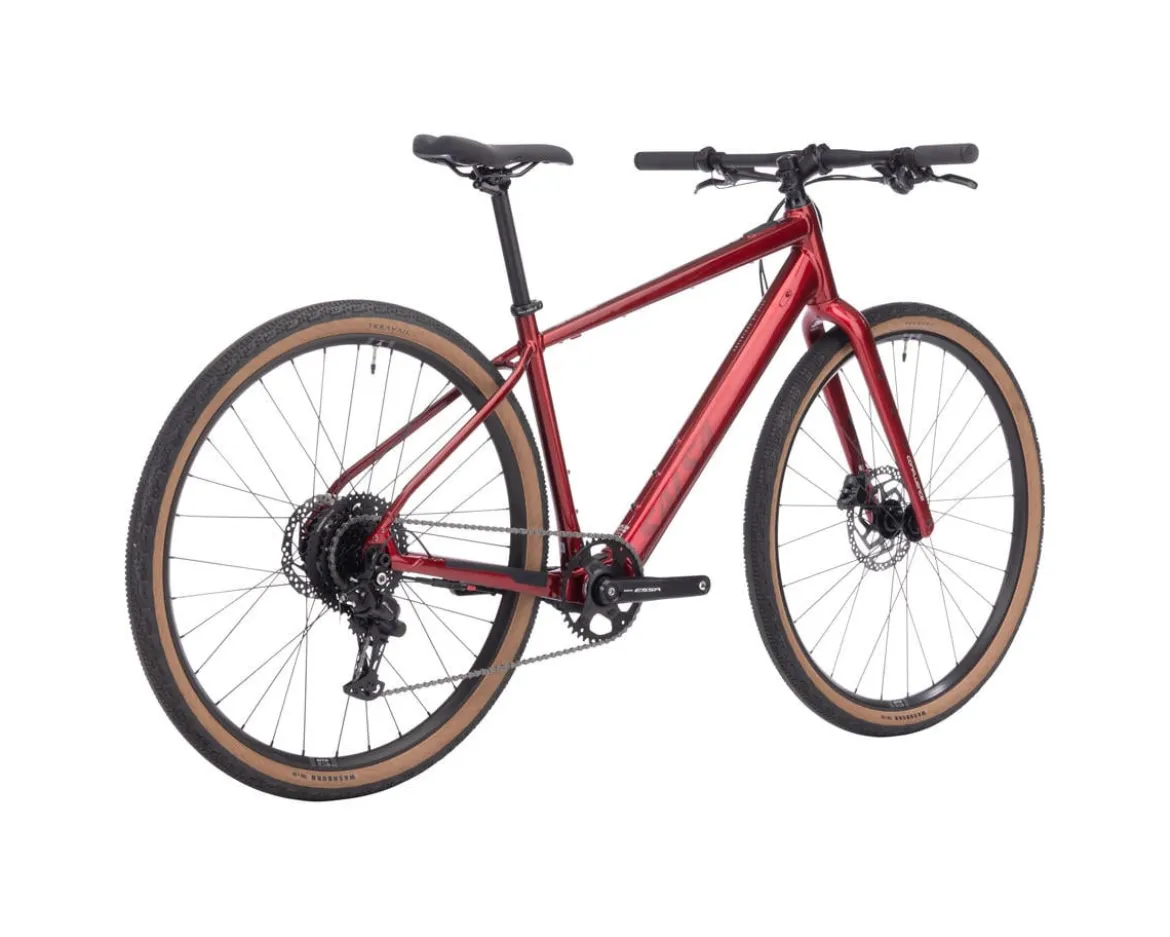

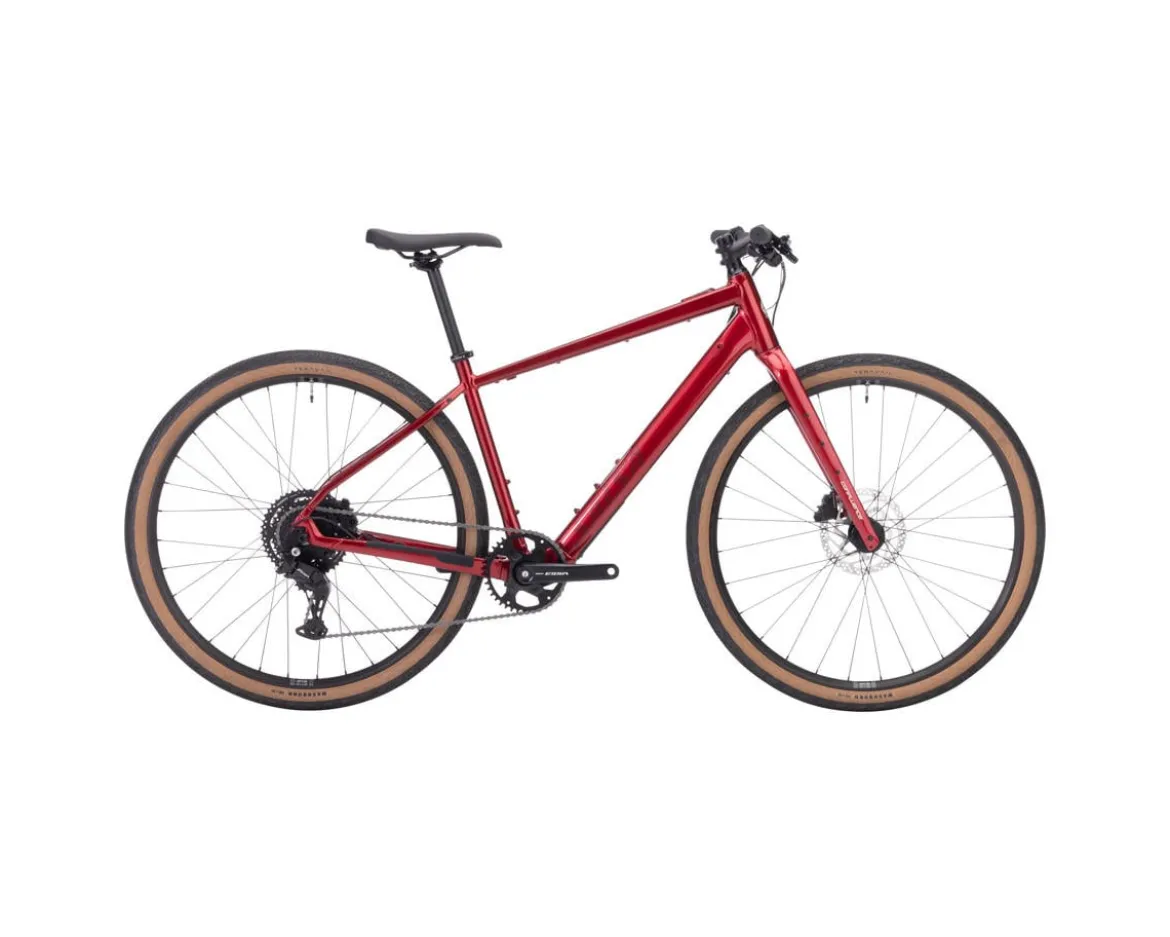

Salsa Confluence Flat Bar Gravel E-Bike (Canyon Red) (XS) (Shimano Essa) (1 x 8-Speed)

Salsa Confluence Flat Bar Gravel E-Bike Description:

The Salsa Confluence Flat Bar Gravel E-Bike is a versatile rig that makes it easier to turn any ride into a fun adventure. The backbone of this e-bike is a light and stiff aluminum frame with a geometry that puts the rider in a comfortable riding position with great stability. Out front, a full carbon fork will reduce vibration and chatter that is transmitted to the rider and is stiff and strong enough to keep the bike pointed in the right direction when hitting a rowdy line on the trails. The frame and fork are adorned with numerous accessory mounts so this versatile e-bike can be outfitted with the gear needed to go anywhere the rider wishes to ride. Additionally, the frame is compatible with suspension forks with up to 40mm of travel and can be outfitted with a dropper-style seatpost should a rider want better control over rougher road and trail surfaces.

Discreetly tucked within the frame is a Mahle X30 rear hub drive motor and a seamlessly integrated downtube battery that delivers enough power to make it feel like you are always riding with a tailwind; this lightweight drive system has vital information displayed and the functionality controlled by a very intuitive handlebar remote and can also be tweaked with the top tube controller. Shimano’s Essa 1 x 8 mechanical drivetrain is called upon to provide crisp and reliable shifting, and Shimano hydraulic disc brakes fitted with large rotors provide reliable braking power in any weather or trail condition. Last but not least, this e-bike is outfitted with sturdy WTB wheels and large volume 700c x 50mm wide Teravail tires so a rider can comfortably and confidently tackle any road or trail they come across.

Note: If more available miles are needed/wanted, a Mahle Smartbike Systems eX1 External Range Extender Battery can be purchased separately to add up to an additional 43 miles of range.

Features:

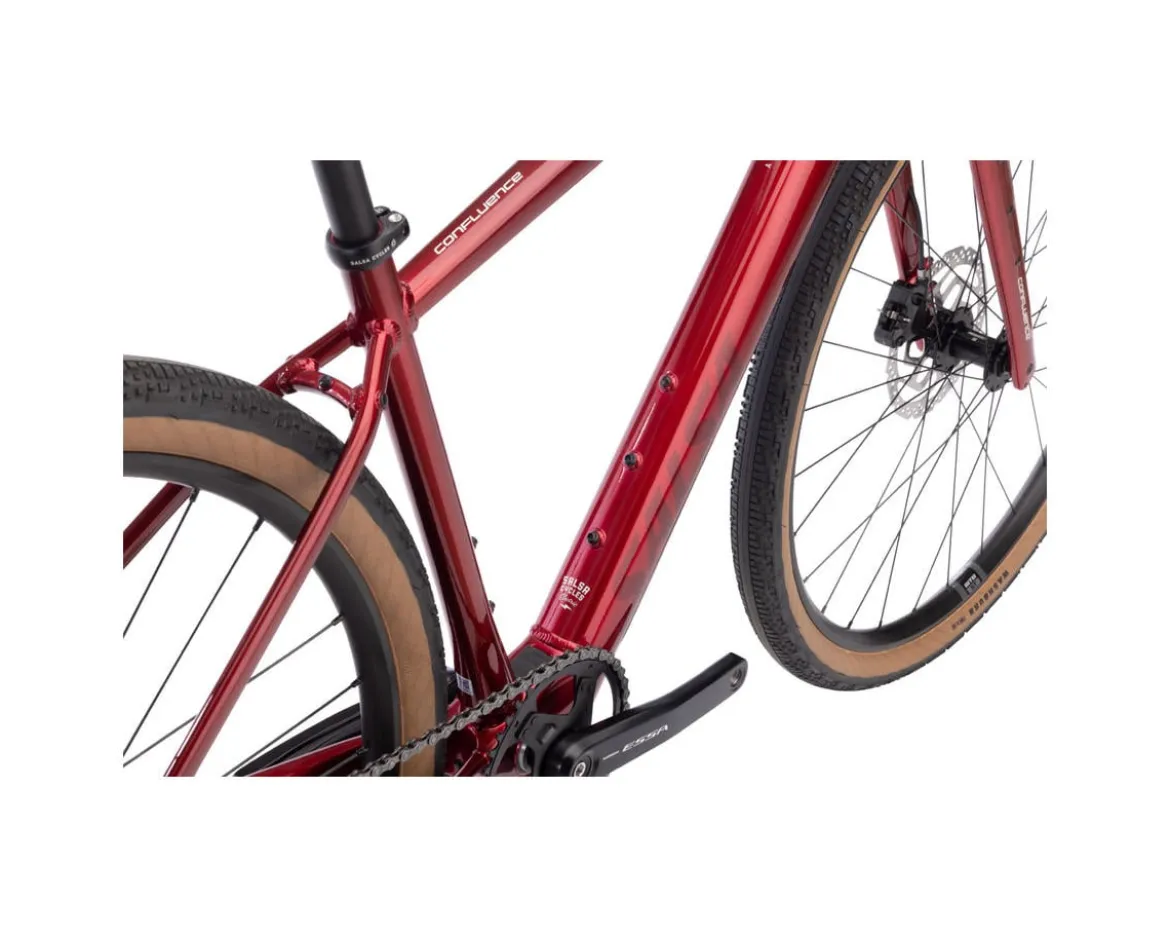

• Salsa Confluence 6061-T6 aluminum frame with flat handlebar specific gravel geometry provides a comfortable seating position and stable handling over any road and/or trail surface
• Salsa Confluence Carbon 2.0 fork is stiff to eliminate high speed wobbles and provide precise handling, and as a bonus it will absorb vibrations to reduce rider fatigue

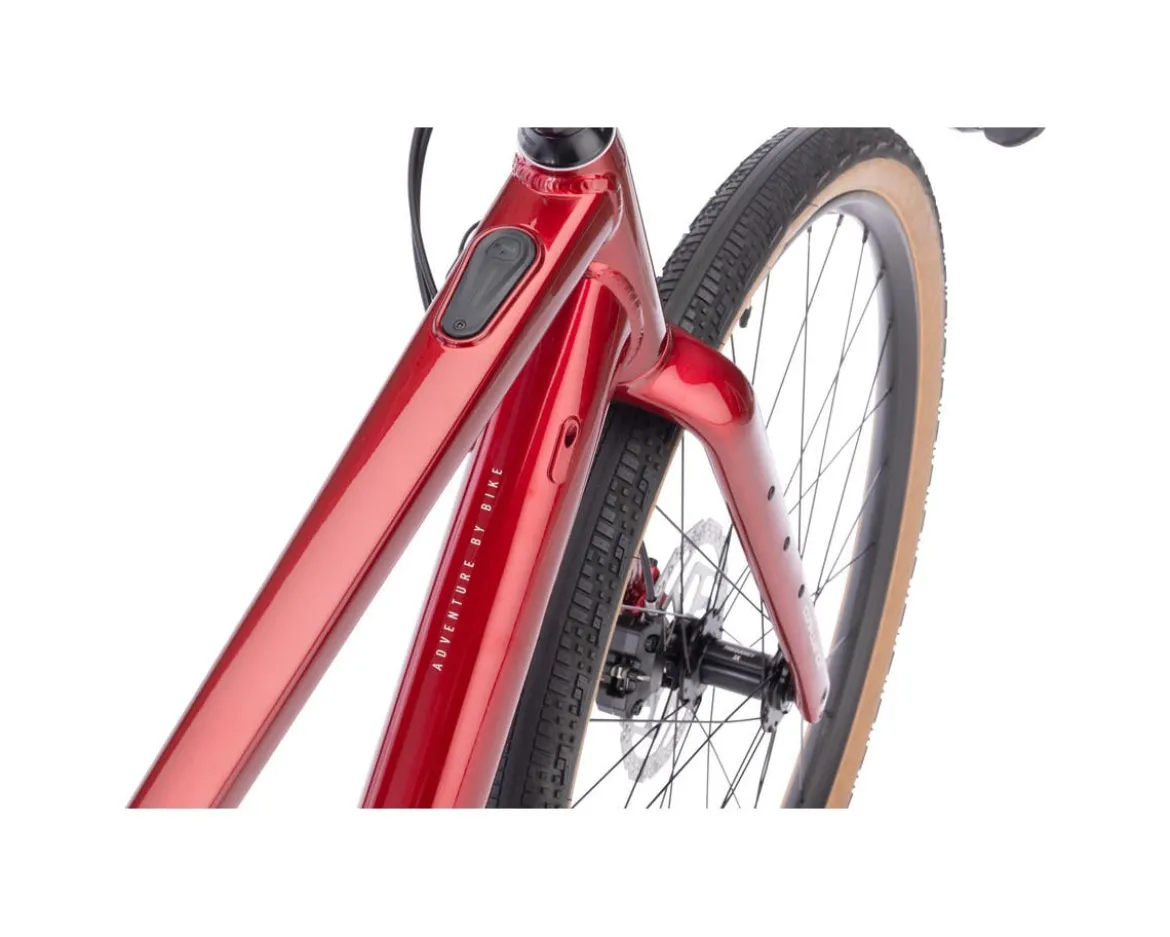

• Fully integrated down tube battery and internal cable routing makes it easier to attach frame bags and delivers a cleaner appearance

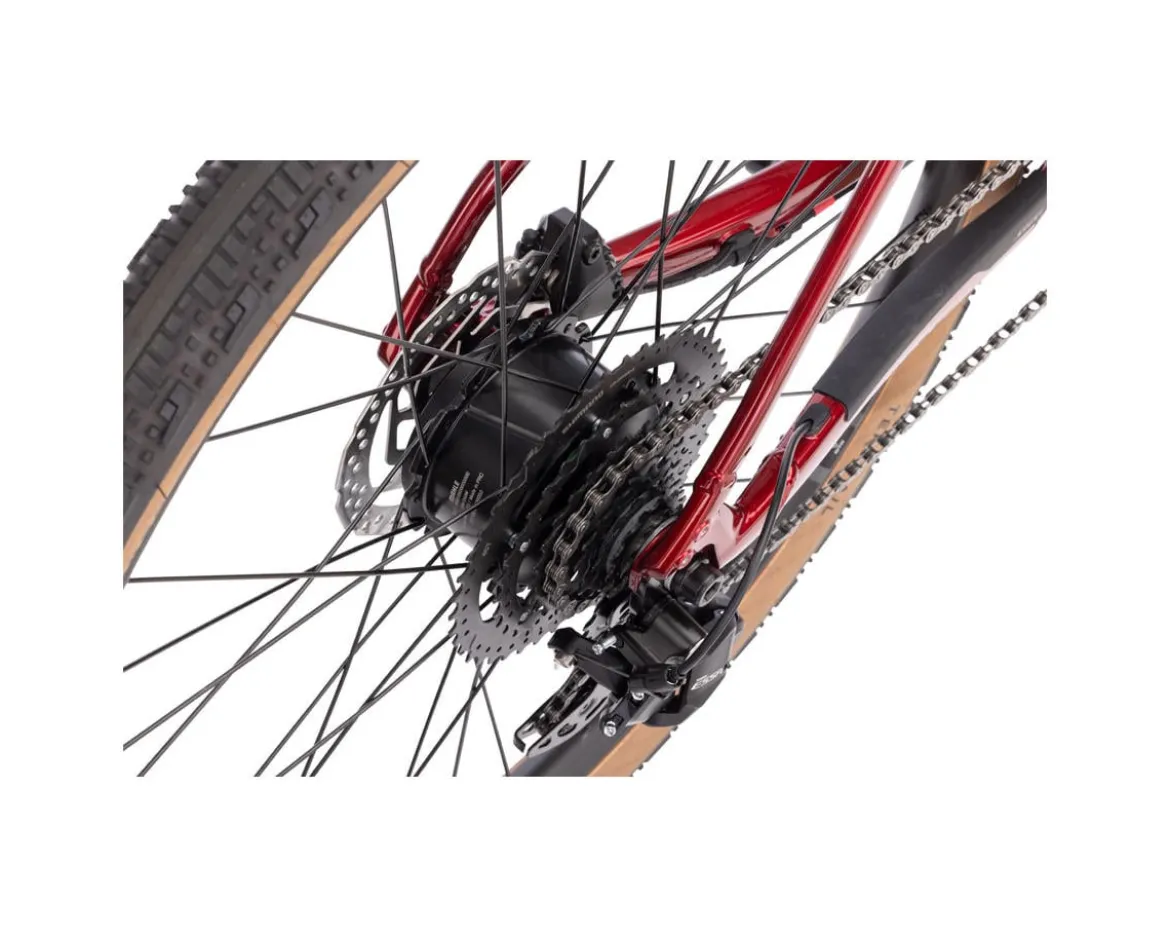

• Mahle X30 Class 1 Rear Hub Drive System is a quiet and lightweight drive unit that delivers speeds up to 20mph and has a range of up to 45miles and 45Nm of torque
• HMI Compact Remote Top Tube Controller displays all relevant info, including the assist level and available battery life, and can wirelessly connect to smart phones or watches and compatible apps
• Mahle’s MySmartBike App allows for performance customization, mapping, performance metrics, and more
• Shimano Essa 1 x 8-speed mechanical drivetrain delivers crisp shifting under power and is very reliable and inexpensive to maintain
• Powerful Shimano hydraulic disc brakes with large rotors (180mm up front and 160mm in back) delivers confident braking power and control for a loaded bike in any weather
• Generous tire clearance comfortably allows 700c x 50mm wide tires without fenders or up to 700c x 42mm wide tires when the bike is equipped with full fenders
• Compatible with internally routed dropper seatposts and suspension forks with up to 40mm of travel for riders looking for better comfort and control over rowdy roads and technical trails
• Frame is equipped with rack, fender, and bottle cage mounts, and the fork has 3-pack mounts that fit Salsa’s EXP Series Anything Cage HD or extra water bottle cages for additional cargo carrying capacity
• Meets UL 2849 and UL 2271 safety certifications

Specifications:

• Frame: Salsa Confluence 2.0 (6061-T6 Aluminum) (Threaded Bottom Bracket) (Dropper Seatpost Compatible) (Fender/Rack Mounts) (10 x 135mm Rear Spacing)
• Fork: Salsa Confluence Carbon 2.0 (Tapered Steerer Tube) (12 x 100mm)
• Headset: FSA; IS41/28.6 (Upper) | IS52/40 (Lower)
• Handlebar: Salsa Salt Flat (6061-T6 Aluminum) (6° Upsweep) (11° Backsweep) (31.8mm)
• Grips: Velo
• Stem: Salsa Guide
• Shift Levers: Shimano Essa M315-8R (1 x 8-Speed)
• Brake Levers: Shimano MT200 (Hydraulic Disc)
• Brake Calipers: Shimano MT201 (Hydraulic Disc)
• Rotors: Shimano RT26 (6-Bolt) (180mm – Front) (160mm – Rear)
• Front Derailleur: –
• Rear Derailleur: Shimano Essa U2000

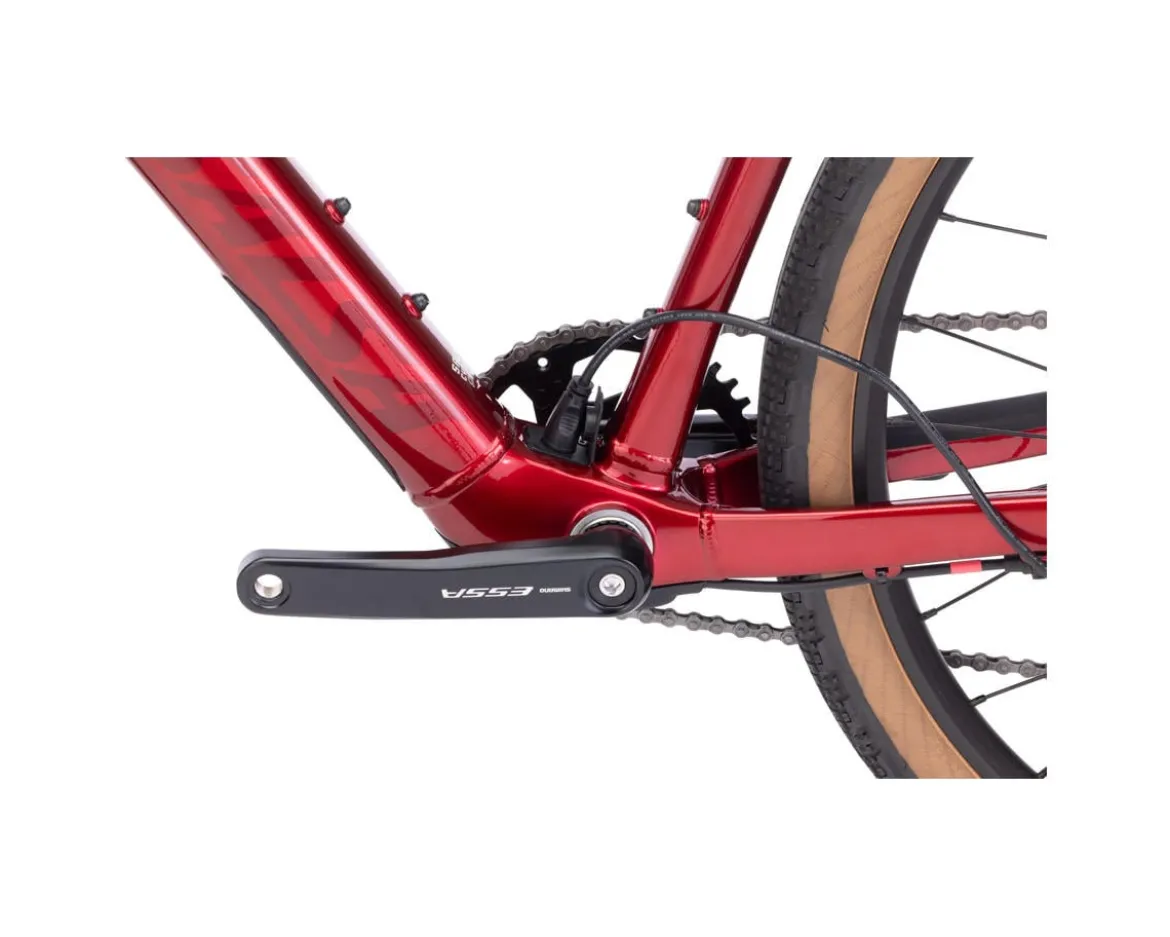

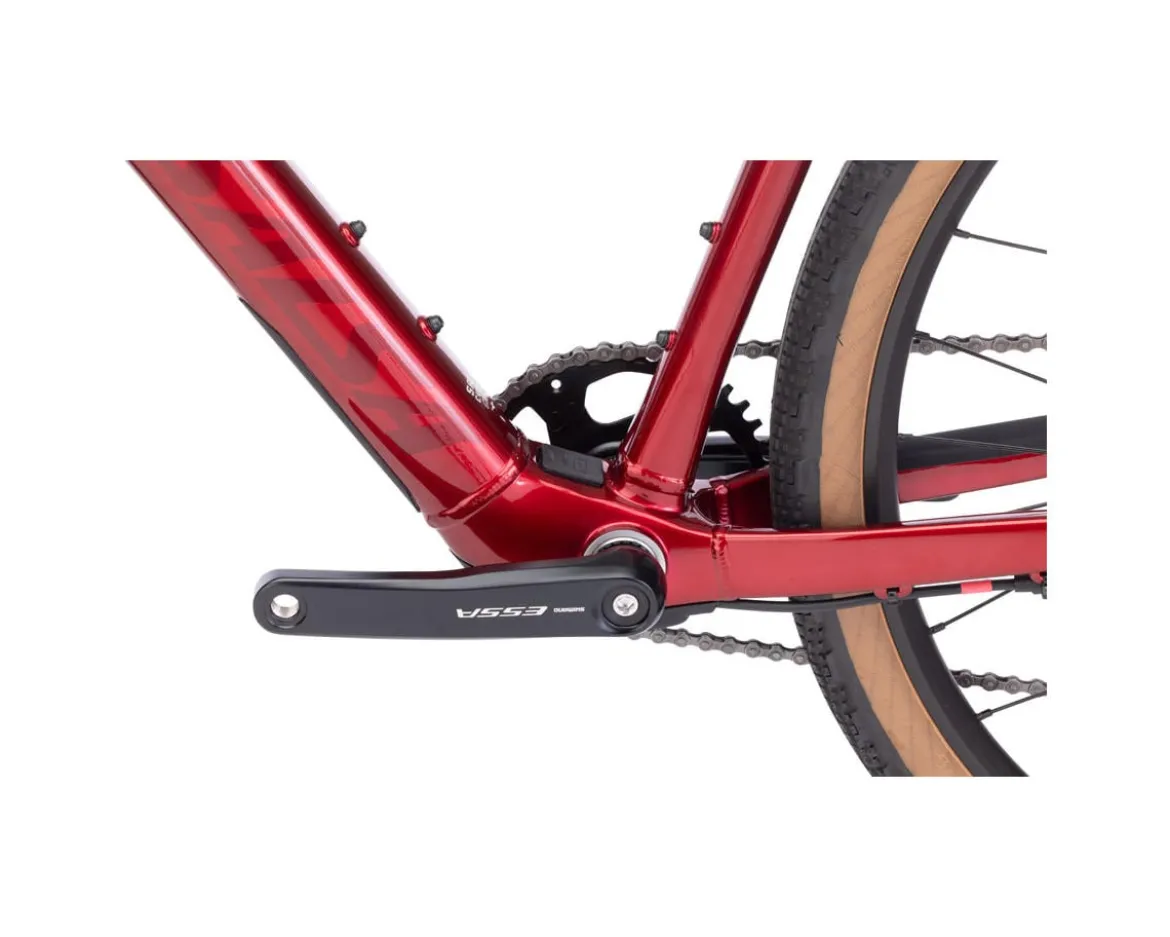

• Crankset: Shimano Essa U2000 (40T)
• Bottom Bracket: Shimano BSA (68mm)
• Cassette: Shimano HG300 (8-Speed) (11-45T)
• Chain: KMC (8-Speed)
• Pedals: –
• Saddle: WTB Volt
• Seatpost: Promax Alloy (27.2mm) (12mm Offset)
• Front Wheel: WTB ST i25 Rim (32H) (25mm Internal Width) (Tubeless Ready) (WTB Hub) (6-Bolt) (12 x 100mm)
• Rear Wheel: WTB ST i25 Rim (32H) (25mm Internal Width) (Tubeless Ready) (Mahle X30 Rear Hub/Drive Motor) (6-Bolt) (10 x 135mm Bolt-On)
• Tires: Teravail Washburn (Wire Bead) (700 x 50mm)
• Motor: Mahle X30 Class 1 Hub Drive System (3-Assist Levels) (up to 45Nm Drive Torque)
• UI/Remote: HMI Compact Remote Top Tube Controller (% Remaining Charge) (Assist Adjustment) (ANT+/Bluetooth Connectivity) (Mahle Handlebar Remote)
• Battery: Mahle iX2 (Lithium-Ion) (Integrated Downtube) (237Wh)
• Charger: Mahle X20 Smart Charger (4A)
• Model Year: 2026
• Color: Canyon Red
• Weight: –
