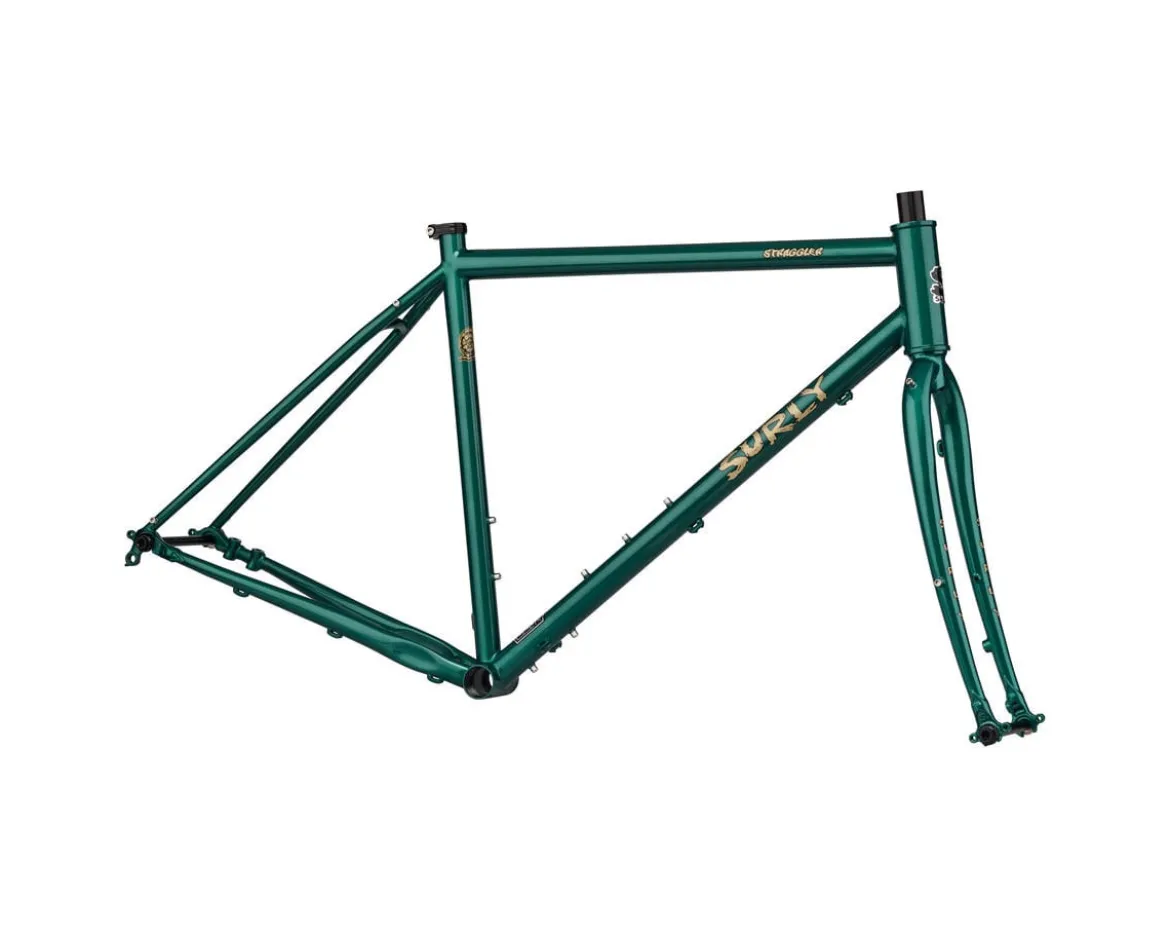

Surly Straggler Steel Gravel Frameset (Subtropic Algae) (650b) (49cm)

Surly Straggler Steel Gravel Frameset Description:

The Surly Straggler Gravel Frameset inherits worthwhile refinements from Surly following a decade dedicated to learning what inspires resplendent riding on unpaved terrain. This edition of The Straggler emerges with a dialed-in fit range and comfortable geometry, ready to roll with thru-axle wheels, modern flat-mount controls, and zero ego. It’s a bike down for a lot of stuff, but it really shines when it’s kicking up dust to help you blow off some steam and get back to those dirt roots. No more missed opportunities or dead ends– the Straggler’s taking every rowdy detour or weekend rendezvous it can get. It’s the ultimate day-tripper, cross-terrain explorer, and boundary-pusher, ready to plow through challenges, not obstacles. Straggler’s capabilities extend into some light cargo setups, so riders can do double-duty when hitting the trails and running around town.

Features:

• Available in 650b (49-52cm) and 700c (54-64cm) wheel diameters for optimum rider fit
• Racks and fender mounts, plus two standard and one three-pack bottle mounts on all frames

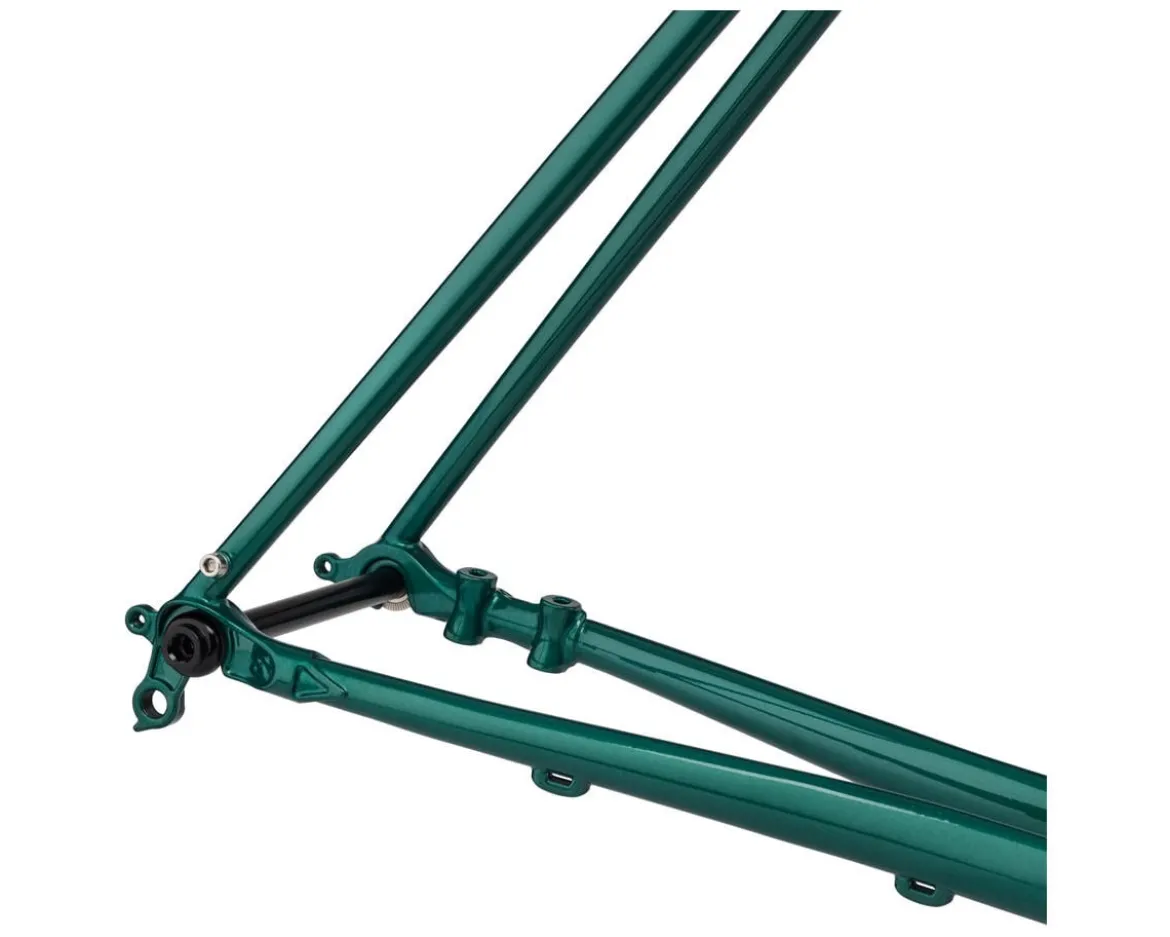

• Updated thru-axle dropouts for improved stiffness and handling

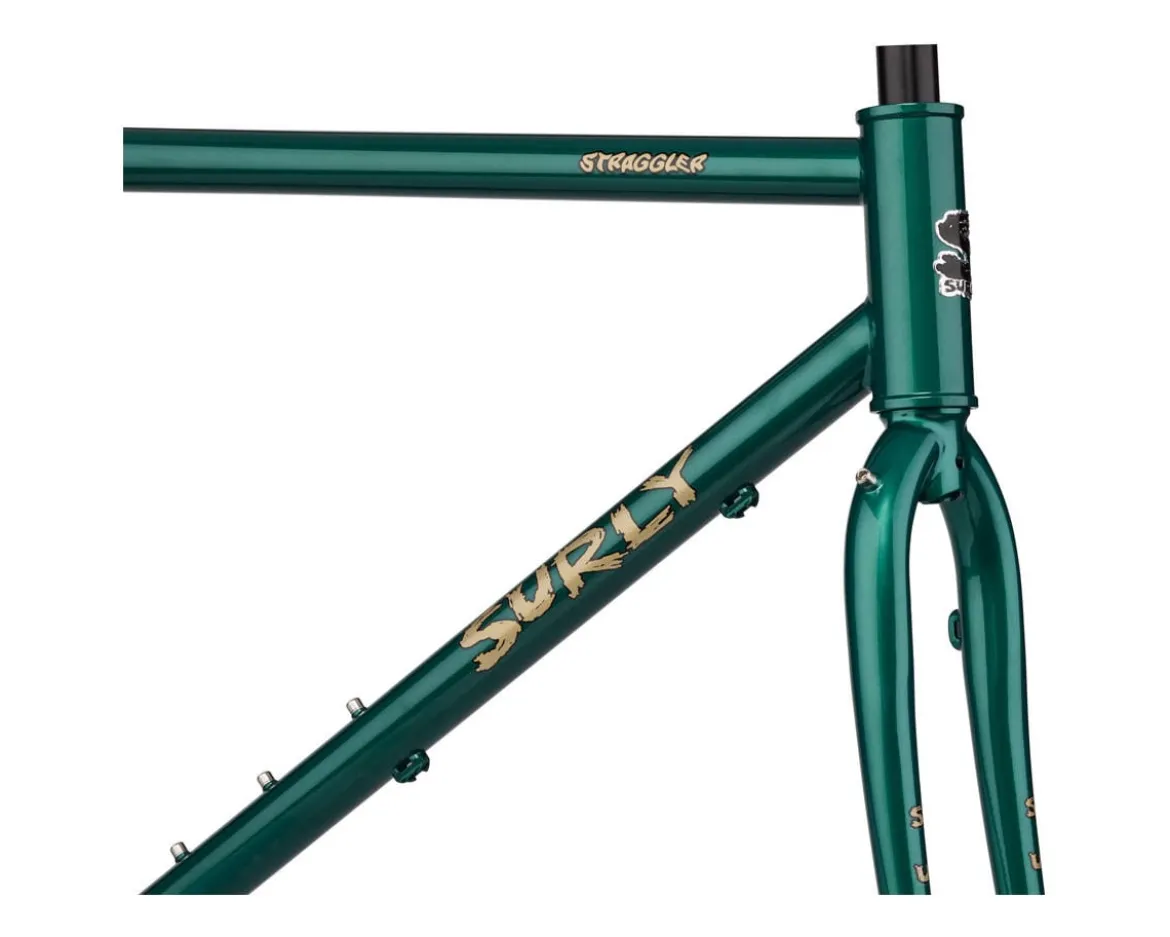

• Modern flat-mount brake mounts, internal dropper routing, and 44mm headtube
• 50mm tire clearance w/o fenders on 700c for confident, comfortable riding on eroded terrain

Specifications:

• Frame Material: Natch Tubing, 4130 Chromoly, TIG welded (Double-Butted Main Triangle)
• Fork Material: Natch Tubing, 4130 Chromoly, TIG welded
• Headset: Not Included
• Headset Size: ZS44/28.6 (Upper), EC44/30 (Lower) (Tapered) (1-1/2” to 1-1/8”)
• Brake Compatibility: Disc Only (Hydraulic or Mechanical
• Brake Mounts: Flat Mount
• Rotor Compatibility: 140 or 160mm (Front), 160mm (Rear)
• Axle Type: Thru Axle
• Hub Spacing: 12 x 100mm (Front), 12 x 142mm (Rear)
• Stem: Not Included
• Stem Size: 1-1/8″ Steerer
• Seatpost: Not Included
• Seatpost Diameter: 27.2mm
• Seatpost Clamp: Included (Alloy) (28.6mm)
• Bottom Bracket: Not Included

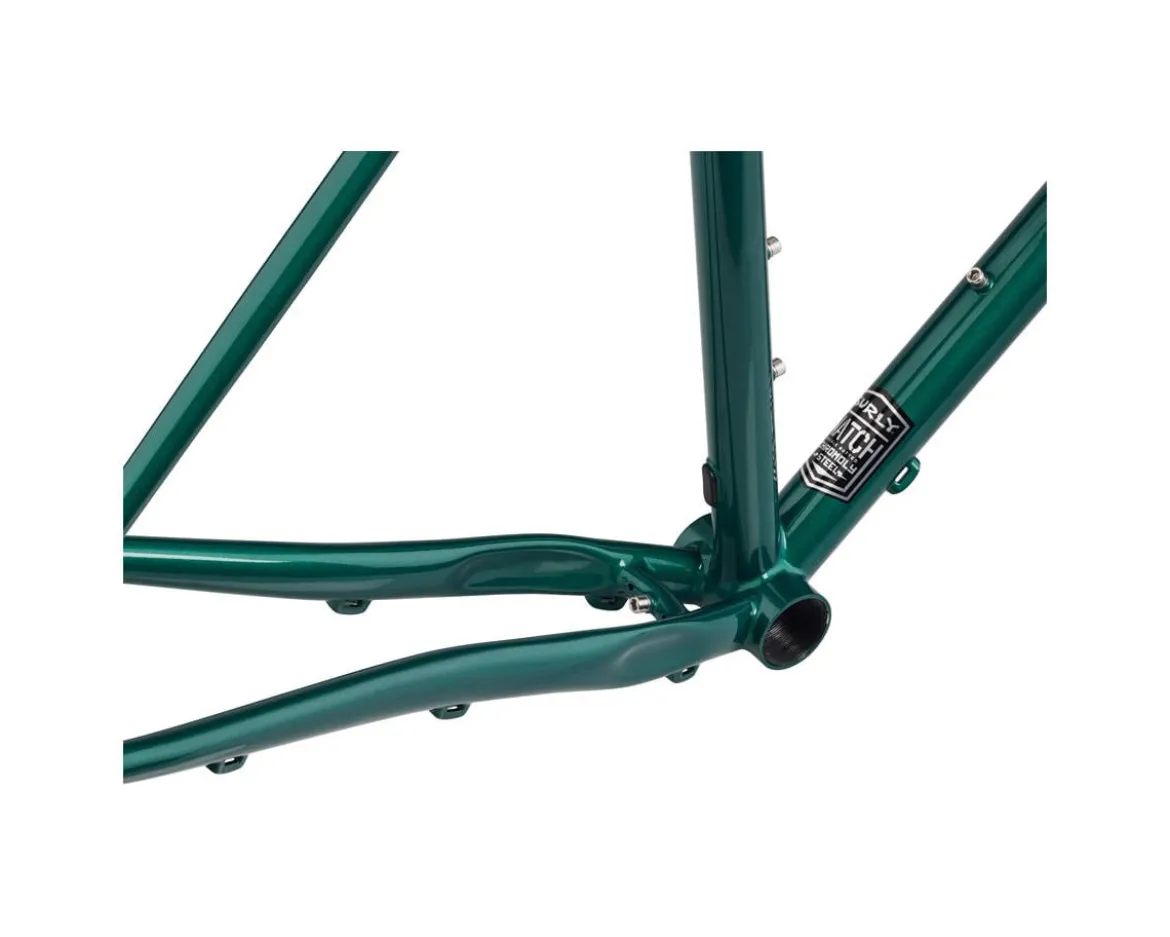

• Bottom Bracket Type: Threaded BSA
• Bottom Bracket Width: 68mm
• Drivetrain Compatibility: 1x Electronic & Mechanical, 2x Electronic & Mechanical
• Chainring Compatibility: (Single ring) 47mm chainline crankset: 46T (Double ring) 47mm chainline crankset: 50/34T
• Tire Clearance: Size 46–52: 650b x 47mm (w/ fenders), 700c x 32mm (w/ fenders)
• Cable Routing: External
• Dropper Post Routing: Yes
• Water Bottle Bosses: 3 Mounting Positions (Seattube, Downtube Top, Downtube Bottom)
• Fender/Rack Mounts: Yes
• Front Derailleur Mount: 31.8mm Clamp
• Rear Derailleur Hanger: Included
• Model Year: 2025
• Color: Subtropic Algae
• Weight: 9 lb 1 oz (56cm) with seat collar, and front/rear thru-axles
