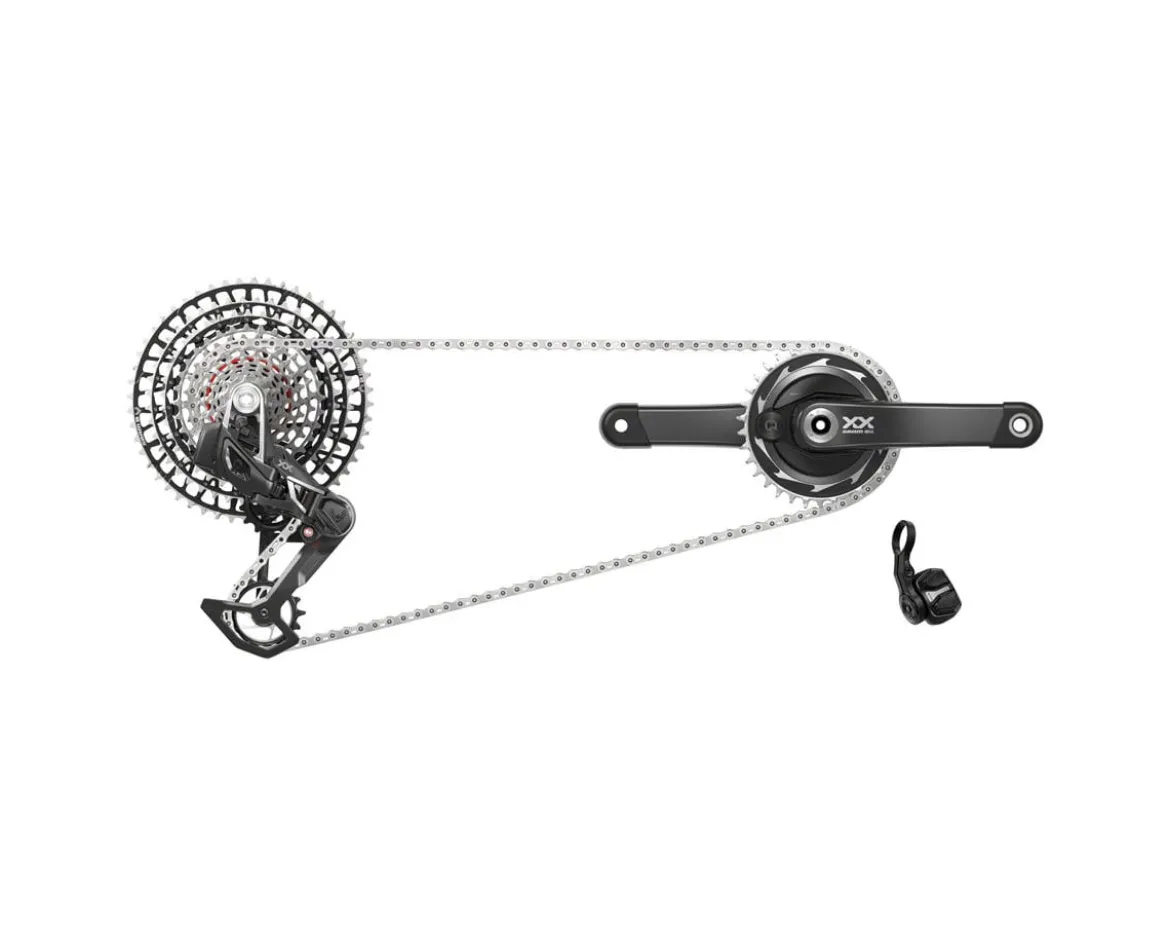

SRAM XX SL Eagle Transmission AXS Power Meter Groupset (Black/Silver) (T-Type) (175mm) (34T) (1 x 12 Speed) (DUB) (55mm Chainline) (UDH)

SRAM XX SL T-Type Eagle Transmission Power Meter AXS Groupset Description:

SRAM is dedicated to perfecting the 1x Eagle Drivetrain. The Eagle Transmission integrates the frame, wheel, and drivetrain for optimum stiffness to bring advanced shifting performance. This approach to mountain bike drivetrains sets the bar for how shifting should be.

Eagle Transmission has been designed and engineered for the world’s most demanding riders. Built around the universal constant; the wheel axle. By integrating the derailleur directly into the frame using UDH technology, the result makes for an incredibly strong, fully integrated wireless transmission that literally changes how we ride. The robust design increases the lifespan of the components while shifting flawlessly under maximum power. SRAM recognized the weakest parts of the derailleur and eliminated them. Without a hanger, limit, or finicky b-screws, set up is a breeze. A truly set it and forget it system.

The SRAM XX SL Power Meter Transmission Groupset is the lightest offering within the Eagle Transmission lineup. Designed for the XC racer or a shorter travel trail bike when weight savings is a top priority. Integrating the Power Meter into the spider makes for the most accurate, lightweight system to deliver live accurate data to any compatible head unit. The dual-sided power measurement system calculates total watts for high performance without compromise, giving you an edge over the competition.

Note * The SRAM Eagle Transmission Groupsets are only compatible with frames that are equipped with the UDH “Universal Derailleur Hanger” technology. To check for frame compatibility, head over to SRAM’s UDH Frame Compatibility Finder Tool.
Note ** Eagle Transmission components (derailleur, chain, cassette, and cranks) are not cross-compatible with other SRAM groups.

Features:

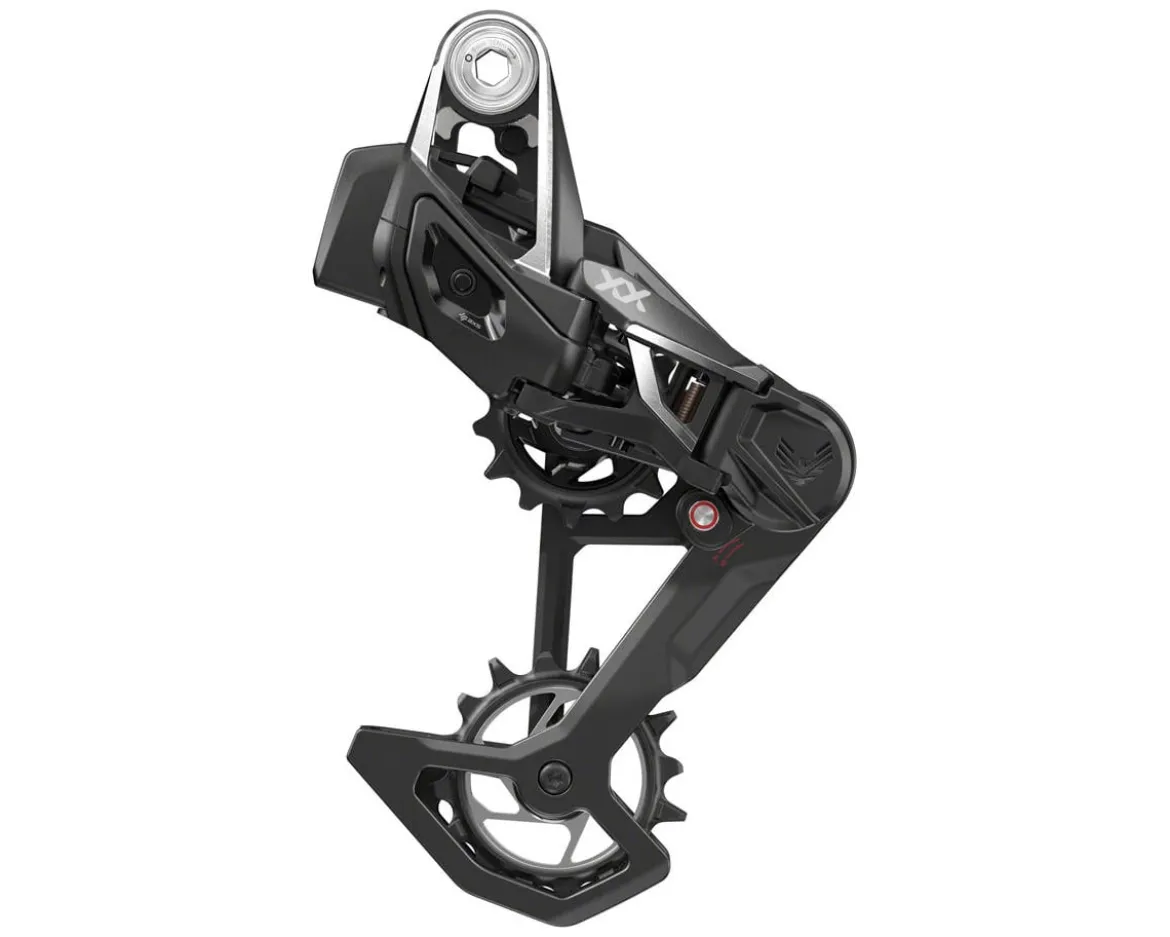

• XX SL T-Type Derailleur:
• Hangerless interface, fully mounts directly to the frame around the wheel axle itself
• Super strong, super light, unrivaled shifting performance
• Chain management features
• Magic Wheel will keep spinning if an object becomes lodged in the lower pulley wheel
• Overload Clutch protects the derailleur when rocks and trail debris hit the derailleur
• AXS Pod Controller:
• Light weight, highly adaptable ergonomics, and adjustability with a premium finish
• “Click and Fire” two-button design
• Paddles can be personalized for complete customization via the AXS App
• Deluxe version allows for interchangeability, choose from concave or convex buttons

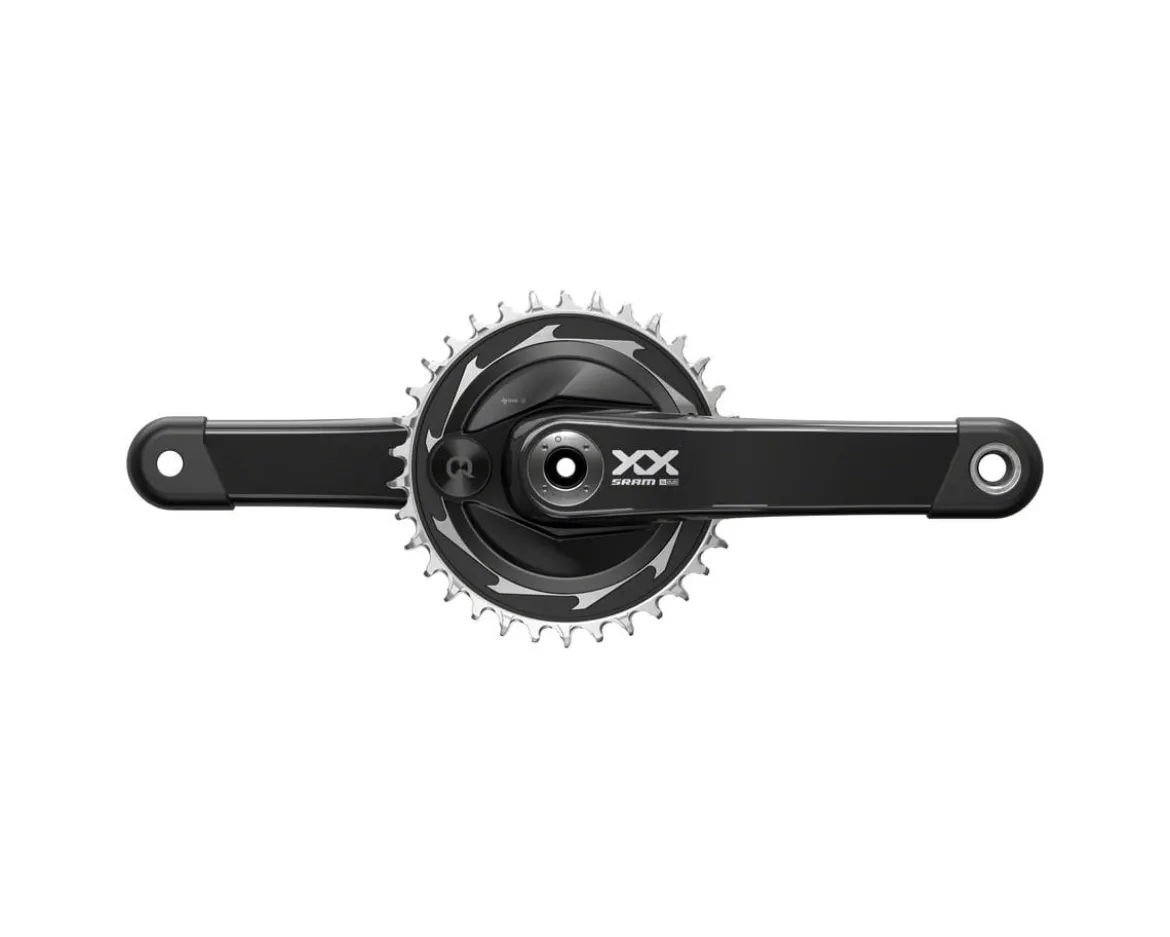

• XX SL Eagle Power Meter Crankset:
• Ultra-strong, incredibly light hollow-core carbon fiber design
• SRAM lightest crank yet
• DUB technology adds durability and simplicity
• Dual sided integrated Power Meter for accurate data readings
• MagicZero – automatically checks and recalibrates power meter on the fly
• 200-hour battery life with an easily replaceable design
• AxCad – cadence data delivered without the need for a magnet

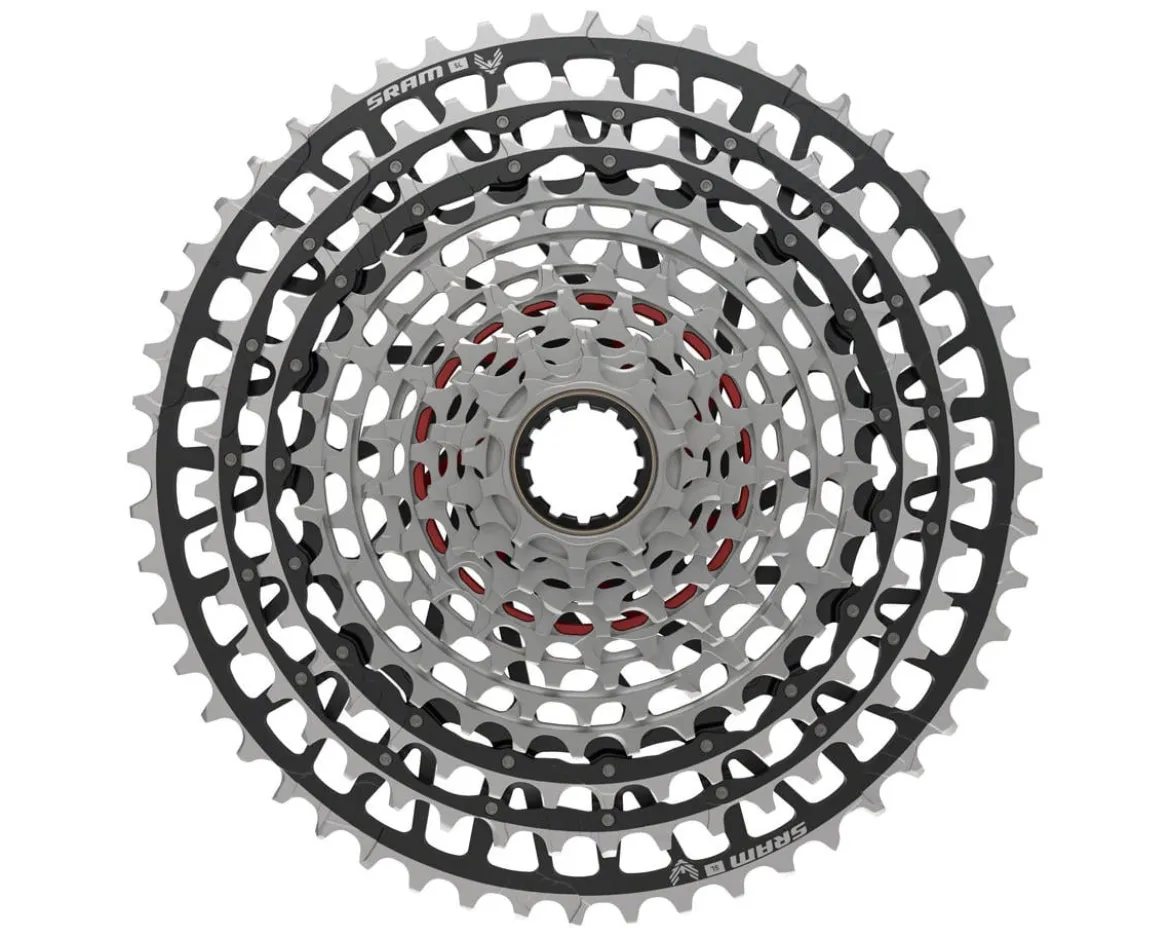

• XX SL Eagle T-Type Cassette:
• Ultra-lightweight, all-aluminum Spider Cog
• Full X-SYNC for the best possible inboard and outboard shifting performance under load
• Optimized gear steps on low end
• 55mm chain line compatibility for more moderate chain angle, longer wear, and greater precision
• Setup Cog for fool-proof set up
• XD driver body compatible
• T-Type Chain Features:
• Flattop
• Super-light out plates with cut-out design for most possible weight savings
• AXS Transmission compatible only
• Not suitable for E-Bike use

Specifications:

• Speed: 1 x 12 Speed
• Shifter Compatibility: AXS Transmission
• Shift Mechanism: Electronic (Wireless)
• Max Cog: 52T
• Bottom Bracket Compatibility: SRAM DUB (BB not included)
• Chainline: 55mm
• Chainring: 34T (T-Type) (Direct Mount)
• Crank Material: Carbon
• Power Meter Type: Spider
• Connectivity: SRAM AXS, Bluetooth, ANT+
• Drive Type: SRAM XD
• Cassette: 10-52T
• Color: Black/Silver
• Weights:
• Derailleur: 440g
• Pod Controller: 48g
• Crankset: 535g
• Cassette: 345g
• Chain: 240g

Includes:

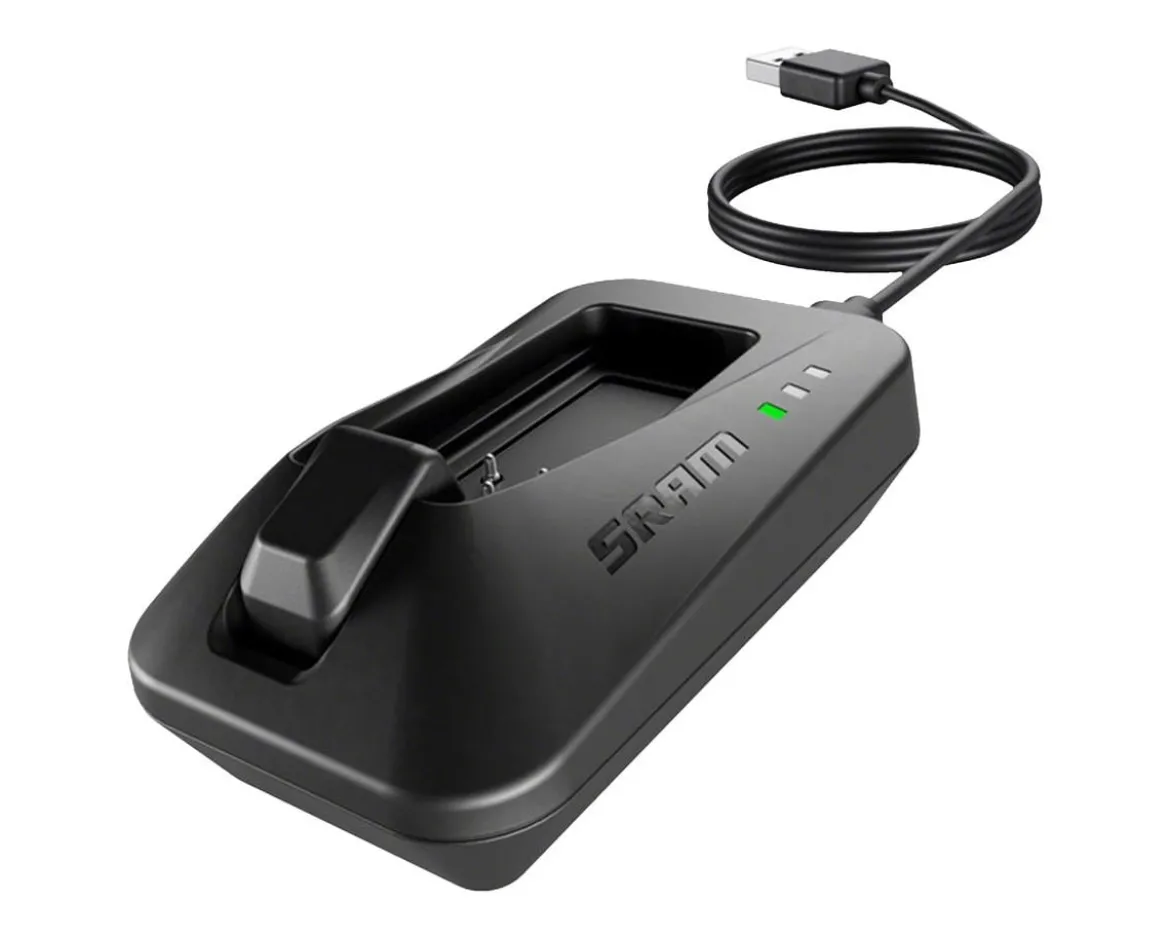

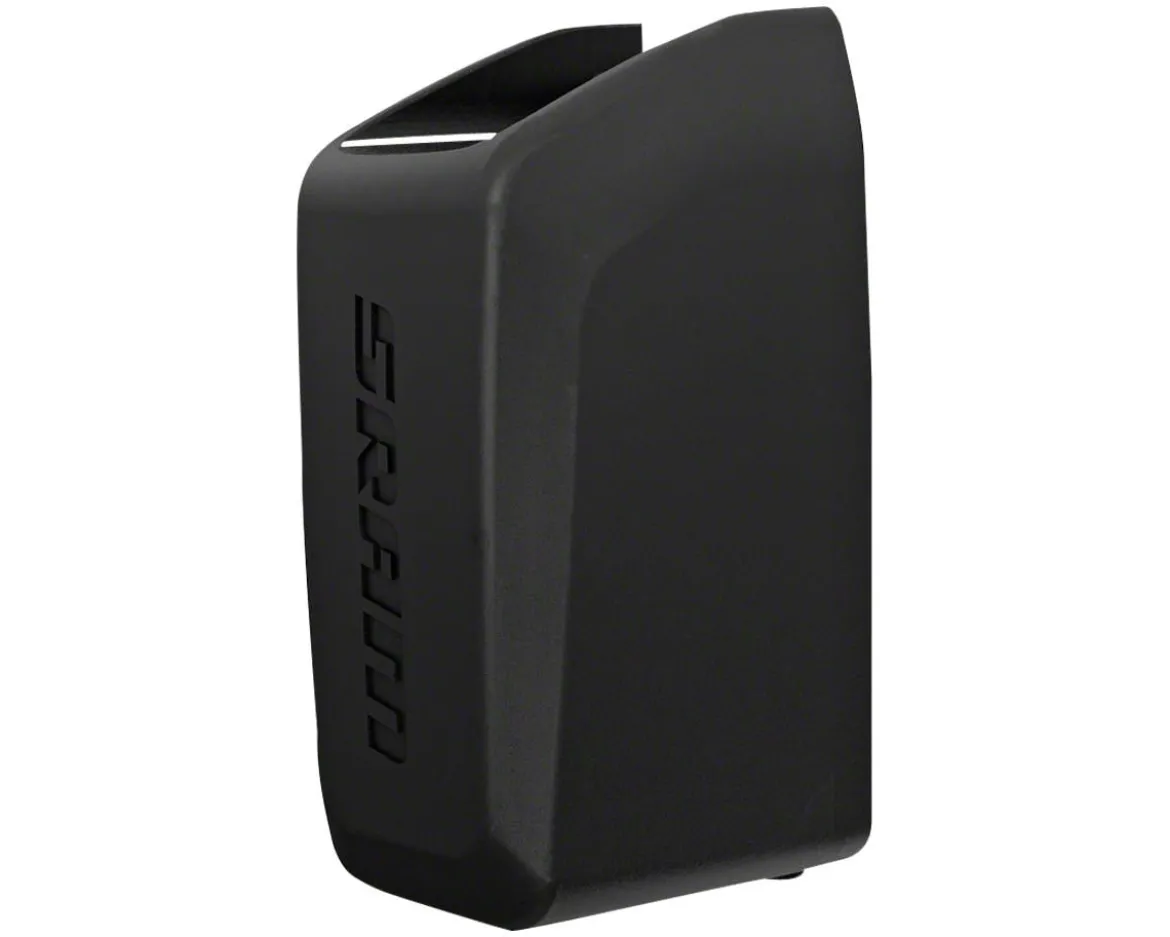

• AXS Transmission Derailleur w/ Battery, Charger and Cord
• AXS Transmission Crankset and T-Type Chainring
• AXS XD Transmission Cassette
• AXS Pod Controller
• AXS Transmission T-type Flattop Chain
• SRAM Chain sizing guide
