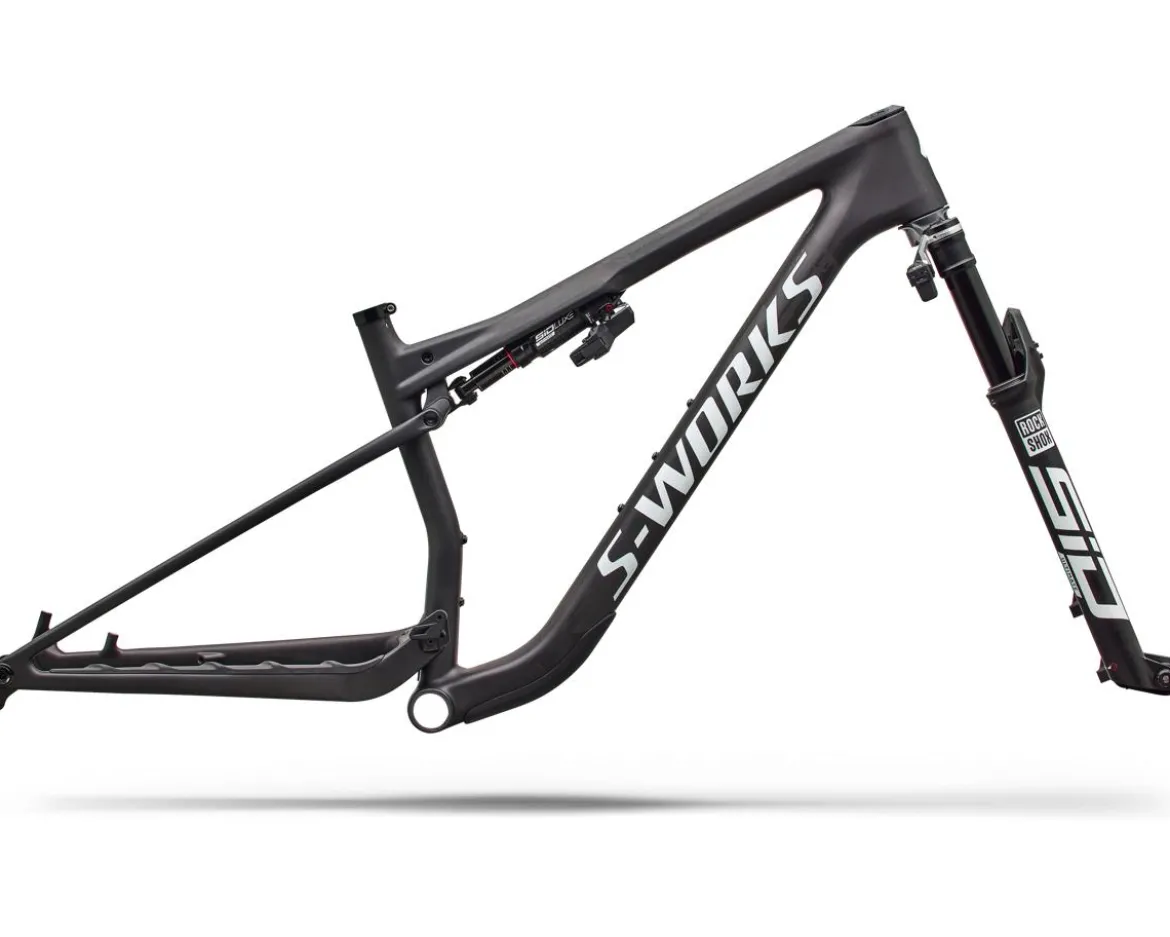

Specialized S-Works Epic 9 Frameset (Satin Carbon/Metallic White Silver) (S)

Specialized S-Works Epic 9 Frameset Description:

The Specialized S-Works Epic 9 uses decades of full suspension development to produce a very capable and ridiculously fast mountain bike. Starting with the FACT 12M full carbon frame and swing arm, the engineers at Specialized replaced the integrated SWAT downtube storage with a removable SWAT Box and optimized the construction of the bottom bracket, seat tube, and linkages to shave weight where they could while actually improving the stiffness and durability of the front triangle. They also refined the geometry to improve the rider’s ability to generate power and to create a balanced riding position, and flip chips within the rear suspension allows the ability to fine tune the bottom bracket clearance and handling characteristics. The suspension guru’s then went to work to revise the suspension kinematics to reduce friction throughout the system, which makes it easier for the Ride Dynamics optimized RockShox SIDLuxe Ultimate rear shock to match the buttery smooth suspension travel of the RockShox SID Ultimate suspension fork up front. Combine the amazing S-Works Epic 9 frame with your preferred drivetrain and cockpit selection, and the result is an integration of performance that will enable the rider to reach their full potential on the race track and trails.

Features:

• Innovative carbon fiber full suspension XC/Downcountry framset and fork with SRAM/RockShox Flight Attendant wireless remote damping control
• Progressive XC geometry uses lessons learned through decades of biomechanical research, bike fittings, and the feedback from sponsored/professional racers to put the rider in a very powerful and balanced riding position
• Flip Chip in the rear suspension design allows the geometry of the bike to be tailored to suit the performance preferences of the rider and/or to be optimized for different trail conditions
• Refined kinematics offers significantly less friction within the suspension system for improved efficiency, faster suspension bump reactions leading to improved capability, and more speed for each watt pushed through the pedals
• Optimizing the bottom bracket, shock linkage design, using lighter hardware, and size optimized seattube designs contribute to removing approximately 206 grams off of an already lightweight S-Works specific FACT 12m full carbon frame and rear swingarm
• Included SWAT Box 2.0 provides cargo room for nutrition, flat repair material, or other essentials, and when bolted on it lowers the bikes center of gravity for better control and handling
• 120mm front and rear suspension travel confidently conquer XC/XCO race tracks and technical “down-country” trails
• SID Ultimate w/Flight Attendant and Ride Dynamics designed 3-position settings includes a wireless remote operation for dual remote control of front and rear shocks
• RockShox SIDLuxe Ultimate w/Flight Attendant has a Ride-Dynamics rear shock tune that also offers 3 distinct settings: Wide Open for downhill schenanigans, Magic Middle for optimal efficiency and pedaling performance over most terrain, and Sprint-On-Lock for climbing and the finishing sprint to the line

Specifications:

• Frame: S-Works FACT 12m Carbon (Progressive XC Race Geometry) (Rider-First Engineered) (Internal Cable Routing) (Optimized For Wireless Drivetrain) (Threaded BB) (12x148mm) (UDH hanger) (120mm Travel)
• Fork: SID Ultimate w/Flight Attendant (120mm Travel) (Ride Dynamics 3-Position)(Debon Air) (44mm Offset) (15x110mm)
• Rear Shock: RockShox SIDLuxe Ultimate w/Flight Attendant(120mm Travel) (Ride Dynamics 3-Position) (Solo Air) (190x45mm)
• Headset: Included
• Headset Size:(Tapered) (1-1/2” to 1-1/8”)
• Brake Compatibility: Disc Only
• Brake Mounts:Post Mount
• Rotor Compatibility: 160 or 180mm (Front), 140 or 160mm (Rear)
• Axle Type: Thru Axle
• Hub Spacing: 12 x 100mm (Front), 12 x 148mm (Rear)
• Stem: Not Included
• Stem Size: 1-1/8″ Steerer
• Seatpost: Not Included
• Seatpost Diameter:30.9mm
• Seatpost Clamp: Included (Alloy) (34.9mm)
• Bottom Bracket: Not Included
• Bottom Bracket Type: Threaded BSA
• Bottom Bracket Width:73mm
• Drivetrain Compatibility: 1x Electronic
• Chainring Compatibility: Fits common XC 1x chainrings
• Tire Clearance:29 x 2.4″
• Cable Routing: Internal
• Dropper Post Routing: Yes (Mechanical port on top of downtube)
• Water Bottle Bosses:2 Mounting Positions (Seattube, Downtube)
• Fender/Rack Mounts: No
• Front Derailleur Mount:–
• Rear Derailleur Hanger: Included (SRAM UDH)
• Model Year: 2027
• Color: Satin Carbon/Metallic White Silver
• Weight: 7 lb, 11.1 oz) (M)
