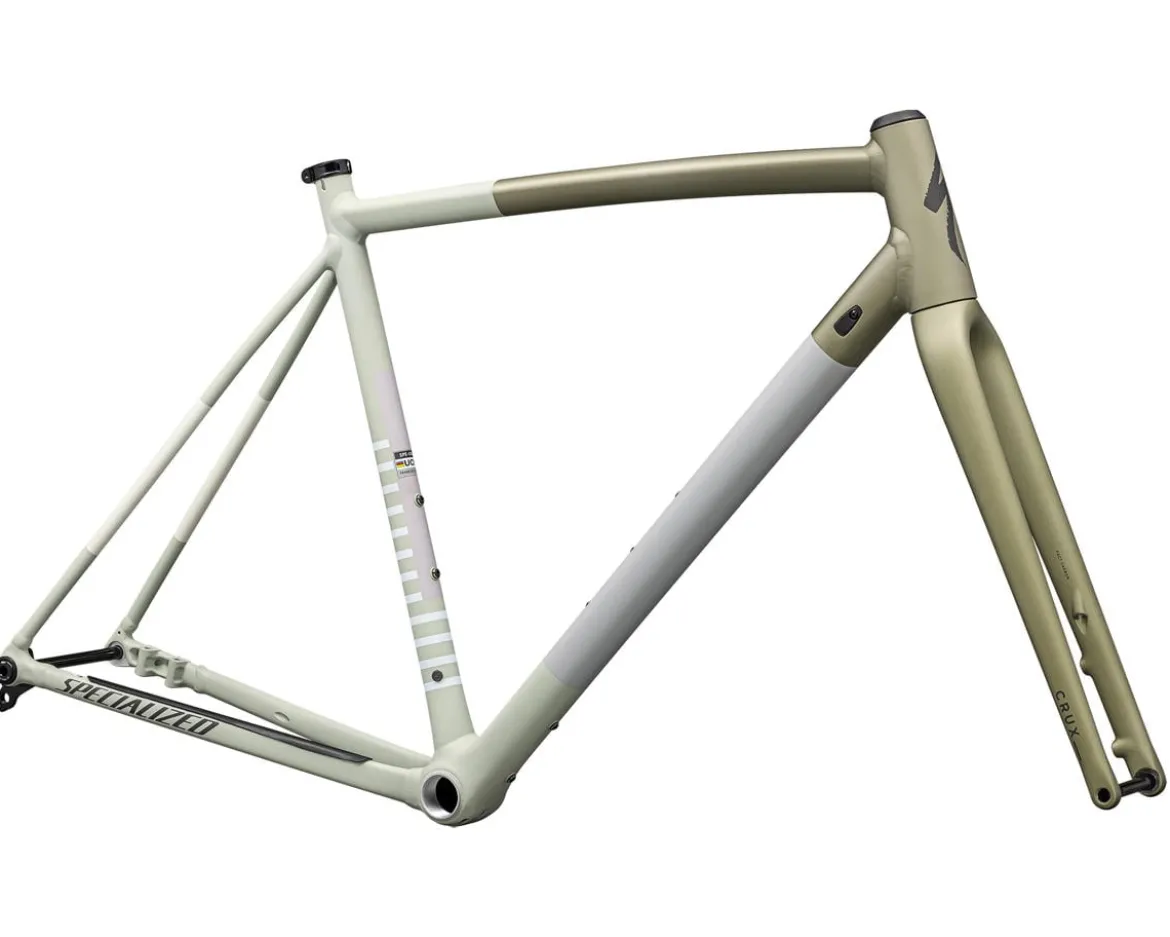

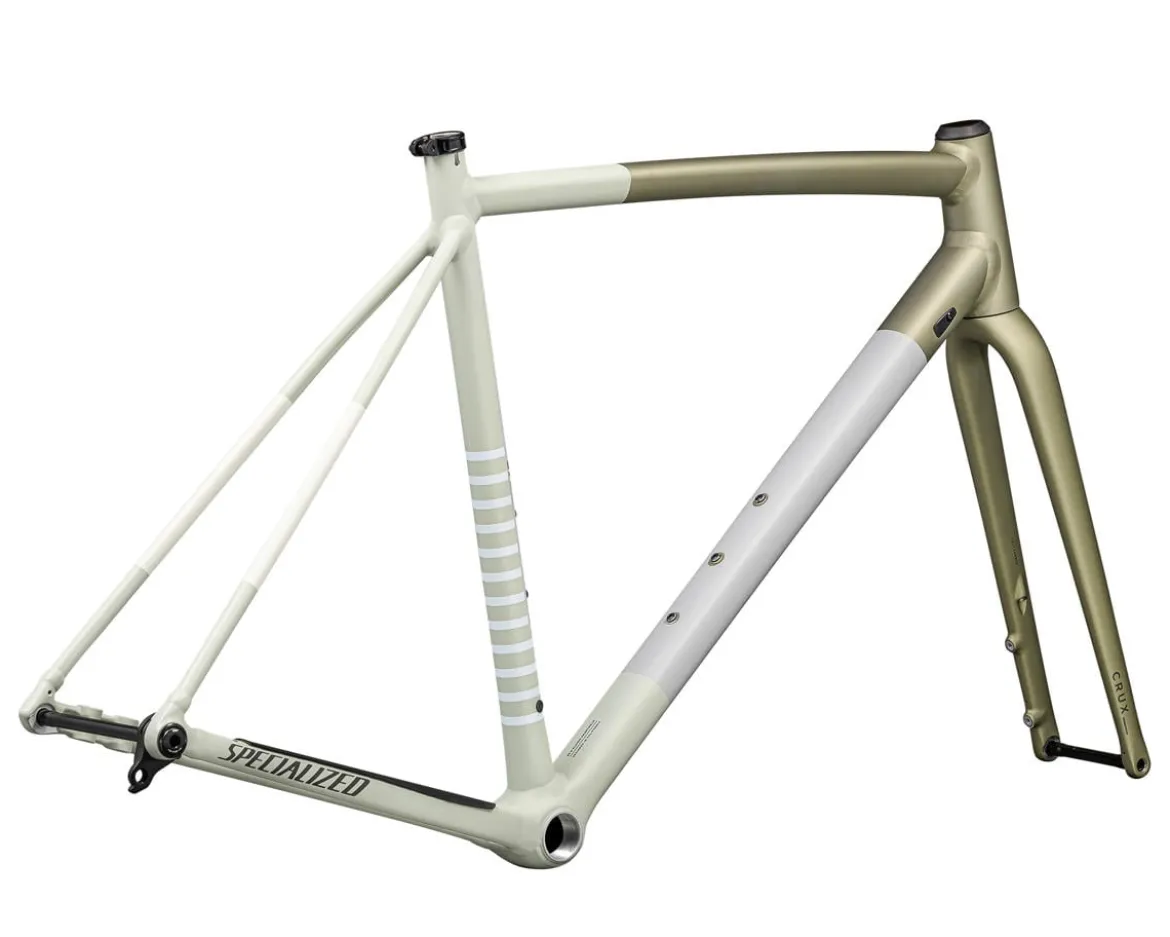

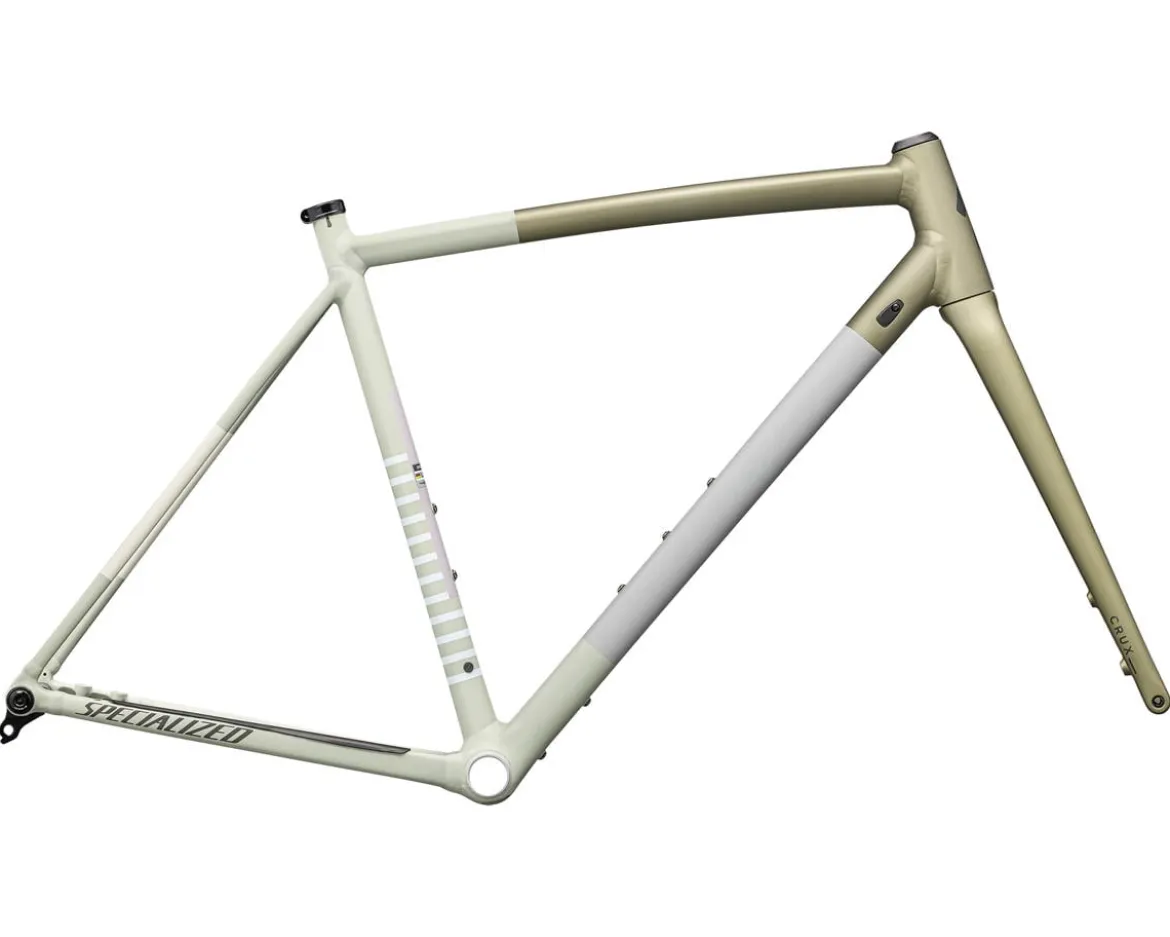

Specialized Crux DSW Frameset (Metallic Spruce/Birch/Smoke) (56cm)

Specialized Crux DSW Frameset Description:

Crux DSW represents the lightest alloy gravel frame ever produced by Specialized, an effort made possible by the implementation of D’Aluisio Smartweld construction for an effect that not only shaves grams, but imbues each frame with marked durability that will hold steady in the face of off-road gravel riding. D’Aluisio Smartweld construction not only yields a solid level of durability, but displays increased response as a result of comprehensive alloy tuning that leaves Crux DSW with ride properties that previously only existed in carbon frames. Clearance for the latest generation of high-volume gravel tires is assured by borrowing influence from Crux Carbon, a move that enables users to run tires as wide as 700c x 47mm or 650b x 2.1″ for confidence inspiring setups that will reflect the best of your riding efforts. Responsiveness exists in all characteristics of Crux, including race proven geometry that includes a longer reach that provides better weight distribution and a 72mm bottom bracket drop that exudes a balance of stability and agility.

Features:

• Lightest ever production alloy gravel frame
• D’Aluisio Smartweld alloy construction yields devastatingly light, yet durable frame with elite ride properties
• Lightweight S-Works Carbon Fork smooths out rough gravel and delivers responsive handling
• Capable geometry channels nimble yet responsive handling
• Generous fork and stay clearance allows for up to 700c x 47mm or 650b x 2.1″ tires
• Rear derailleur interface compatible with SRAM UDH

Specifications:

• Frame Material: Specialized E5 Premium Aluminum
• Fork Material: FACT Carbon
• Headset: Included
• Headset Size:(Tapered) (1-1/2” to 1-1/8”)
• Brake Compatibility: Disc Only (Hydraulic or Mechanical)
• Brake Mounts: Flat Mount
• Rotor Compatibility: 140 or 160mm (Front), 140 or 160mm (Rear)
• Axle Type: Thru Axle
• Hub Spacing: 12 x 100mm (Front), 12 x 142mm (Rear)
• Stem: Not Included
• Stem Size: 1-1/8”
• Seatpost: Not Included
• Seatpost Diameter: 27.2mm
• Seatpost Clamp: Included (Alloy) (30.8mm)
• Bottom Bracket: Not Included
• Bottom Bracket Type: Threaded BSA
• Bottom Bracket Width: 68mm
• Drivetrain Compatibility: 1x Electronic & Mechanical, 2x Electronic & Mechanical
• Chainring Compatibility: 42T
• Tire Clearance: 700c x 47mm, 650b x 2.1”
• Cable Routing: Internal
• Dropper Post Routing: Yes (Internal)
• Water Bottle Bosses: 3 Mounting Positions (Seattube, Downtube Top, Downtube Bottom)
• Fender/Rack Mounts: No
• Front Derailleur Mount: No Mount (1x Only)
• Rear Derailleur Hanger: Included (UDH)
• Model Year: 2025
• Color:Satin Metallic Spruce/Birch/Smoke
• Weight: 1980g (56cm)

Includes:

• Crux DSW Alloy Frame
• S-Works FACT Carbon Fork
• Tapered Headset
• Front and Rear Thru-Axles
• UDH hanger
• Alloy Seat Clamp
