Ritchey Outback Breakaway Frameset (Swell & Foam) (M)

Ritchey Outback Steel Break-Away Frameset Description:

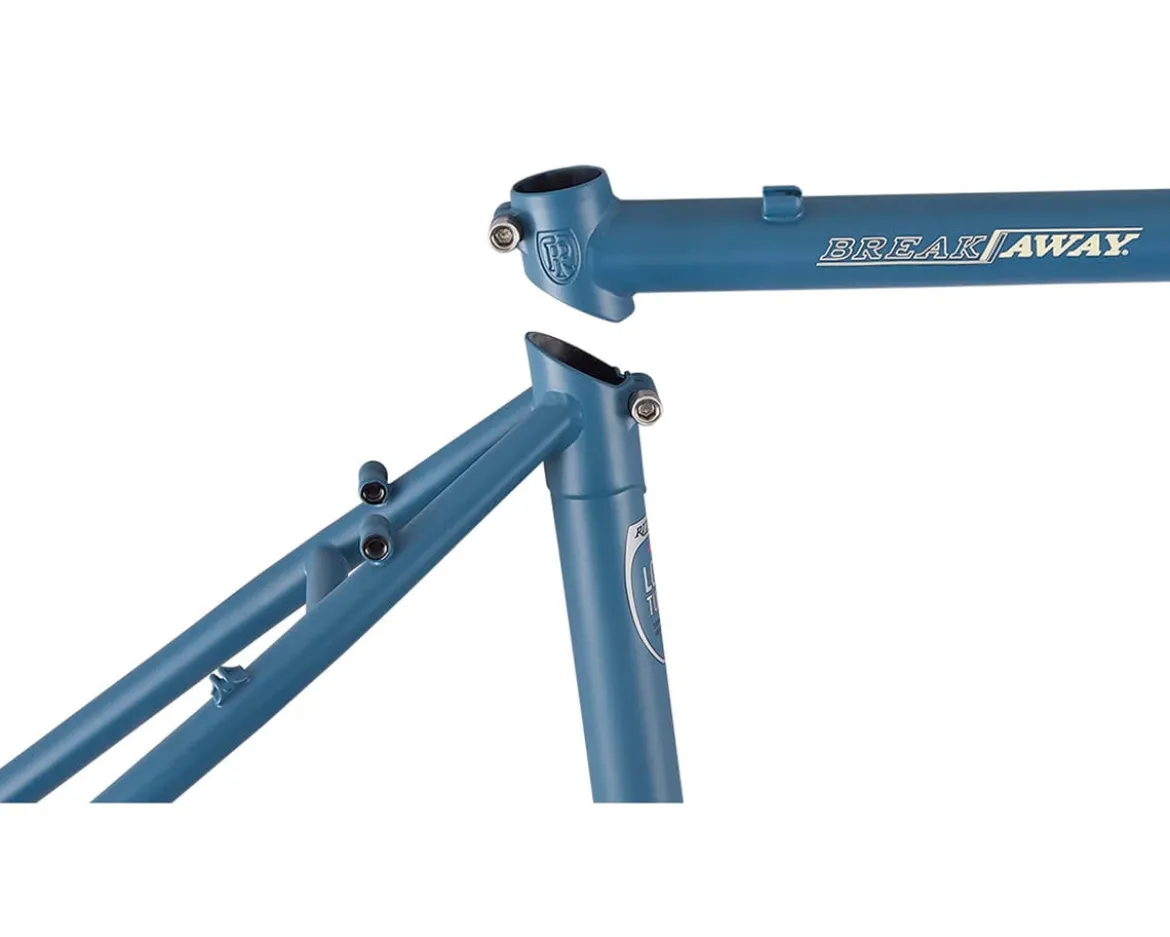

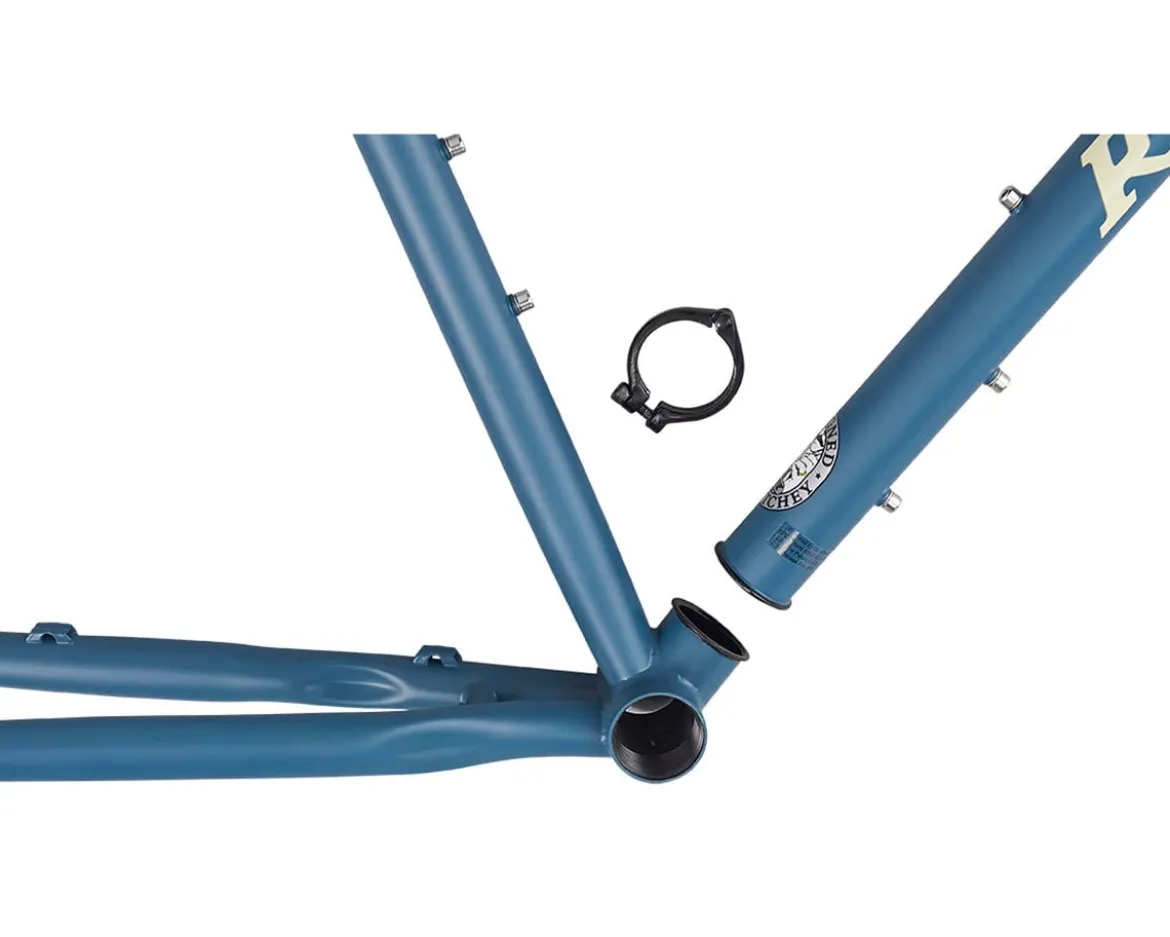

The Ritchey Outback Steel Break-Away frameset quickly and easily breaks down to fit into a sturdy travel case. Quite handy when you’d like to avoid those pesky additional airline fees. Once you arrive, the frame assembles just as quickly as it breaks down, allowing you to get up and go. Its rack and fender mounts help keep things dry and let you carry more for longer, making it ideal for those bikepacking epic adventures. Clearance for 700c x 48mm or 650b x 2.0″ lets you customize the ride for the terrain and route you’re setting out on. The Outback Break-Away has a one-piece dropout for flat-mount brakes and features a unique truss design that offers reliable strength in a lighter package.

Features:

• Material: heat-treated, triple-butted Ritchey Logic steel tubing – TIG welded
• Ritchey Carbon Adventure Fork with multipurpose, rack, and fender mounts

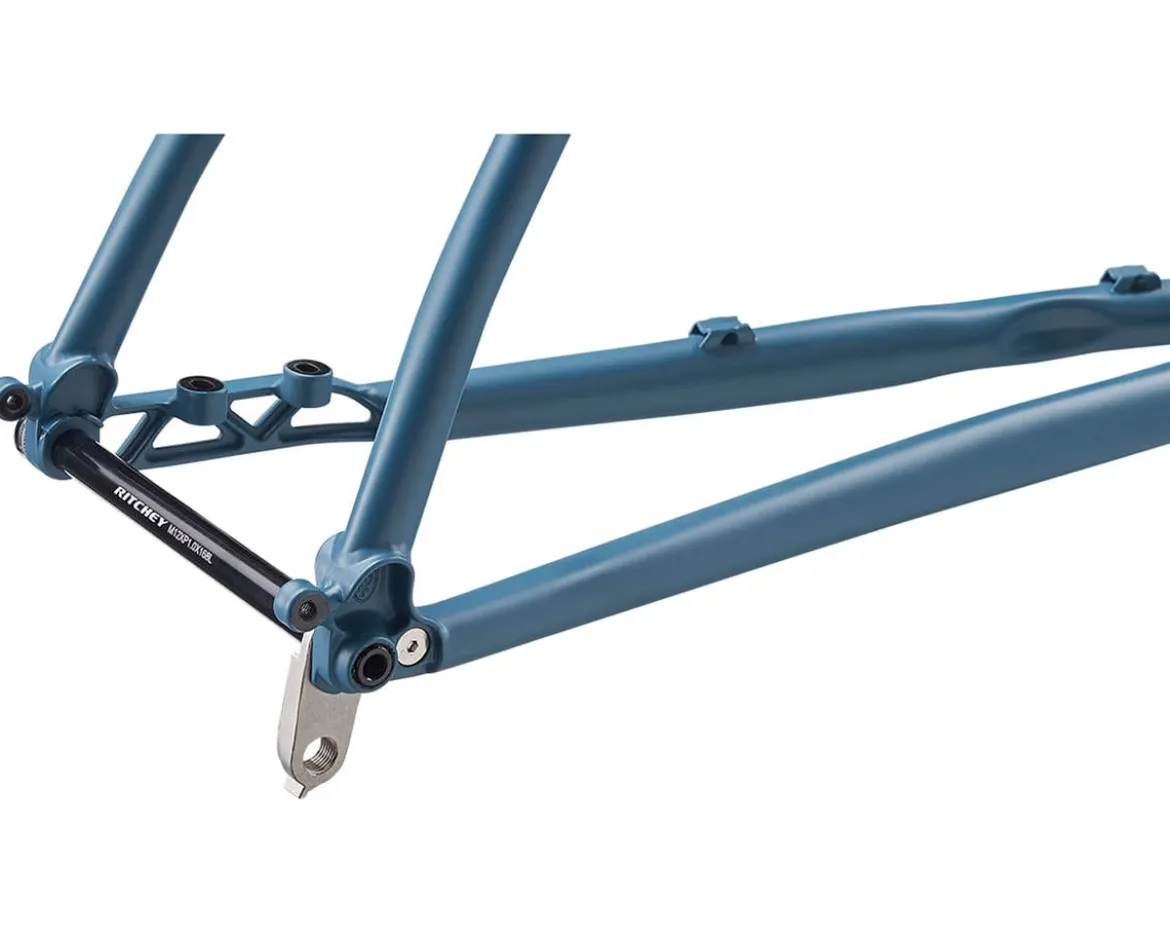

• Replaceable stainless steel derailleur hanger
• 160mm rotor compatibility with adapters (sold separately)
• Integrated carbon crown

Specifications:

• Frame: Ritchey Logic Steel Tubing (Heat-Treated) (TIG Welded)
• Fork: Ritchey Carbon Adventure Fork (Rack and Fender Mounts)
• Headset: Included
• Headset Size: WCS (Upper IS42/28.6 | Lower IS42/30)
• Brake Compatibility: Disc Only (Hydraulic or Mechanical)
• Brake Mounts: Flat Mount
• Rotor Compatibility: 140mm
• Axle Type: Thru Axle
• Hub Spacing: 12 x 100mm (Front), 12 x 142mm (Rear)
• Stem: Not Included
• Stem Size: 1-1/8”
• Seatpost: Not Included
• Seatpost Diameter: 27.2mm
• Seatpost Clamp: Included (Alloy) (28.6mm)
• Bottom Bracket: Not Included
• Bottom Bracket Type: Threaded BSA
• Bottom Bracket Width: 68mm
• Drivetrain Compatibility: Can Accommodate 1x and 2x Chainrings
• Chainring Compatibility: 1x (36 to 46T) | 2X (46/30T to 50/34T)
• Tire Clearance: 700c x 48mm, 650b x 2.0”
• Cable Routing: External
• Dropper Post Routing: No
• Water Bottle Bosses: 3 Mounting Positions (Seattube, Downtube Top, Downtube Bottom)
• Fender/Rack Mounts: Yes
• Front Derailleur Mount: 28.6mm Clamp
• Rear Derailleur Hanger: Included
• Color: Swell & Foam
• Weight: Frame Weight: 2280g (Size: L) | Fork Weight: 450g

Includes:

• Ritchey WCS Headset
• Break-Away case and padding
