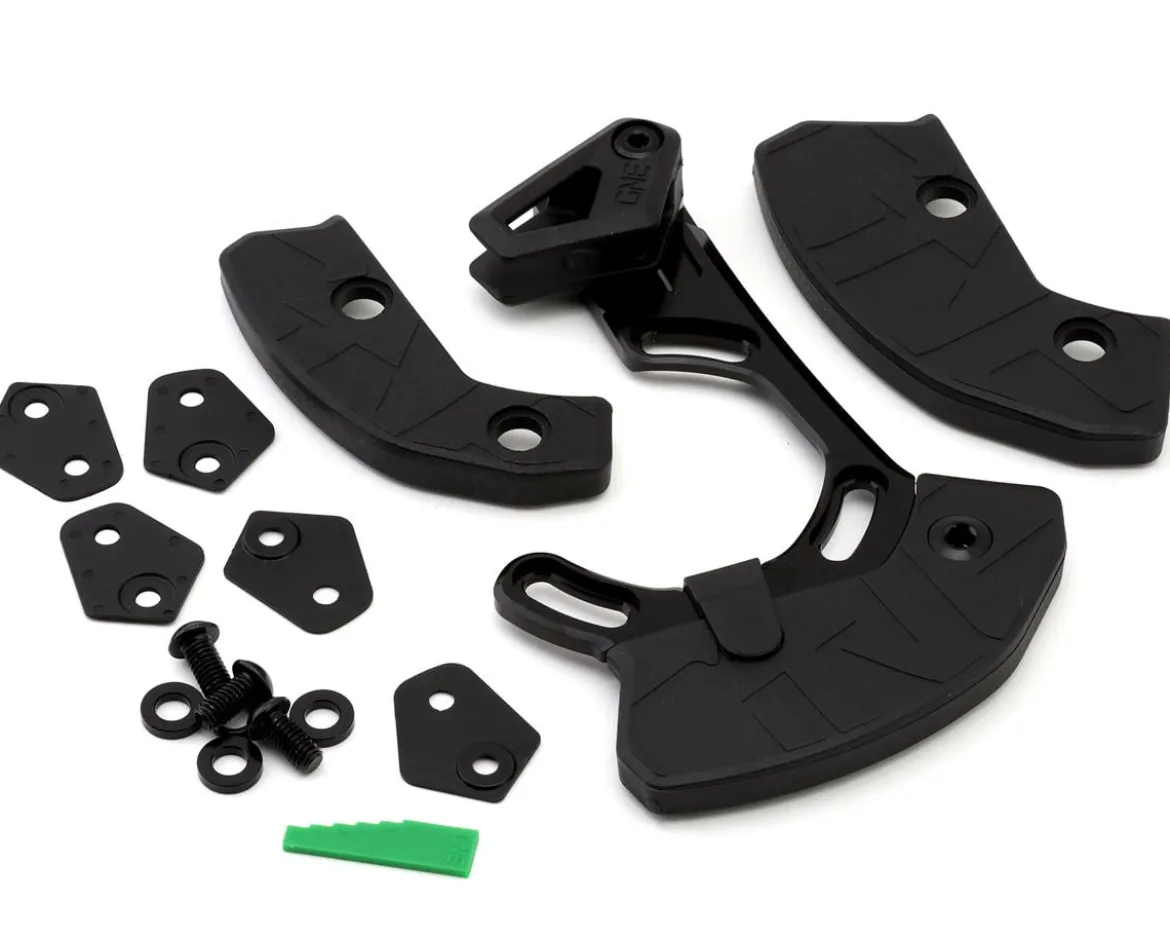

OneUp Components V2 Bash Guide (Black) (ISCG-05) (28-36T)

OneUp Components V2 Bash Guide Description:

The OneUp Components V2 Bash Guide combines excellent chain retention, rugged protection for the chainring, and tool-less access to the chain in one lightweight and easy to install device. The rugged 8mm thick 7075-T6 aluminum back plate attaches to the integrated tabs found on many modern mountain bikes, and creates a rock solid foundation for the top guide and lower bash plates. The top guide is constructed out of a highly abrasion resistant glass reinforced thermoplastic, has 7.5mm of adjustment to fit many different chainlines (including boost specific ones), has a wide opening to reduce the potential for chain rub, and most importantly, will flip out of the way without the use of tools to allow easy access to the chain for maintenance or to replace the chain. This bash guide is compatible with any round or oval/elliptical chainring, and also comes with three different lower bash plates to fit and protect any 28 to 36t chainring from accidental impacts when attacking rugged terrain. All of the install hardware is made out of black coated stainless steel for excellent corrosion resistance and long life, and it only takes a minimal amount of tools to adjust and install these bash guides. Simply install the right size bash plate to the backplate, align the backplate of this guide to your crank/chainring, tighten the backplate down, set the height of the top guide to your chainring, flip that guide down, and get ready to shred the trails!

Features:

• 7075 series aluminum backplate creates a rugged and stiff mounting point, and glass reinforced thermoplastic upper guide and lower bash plates reduce potential chain noise and keeps the bash guide light in weight (90g w/ 28-30T bash plate installed, 105g w/ 32-34T bash plate installed, 110g w/ 36T bash plate installed)
• Top guide has a tool free flip feature to swing it out of the way when it is time to service or replace the chain
• 7.5mm of chainline adjustment allow these chain guides to work with bikes and frames with boost spacing
• Compatible with round and oval/elliptical chainrings
• Height adjustability of the top guide allows for a max chainring size of 36 teeth
• Includes three different sizes of the lower bash plate (for 28-30T, 32-34T, and 36T max chain ring sizes)
• Mounting hardware/bolts are a black coated stainless steel for excellent overall durability and protection against corrosion
