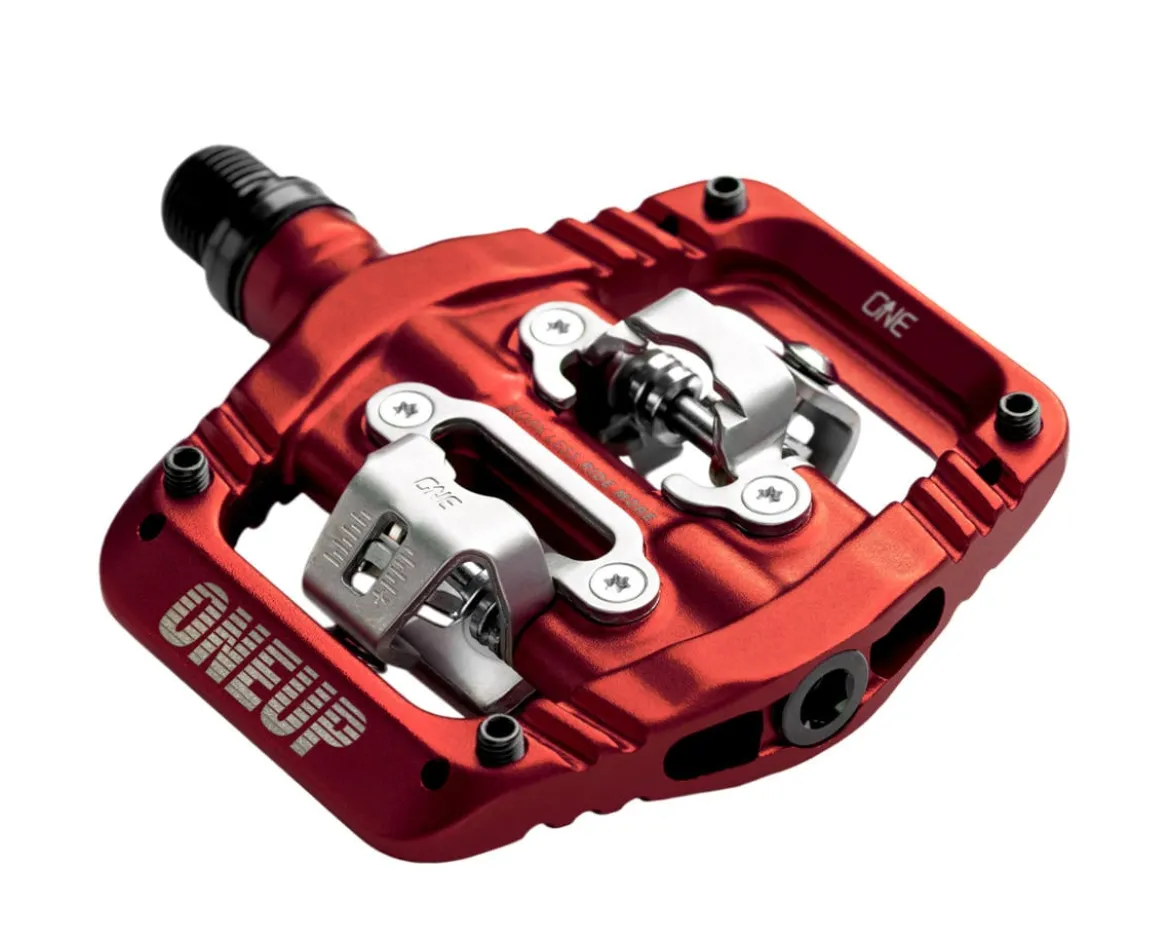

OneUp Components Clip Pedals (Red) (9/16″)

OneUp Components Clip Pedals Description:

The OneUp Components Clip Pedals are built to be durable enough to tackle aggressive mountain bike riding while maintaining a low profile and light weight. The large platform aluminum pedal body includes 4 hollow pins on each side to provide a wide contact area, phenomenal grip, excellent power transfer, and stability for the feet and knees. Thanks to the thin 14.4mm body (26.8mm at the binding mechanism), these larger pedals still provide excellent ground clearance to prevent pedal strikes on rocks and other trail obstacles. When it is time to clip in, the stainless steel binding mechanism features a unique profile that reduces the amount of free play that is found in other similar pedal designs, while still providing a healthy amount of float that will allow the feet and legs to comfortably align with each other. This binding mechanism also features a highly adjustable spring tension so the entry into and retention strength can be fine-tuned to a riders experience level and preferences, and the binding mechanism has a shallow release angle that makes getting out of these pedals a breeze. Add in stiff and tough chromoly axles, sealed outer bearings, and the ability to use either OneUp Components clipless pedal cleats or the easy to find Shimano SPD cleats, and the result is a set of incredibly tough pedals that will keep your feet happy and connected for a long time. Sold in pairs.

Notes: The included OneUp cleats require a cycling shoe with a 2-bolt, or SPD style, mounting interface, which is most commonly used in shoes designed for mountain biking, gravel bike riding, and urban/casual riding. If unsure if your shoes are compatible, please either contact our customer service team by clicking on any of these highlighted/underlined words, or reach out to a local bike shop for confirmation.

Features:

• Large 80mm x 90mm platform provides excellent support for the foot for better power transfer with minimal hot spots
• Thin 14.4mm body profile (26.8mm at the cleat binding mechanism) tucks the pedal up under the shoe to minimize pedal strikes
• 4 strategically placed hollow pins per side provides even more shoe support and better grip when not clipped into the pedal
• Uniquely designed stainless steel binding mechanism minimizes unwanted play for better stability and less noise from the cleat/pedal interface, and is compatible with OneUP and Shimano SPD cleats
• 5° of side to side float when clipped in which protects the knee and ankle joints from excess strain, and a quick releasing 12° release angle for when it is time unclip the foot from the pedal
• Highly adjustable spring tension can be loosened up to create a very easy entry and release which is ideal for newer users of clipless pedals, while also being able to be cranked down for a more locked in feel and to adjust for the cleat wearing over time
• Large openings in the binding mechanism allow mud and debris to flow freely through the pedal so the easy entry into and the release from the pedal is maintained even in foul weather and trail conditions
• Chromoly steel pedal spindle and 3 outboard sealed cartridge bearings minimize bearing play and improve overall durability of the pedal
• Included bearing nut tool makes disassembly, cleaning, and re-greasing of the axle system a breeze

Specifications:

• Pedal Type: Mountain
• Cleat Interface: Shimano SPD
• Cleats Included: Yes
• Pedal Clips: Dual-Sided Clip In
• Pedal Configuration: Clip Only
• Body Material: Aluminum
• Spindle Size: 9/16″ (Standard)
• Spindle Material: Chromoly Steel
• Bearings: Sealed
• Color: Red
• Weight: 410g (Pair, w/ Pins Installed)

Included in each order:

• (2) Clip Pedals (Left and Right Specific)
• (16) Hollow Threaded Pins (Pre-Installed On Each Pedal)
• (2) OneUp Cleats w/ Installation Hardware
• (2) 1mm Thick Cleat Spacers
• (1) Pedal Bearing Nut Tool
