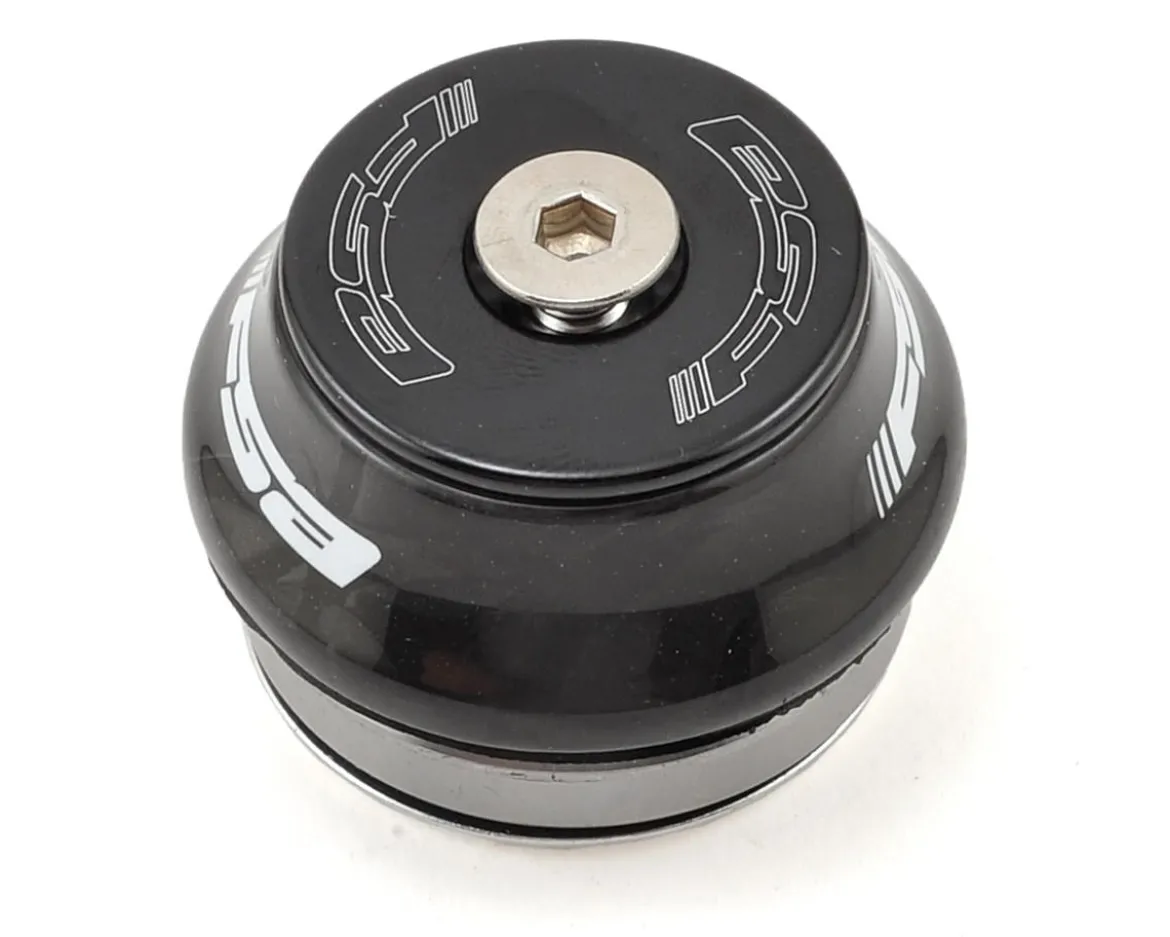

Full Speed Ahead Orbit Integrated Carbon Headset (Black) (1-1/8″) (IS41/28.6) (IS41/30)

Built for Cane Creek standard “drop-in” headtubes, the Orbit I features a 36° angular cartridge bearing at the top and a 45° bearing at the bottom. As an integrated headset, there are no cups, leading to a low 71g weight.

Features:

• 1-1/8″,36°/ 45° ACB
• For 45mm Outer Diameter headtube
• 1-1/8″ steerer
• Alloy top cover
• Angular Contact Bearings (Blue seal)

Specifications:
Model: Orbit I
SHIS Upper: IS41
SHIS Stem Clamp Diameter: 28.6 (1-1/8″)
SHIS Lower: IS41
Crown Race: 30
Stack Height: 8mm/1mm
Bearings: Angular Contact (36 x 45°)
Color: Black
Weight: 71g
