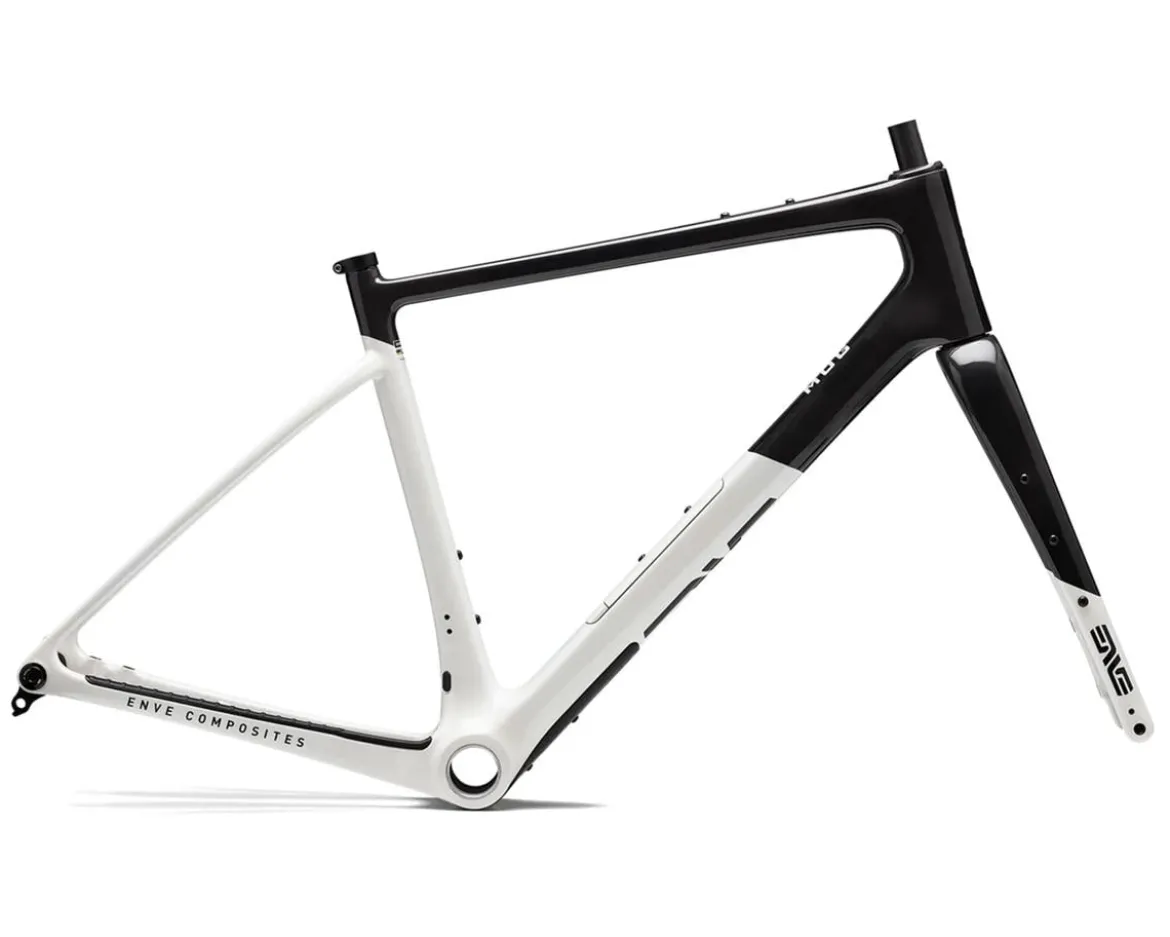

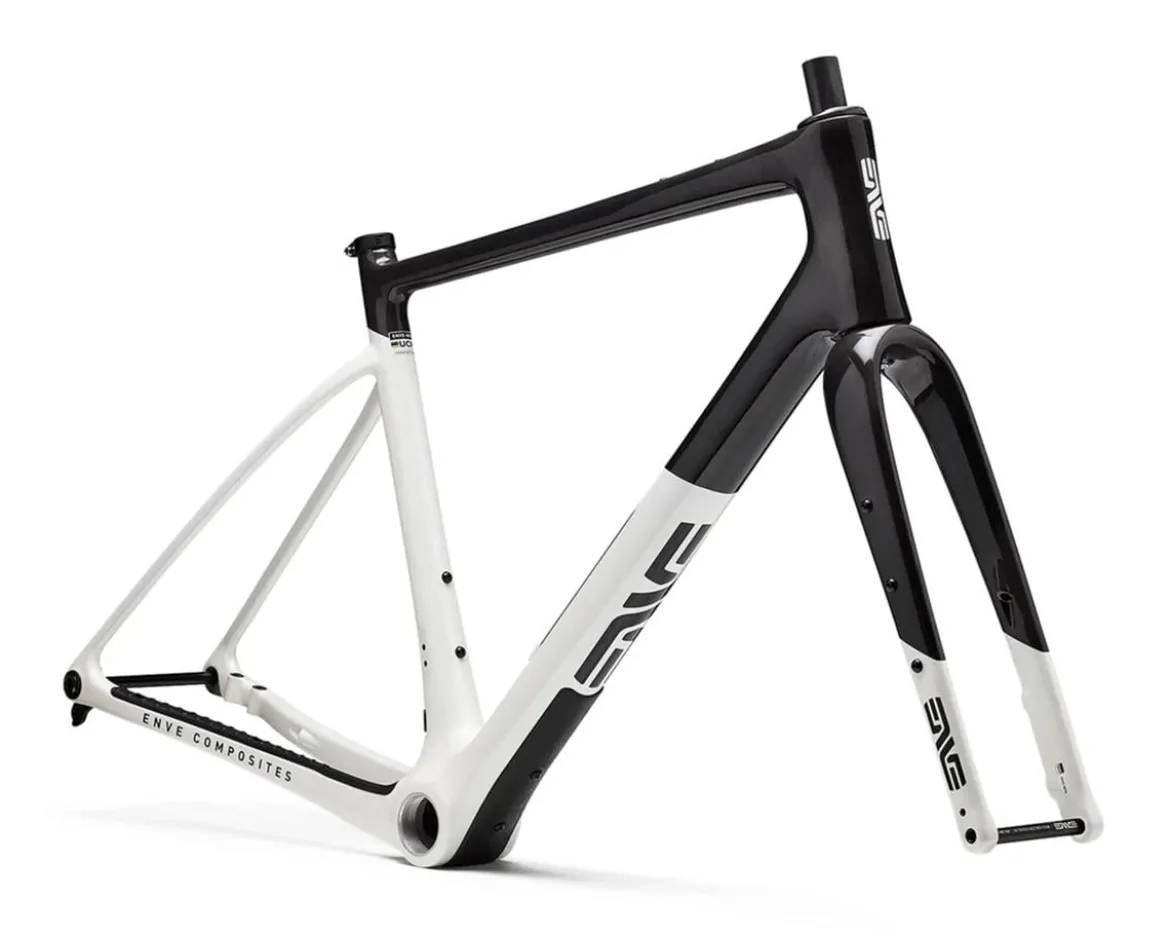

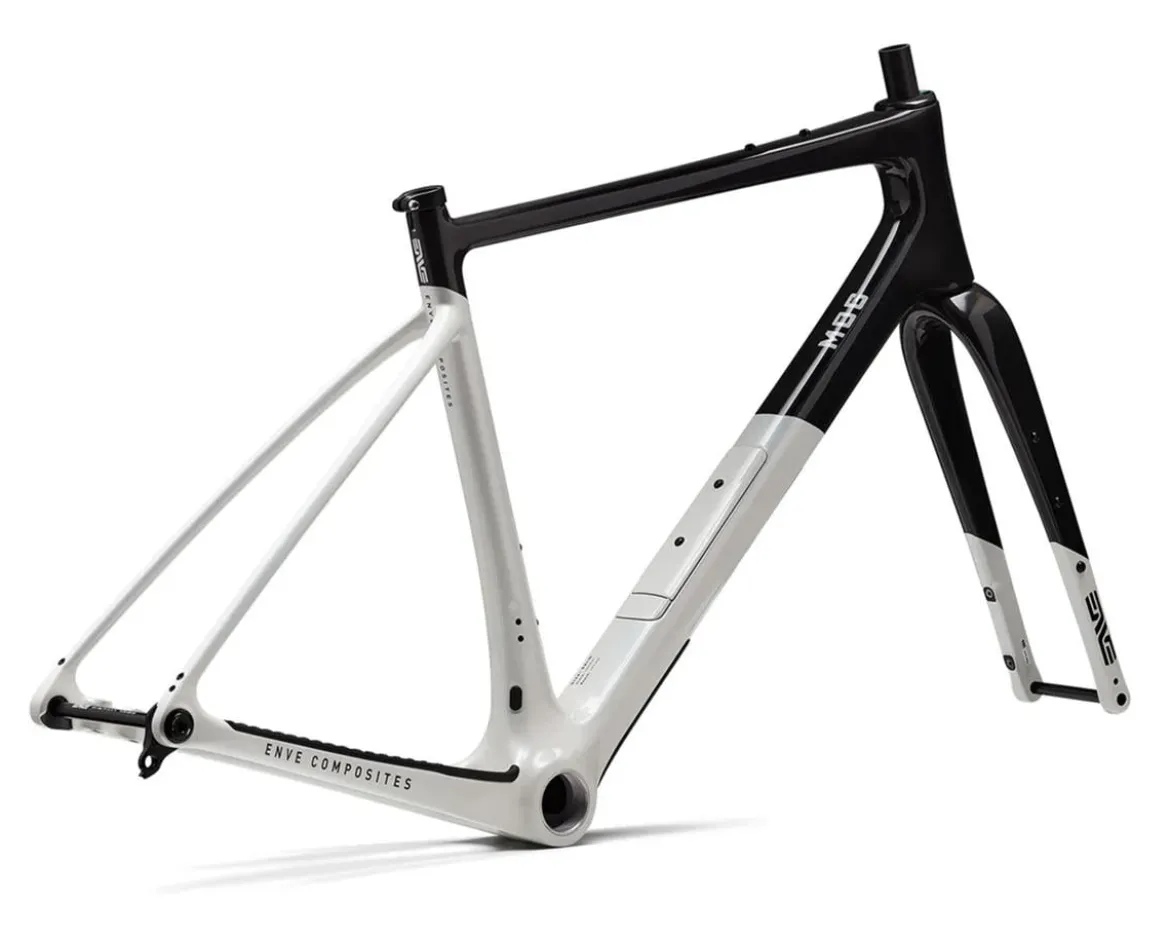

ENVE MOG Frameset (Aspen White) (52cm)

ENVE MOG Frameset Description:

The ENVE MOG Frameset is a wildly capable modern gravel bike frame that is ready to toe the line on race day or to get loaded up for some serious exploration. This monocoque carbon fiber frame uses unidirectional carbon fibers and ENVE’s M.O.D. construction techniques to produce a frame with excellent stiffness and strength, all at a weight that is typically only found on road bike frames. A full carbon fork provides an excellent complement to both the appearance and to the performance of the bike, and like the frame, the brake hose is run internally for a clean, aerodynamic appearance and to prevent the brake hose from getting snagged along the trail. The Cargo Bay in the downtube provides storage space for a flat kit, a windbreaker, and other gear, and this bike also has a top tube accessory mount and rack mounts if more cargo capacity is needed for a grand adventure. Perhaps the best thing about this bike is that it uses a common, 27.2mm round seat post, a threaded bottom bracket, and is compatible with most mechanical and wireless drivetrains, all of which makes it easier to build up the ENVE MOG Frameset into a dream machine.

Features:

• Modern high-performance carbon gravel frame that is ready for riding and racing over any terrain
• Performance focused geometry balances comfort, snappy handling, and high speed stability
• Material Optimized Design (or M.O.D.) construction takes unidirectional carbon fiber and strategically lays it out to maximize stiffness and strength where it is needed and remove unnecessary material elsewhere to reduce weight
• Solid chainstay yoke allows for short chainstays while maintaining excellent tire and chainring clearance
• ENVE M.O.D. full carbon fork delivers pin point steering precision and a smooth ride
• Downtube Cargo Bay provides up to 36 Cubic Inches/0.6L of practical storage space for clothing, gear, and tools
• Integrated headset works with ENVE IN-Route handlebars, stems, or one-piece handlebar/stem combo’s to route cables and hydraulic hoses through the frame
• Rack mounts allow this bike to be set up as a seriously fast adventure rig
• Top tube accessory mount for a bento box puts nutritional supplements where they can easily be reached on the fly
• Downtube guard protects the frame from rocks and debris that are kicked up when riding over loose terrain
• Generous tire clearance fits tires as wide as 700c x 50mm within the frame and the fork

Specifications:

• Frame Material: ENVE M.O.D Carbon Fiber (Monocoque) (Downtube Cargo Bay) (Internal Cable Routing) (Threaded T47 Bottom Bracket) (Flat-Mount Disc) (Fender Compatible) (12x142mm Thru Axle)
• Fork Material: ENVE M.O.D Carbon Fiber (Tapered Steerer Tube) (Internal Cable Routing) (Flat-Mount Disc) (Fender Compatible) (12x100mm Thru Axle)
• Headset: Included
• Headset Size: IS52/28.6 (Upper) | IS52/40 (Lower) (1.5”)
• Brake Compatibility: Disc Only (Hydraulic or Mechanical
• Brake Mounts: Flat Mount (Front & Rear)
• Rotor Compatibility: 160mm or 180mm (w/ Adapter) (Front) | 140 or 160mm (w/ Adapter) (Rear)
• Axle Type: Thru Axle
• Hub Spacing: 12 x 100mm (Front) | 12 x 142mm (Rear)
• Stem: Not Included
• Stem Size: 1-1/8″ Steerer
• Seatpost: Not Included
• Seatpost Diameter: 27.2mm
• Seatpost Clamp: Included (Alloy) (31.8mm)
• Bottom Bracket: Not Included
• Bottom Bracket Type: T47 (85.5mm Internal)
• Bottom Bracket Width: 85.5mm
• Drivetrain Compatibility: 1x Electronic & Mechanical | 2x Electronic & Mechanical (Shimano Only as MOG Requires Continuous Housing For Front Derailleur)
• Chainring Compatibility: 48T (2x, 47mm+ Chainline) | 50T (1x, 47mm+ Chainline)
• Tire Clearance: 700c X 50mm
• Cable Routing: Internal
• Dropper Post Routing: Yes (Internal)
• Water Bottle Bosses: Frame: 3 (Seattube & Downtube)
• Fender/Rack Mounts: Yes
• Front Derailleur Mount: Removable Braze-On
• Rear Derailleur Hanger: Included (SRAM UDH)
• Model Year: 2026
• Color: Aspen White
• Weight: 950g (Frame, 56cm; No Hardware)
