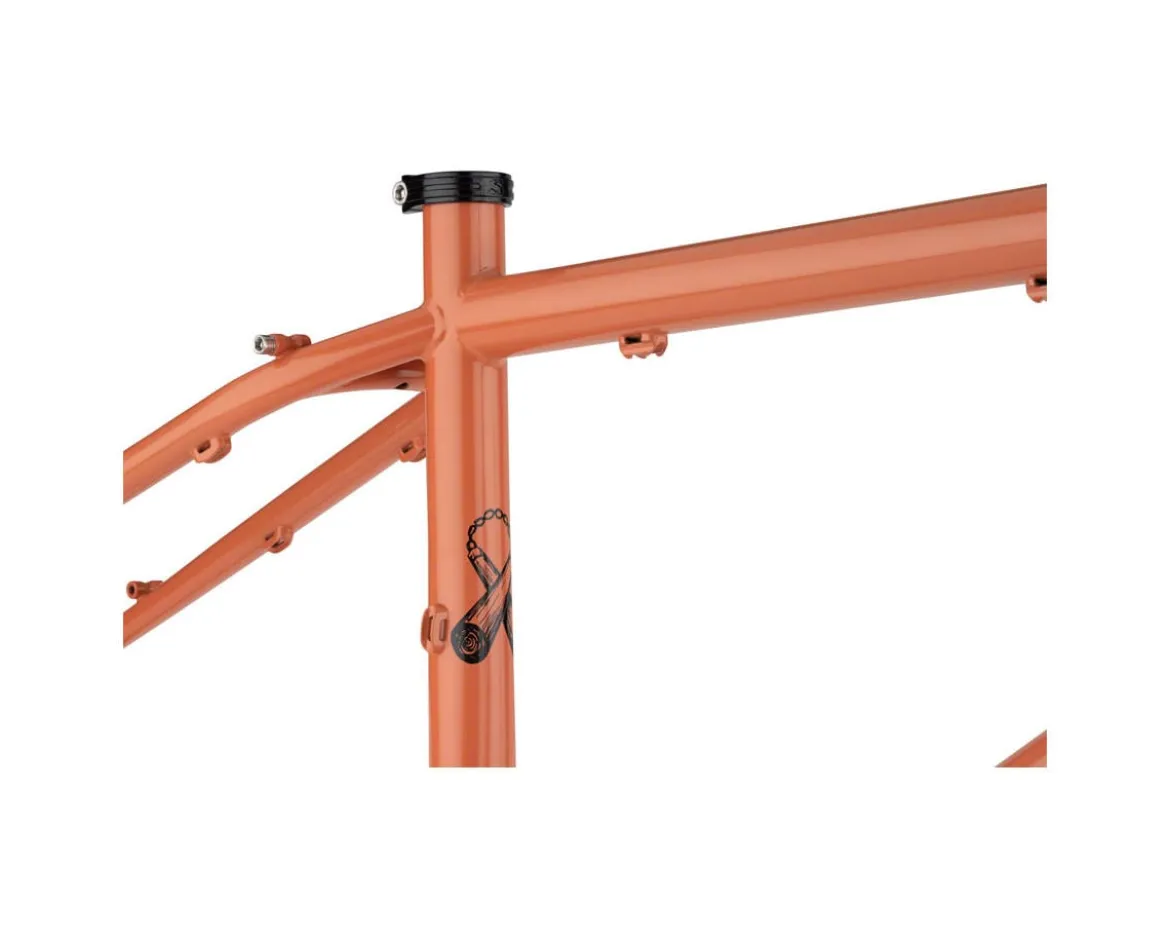

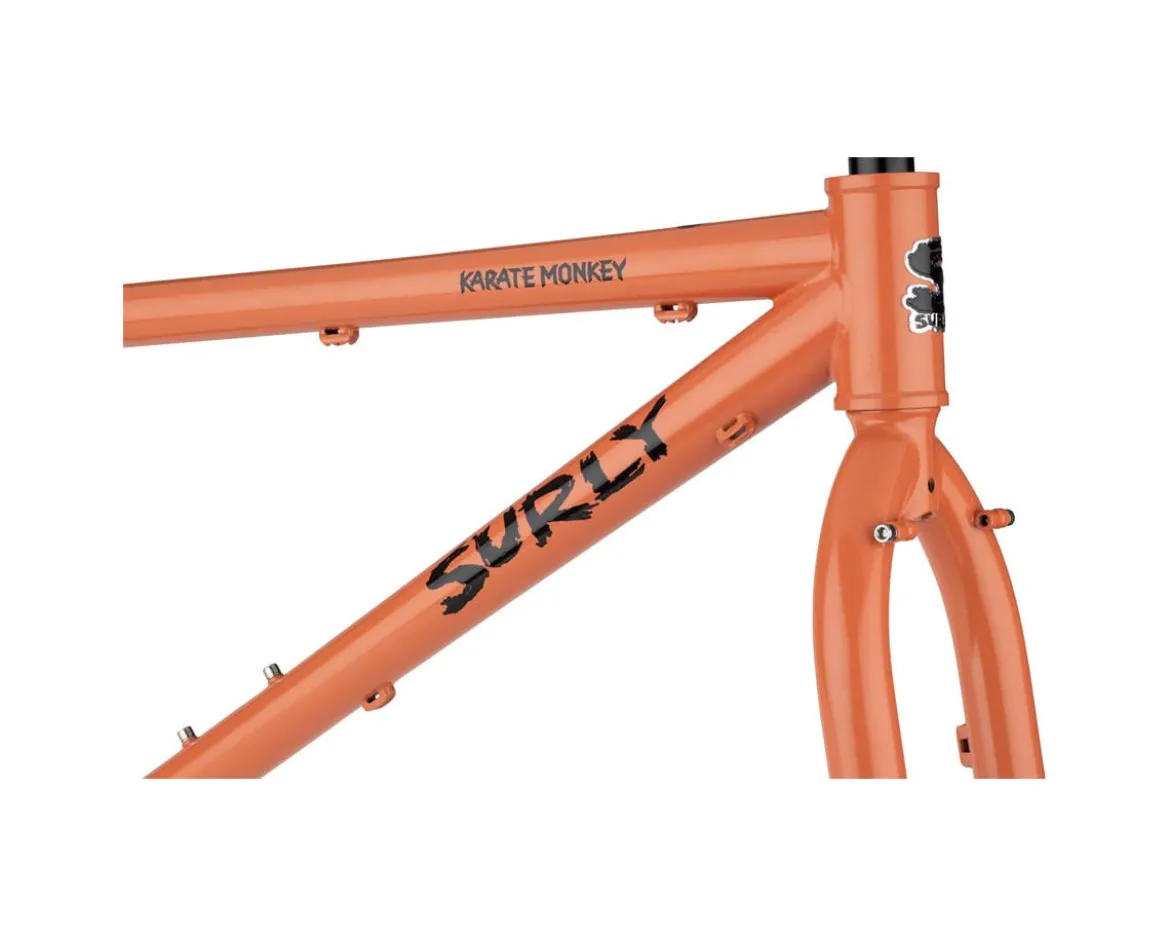

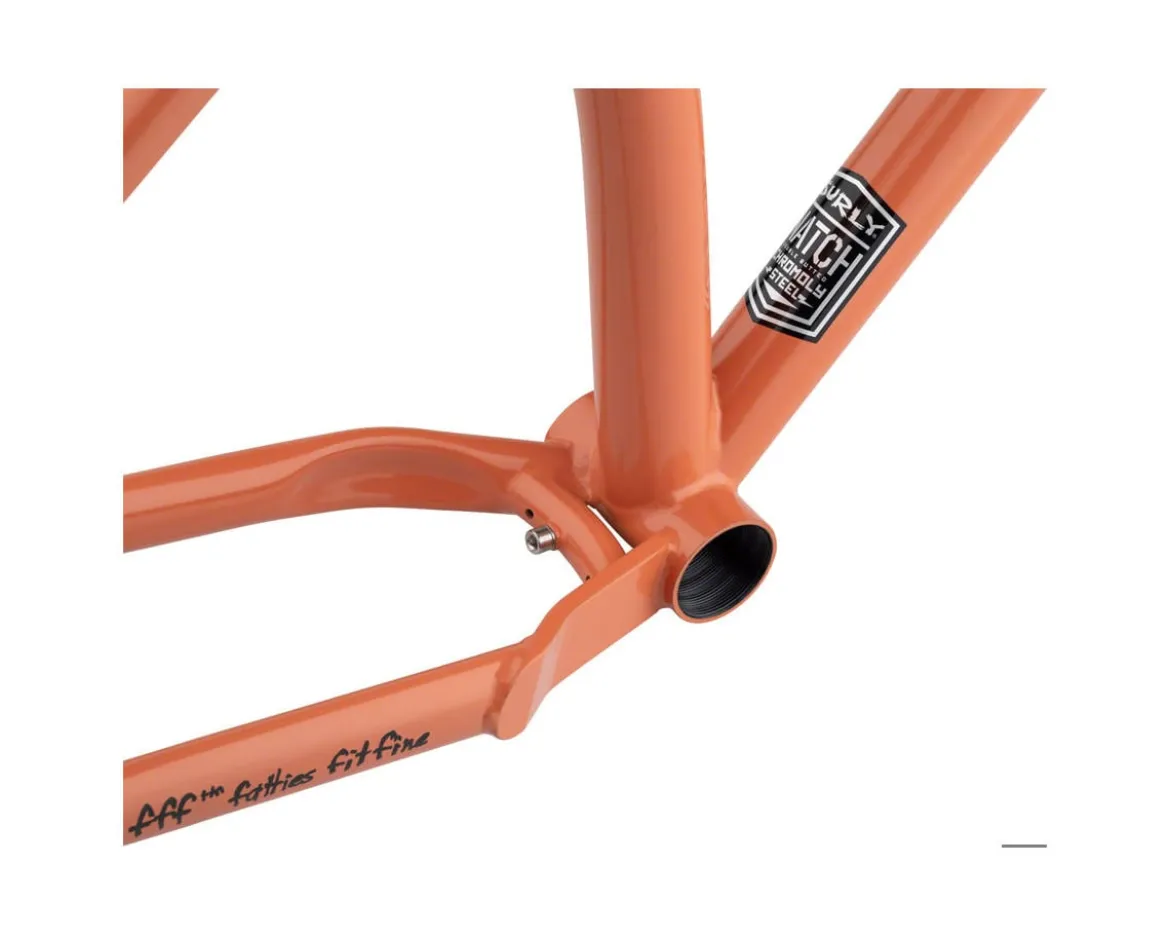

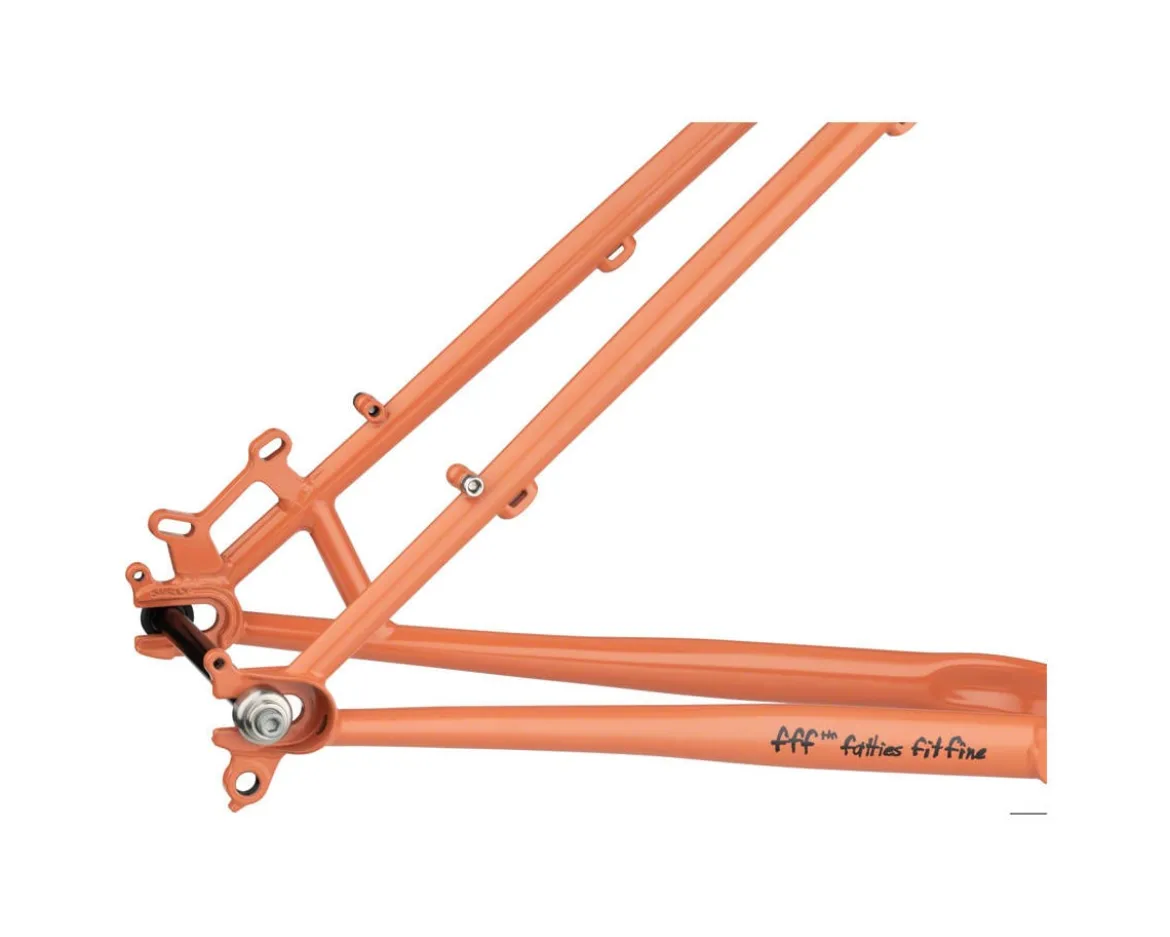

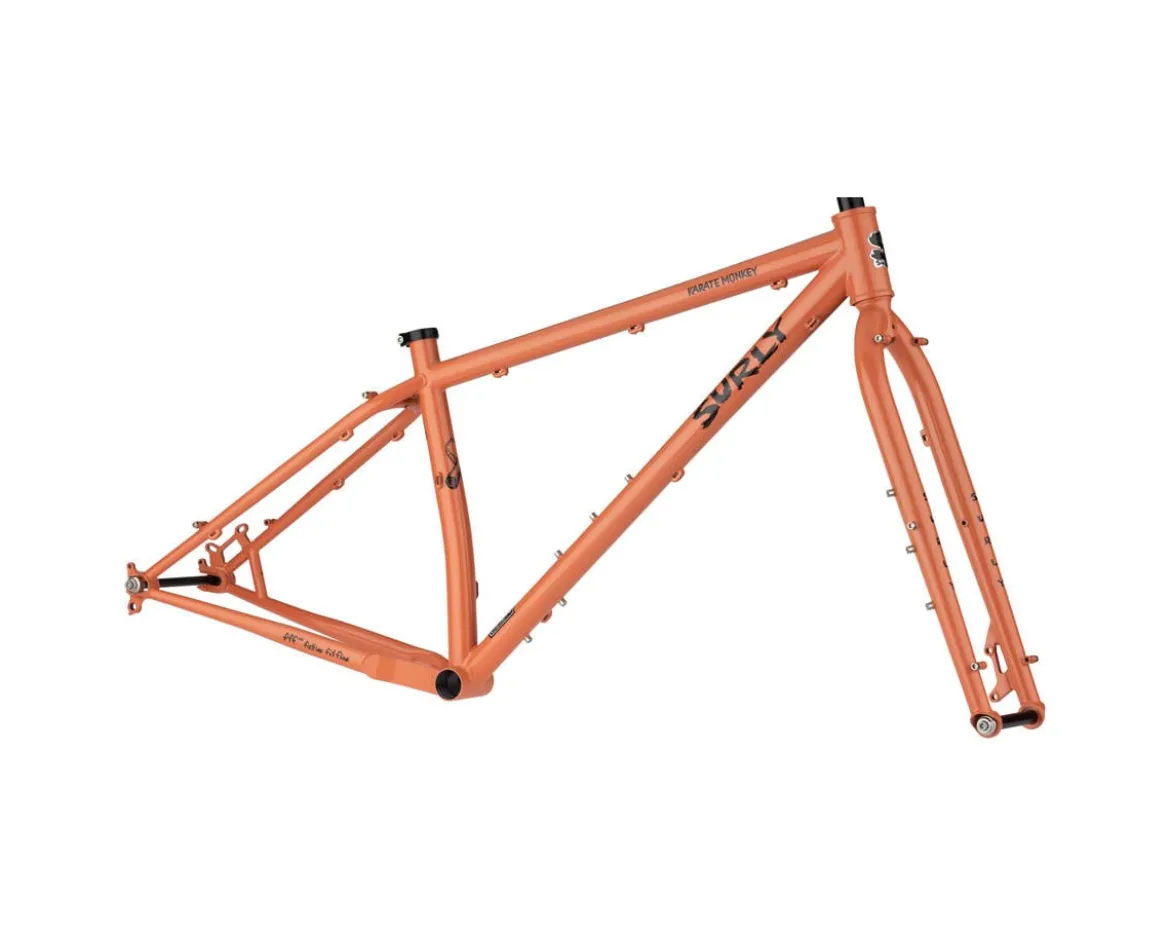

Surly Karate Monkey Steel MTB Frameset (Peach Salmon Sundae) (XS)

Surly Karate Monkey Steel MTB Frameset Description:

The Surly Karate Monkey was one of the first production 29ers. Modern updates now feature a progressive trail geometry and Surly’s Gnot-Boost rear dropout system, meaning it can accept most axle standards on the market. Many riders choose to set up the Karate Monkey as a highly versatile 27.5+ mountain or bike-packing bike. Multiple mounting points are sprinkled throughout the frame and fork to maximize carrying capacity. Enjoy the freedom of creative thinking and build it up however you want.

Features:

• 100% Surly Chromoly steel frame and fork with a double-butted main triangle
• Adjustable rear dropouts with 145mm Gnot-Boost spacing
• Compatible with 12 x 142 or 12 x 148 rear hub standards
• 10/12 Surly adaptor washer will be needed if wanting to use a 135mm rear QR or Solid Axle
• Internal dropper seatpost routing
• Clearance for 29 x 2.5″ or 27.5 x 3″ tires
• Includes rigid front fork, but can be used with a 140mm travel suspension fork

Specifications:

• Frame Material: 4130 Chromoly (Natch Tubing) (Double-Butted Main Triangle) (Trumpet Flared Tubes) (TIG Welded) (ED Coated)
• Fork Material: 4130 Chromoly (Natch Tubing) (Double-Butted Tapered Fork Blades) (TIG Welded) (ED Coated) (2 Three-Pack Cage Mounts)
• Headset:Not Included
• Headset Size: ZS44/28.6 (Upper), EC44/30 (Lower)
• Brake Compatibility: Disc Only (Hydraulic or Mechanical)
• Brake Mounts: 51mm I.S.
• Rotor Compatibility: 203mm Max Rotor
• Axle Type: Thru Axle
• Hub Spacing: 15 x 110 (Front), “Gnot Boost” 12 x 145mm (Rear)
• Stem: Not Included
• Stem Size: 1-1/8″ Steerer
• Seatpost: Not Included
• Seatpost Diameter: 30.9mm
• Seatpost Clamp: Included (33.1mm)
• Bottom Bracket: Not Included
• Bottom Bracket Type: BSA
• Bottom Bracket Width: 73mm Threaded (1.37″ x 24TPI)
• Drivetrain Compatibility: 1x, 2x
• Max Chainring Compatibility: 1 x 135 (28T), 2 x 135 (24/34), 1 x 148 (32T), 2 x 148 (24/36T)
• Tire Clearance: 27.5 x 3.0″ or 29 x 2.5″
• Cable Routing: External
• Dropper Post Routing: Yes (Internal)
• Water Bottle Bosses: 1 and 1 Three-Pack (XS-M), 2 and 1 Three-Pack (L-XL)
• Fender/Rack Mounts: Yes
• Front Derailleur Mount: 34.9mm
• Rear Derailleur Hanger: Included
• Model Year: –
• Color: Orange
• Weight: –
