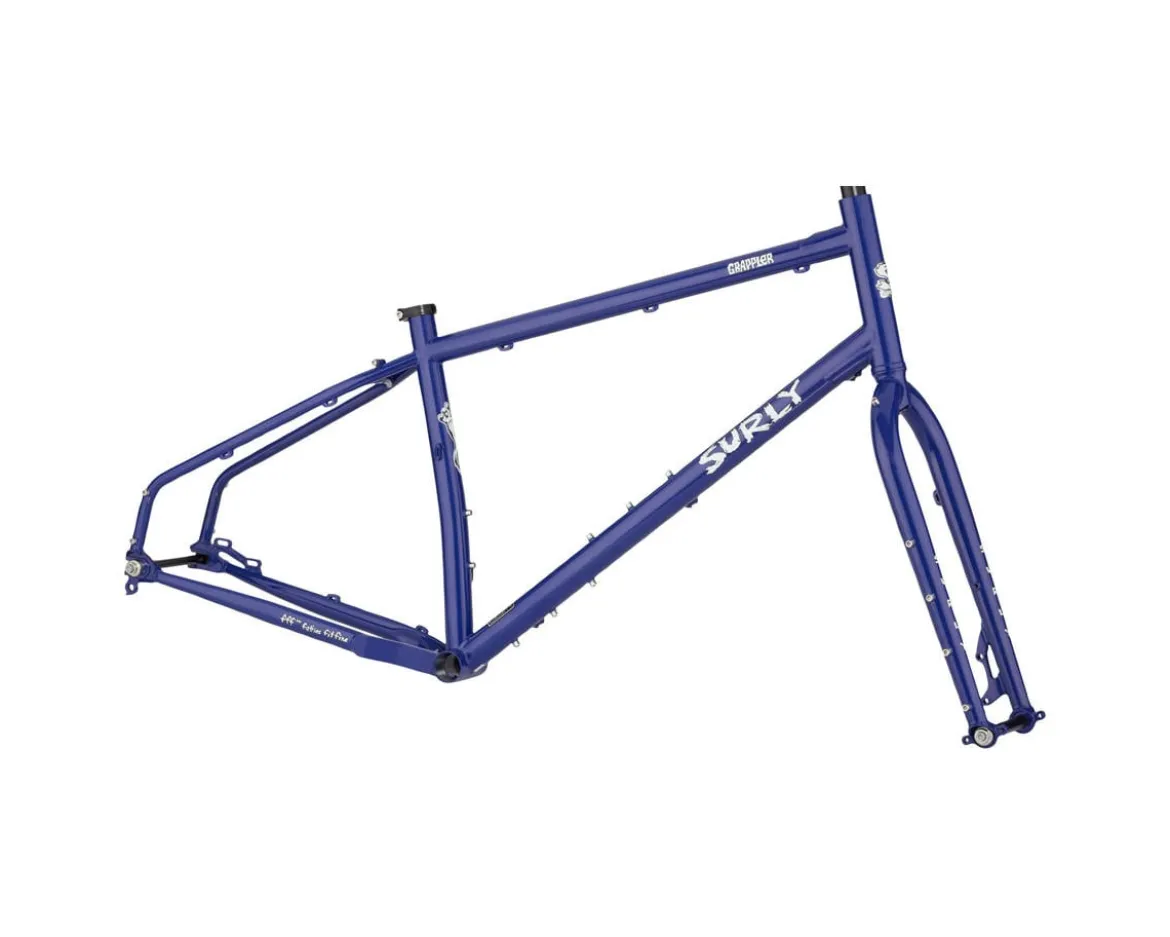

Surly Grappler Drop-Bar Trail Bike Frameset (Subterranean Homesick Blue) (XS)

Surly Grappler Drop-Bar Trail Bike Frameset Description:

The Surly Grappler (formerly known as the Ghost Grappler) is engineered first and foremost around a stable and comfortable drop-bar hand position, with its trail-ready frame geometry providing a spirited ride on single track, double track, gravel roads, and anything in between. Cleared for girthy tires and decorated with an array of mounts for hauling your daily provisions and overnight gear, the Grappler is ready to take you and your paraphernalia down that overgrown fire road into the unknown for an extrasensory experience. There’s nothing to be afraid of. Probably.

Features:

• 100% Chromoly steel frame and fork with a double-butted front triangle and down tube gussets for added strength
• Surly Gnot-Boost spacing allowing riders to run 142mm or boost 148mm rear hubs

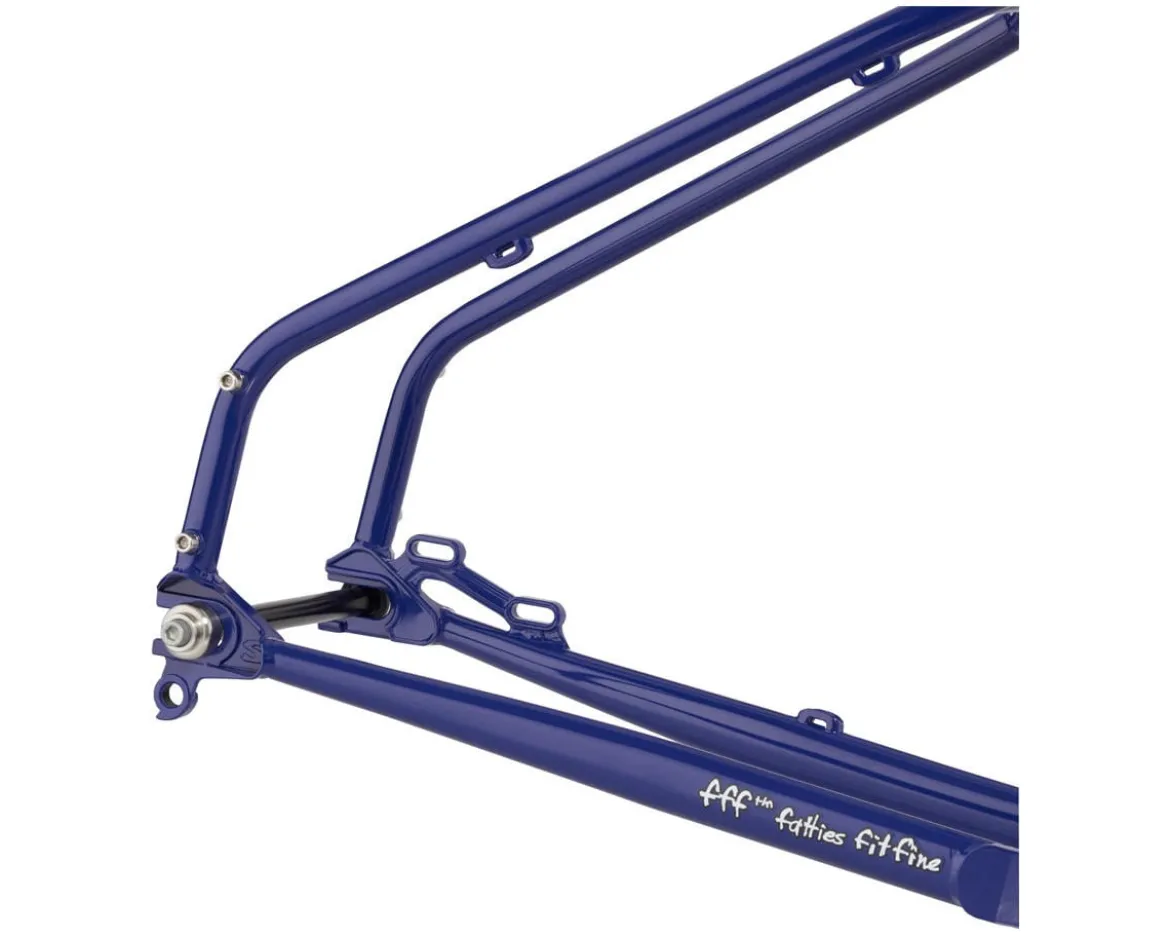

• Custom horizontal slotted dropouts ready to run single-speed or internally geared hub set-ups
• Seattube bottle bosses (on sizes S – XL), plus three-pack mounts at the top and bottom of the down tube
• Full complement of rack and fender mounts on both the rear triangle of the frame and on the fork
• Additional mounts on both fork blades for low-rider racks, to carry extra hydration, or other accessories

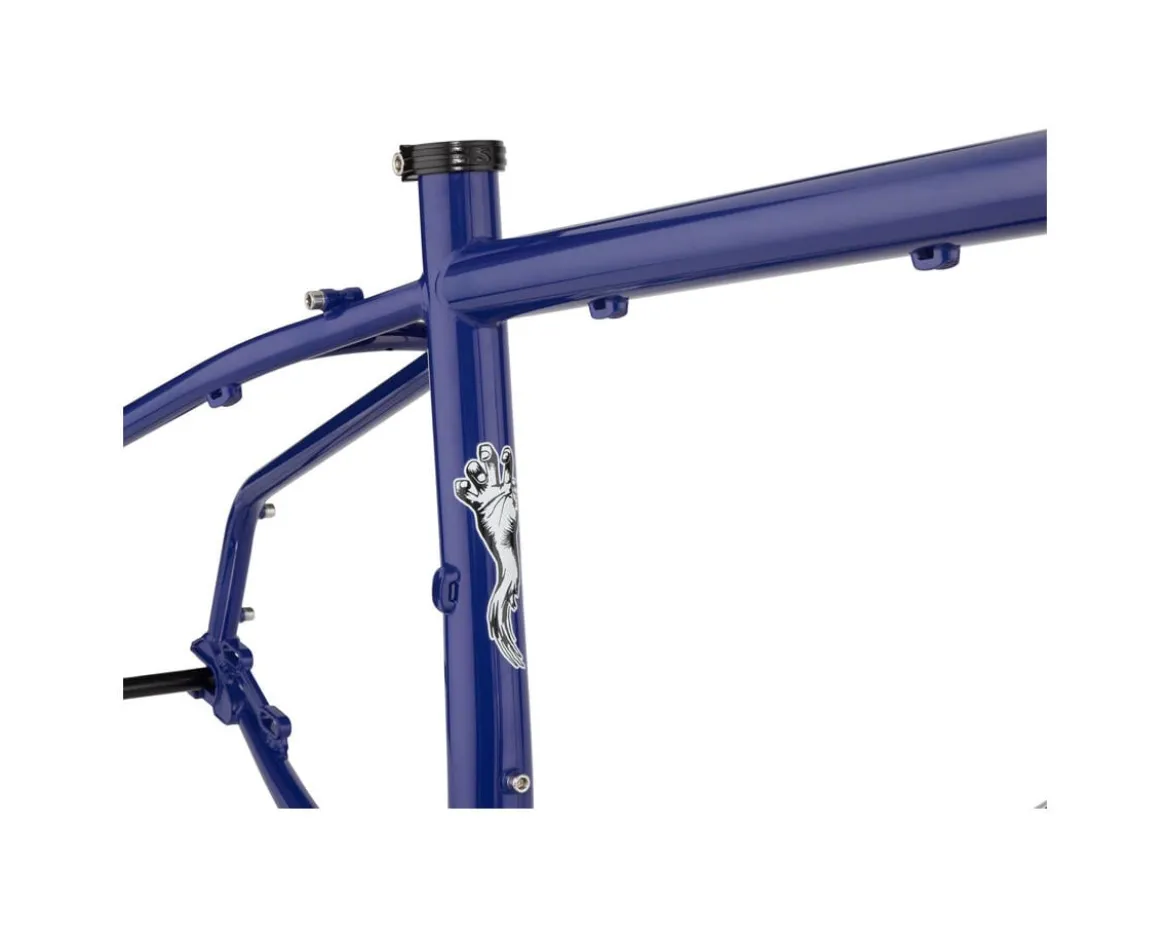

• Stealth dropper post routing on seattube allows any dropper seatpost currently available to fit this frameset
• E.D. coated frame and fork to prevent rust and for increased life expectancy
• 27.5″ x 2.8” or 29″ x 2.2″ tire clearance (without fenders) or 27.5″ x 2.6” or 29″ x 2.0″ tire clearance (with fenders)

Specifications:

• Frame Material: 100% Chromoly Steel (Double-Butted Main Triangle) (Gnot-Boost Rear Spacing, 142 or 148mm) (Thru Axle) (Post-Mount) (Threaded Bottom Bracket) (Rack, Fender Mounts) (Internal Dropper Post Routing)
• Fork Material: 100% Surly Chromoly Steel fork (Natch Tubing) (Double-Butted & Tapered Fork Blades) (TIG Welded) (E.D. coated) (Boost Spacing w/ Thru Axle)
• Headset: Not Included
• Headset Size: EC34/28.6 or ZS34/28.6 (Upper) | EC34/30 (Lower)
• Brake Compatibility: Disc Only (Hydraulic or Mechanical)
• Brake Mounts: 51mm IS Mount (Front & Rear)
• Rotor Compatibility: 203mm Max w/Adapters (Adapters Available Separately)
• Axle Type: Fork & Frame Thru Axles Included
• Hub Spacing: 15 x 110mm (Front) | 12 x 142mm or 12 x 148mm (Rear)
• Stem: Not Included
• Stem Size: 1-1/8″
• Seatpost: Not Included
• Seatpost Diameter: 30.9mm
• Seatpost Clamp: 33.1mm (Included)
• Bottom Bracket: Not Included
• Bottom Bracket Type: Threaded BSA
• Bottom Bracket Width: 73mm
• Drivetrain Compatibility: Can Accommodate 1x or 2x Chainrings
• Chainring Compatibility: 36T (1x; Non-Boost) | 38T (1x; Boost) | 36/26T (2x; Non-Boost) | 39/32T (2x; Boost)
• Tire Clearance (Frame): 27.5 x 2.6″ w/ Fender | 27.5 x 2.8″ w/Out Fender | 29 x 2.2″ (w/ Wheel Pulled All Of The Way Back In Dropouts)
• Tire Clearance (Fork): 27.5 x 2.6″ w/ Fender | 27.5 x 2.8″ w/Out Fender | 29 x 2.0″ w/ Fender | 29 x 2.2″ w/Out Fender
• Cable Routing: External Cable And Housing Stops
• Dropper Post Routing: Port In Seattube For Internal Dropper Post Cable Routing
• Water Bottle Bosses: 2 Mounting Positions (Size XS Only; Downtube Top and Downtube Bottom) | 3 Mounting Positions (Size S-XL: Seattube, Downtube Top, Downtube Bottom)
• Fender/Rack Mounts: Yes
• Front Derailleur Mount: High Mount Top-Pull (Ø34.9mm Clamp)
• Rear Derailleur Hanger: Integrated (Non-Replaceable)
• Model Year: –
• Color: Subterranean Homesick Blue
• Weight: –
