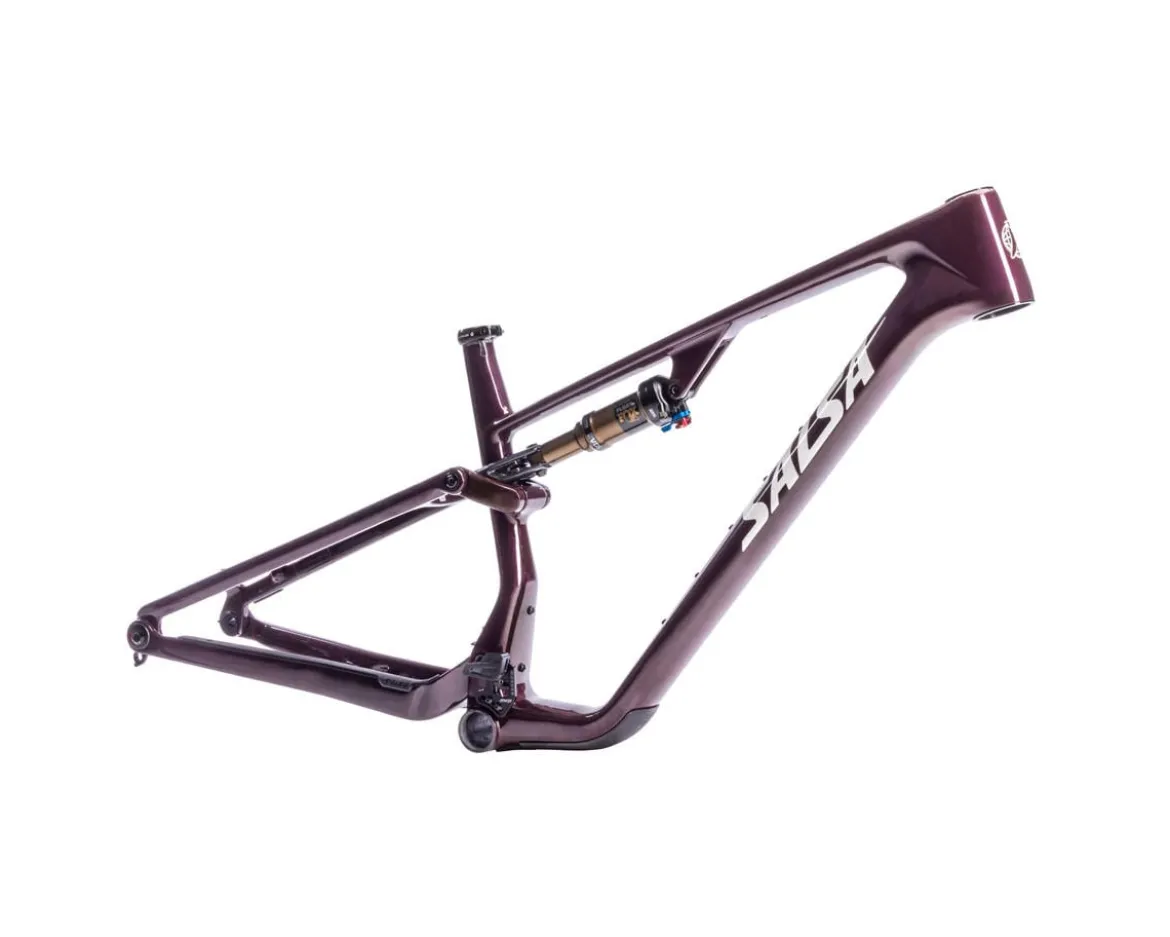

Salsa Spearfish C DLX Bike Frame (Deep Orchid Carbon) (XS)

Salsa Spearfish C Deluxe GX AXS Transmission Mountain Bike Description:

The Salsa Spearfish C Deluxe GX AXS Transmission Mountain Bike is designed to be a highly adaptable bike that can be set up as an XC racing, endurance XC, down-country, or local trail crushing rig. This bike sports a Deluxe carbon frame construction, which shaves 250 grams off the standard Spearfish C frame, and the rear triangle is equipped with a responsive Split Pivot design that effectively isolates the braking forces from the pedaling forces, so the rear suspension will remain supple and glued to the ground even under heavy braking. Unique to shorter travel bikes, a Flip Chip is incorporated into the aluminum upper link to let the rider adjust the handling characteristics of the bike to suit personal preferences and/or fine-tune the bike to suit whatever the terrain is demanding out of the setup. Controlling the squish is a Float SL Factory EVOL LV rear shock that will ensure rear wheel travel behaves as the rider desires.

Features:

• Deluxe carbon fiber frame — Salsa’s most premium carbon construction ever, saving 255 grams over the standard carbon frame with no penalty in durability, stiffness, or ride quality

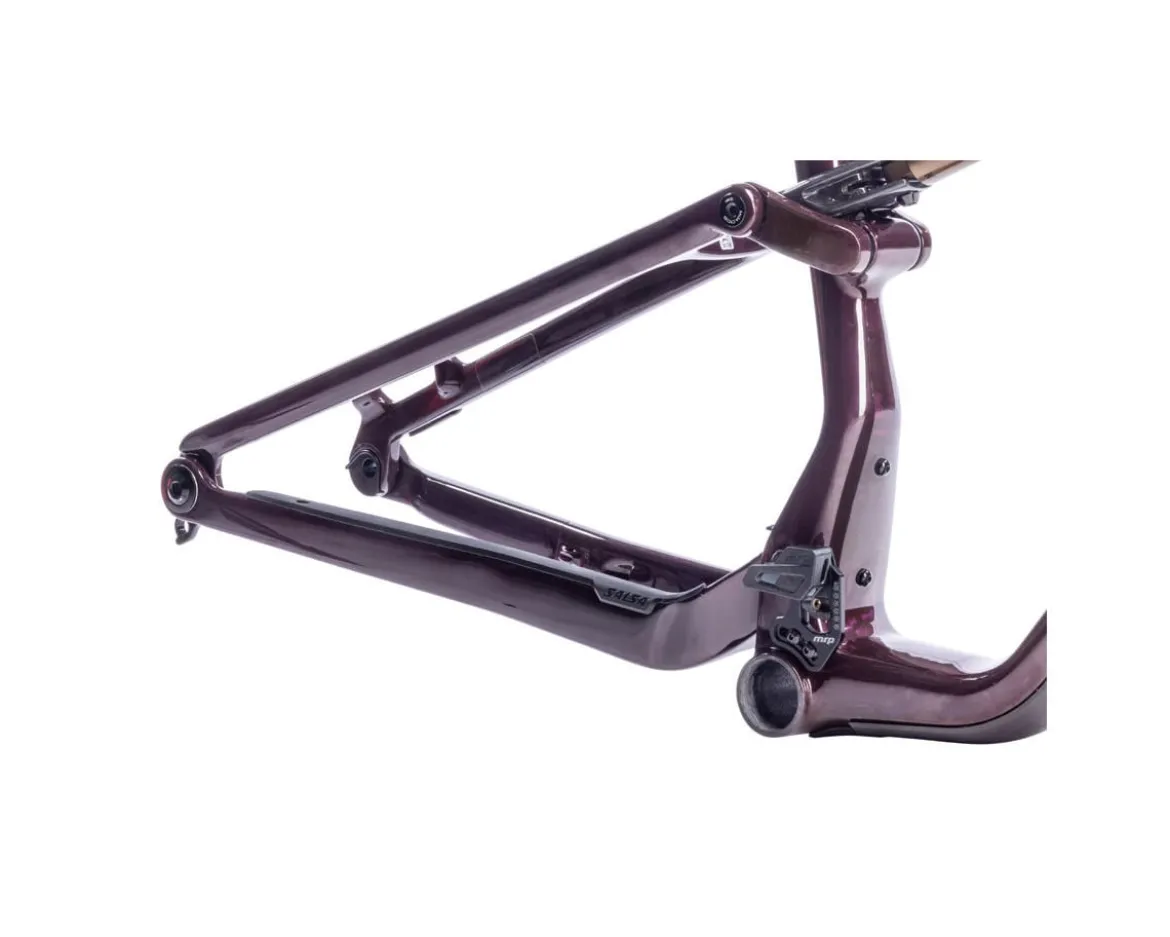

• Split Pivot suspension design features 120mm of travel that’s responsive when putting down power, fully active under braking, and supportive throughout the middle and end of its stroke
• Split Pivot + design philosophy lets riders adjust rear travel from 100–120mm; compatible with 100–130mm forks
• Endurance XC geometry with 66.3-degree head tube angle and 77.3-degree seat tube angle
• Rear flip chip adjusts the head tube angle and bottom bracket height to accommodate varying terrain and personal preference
• Sizes XS–SM fit two full-size bottles, plus accessory mount; sizes MD–XL fit three full-size bottles
• Top tube mounts for use with EXP-R Series Trillium Top Tube Bag or K-Edge computer mounts
• Tool and tube mount location
• Clearance for up to 29 x 2.4″ tires
• Molded frame protection

Specifications:

• Frame Material: Spearfish Carbon Deluxe (High-Modulus Carbon)

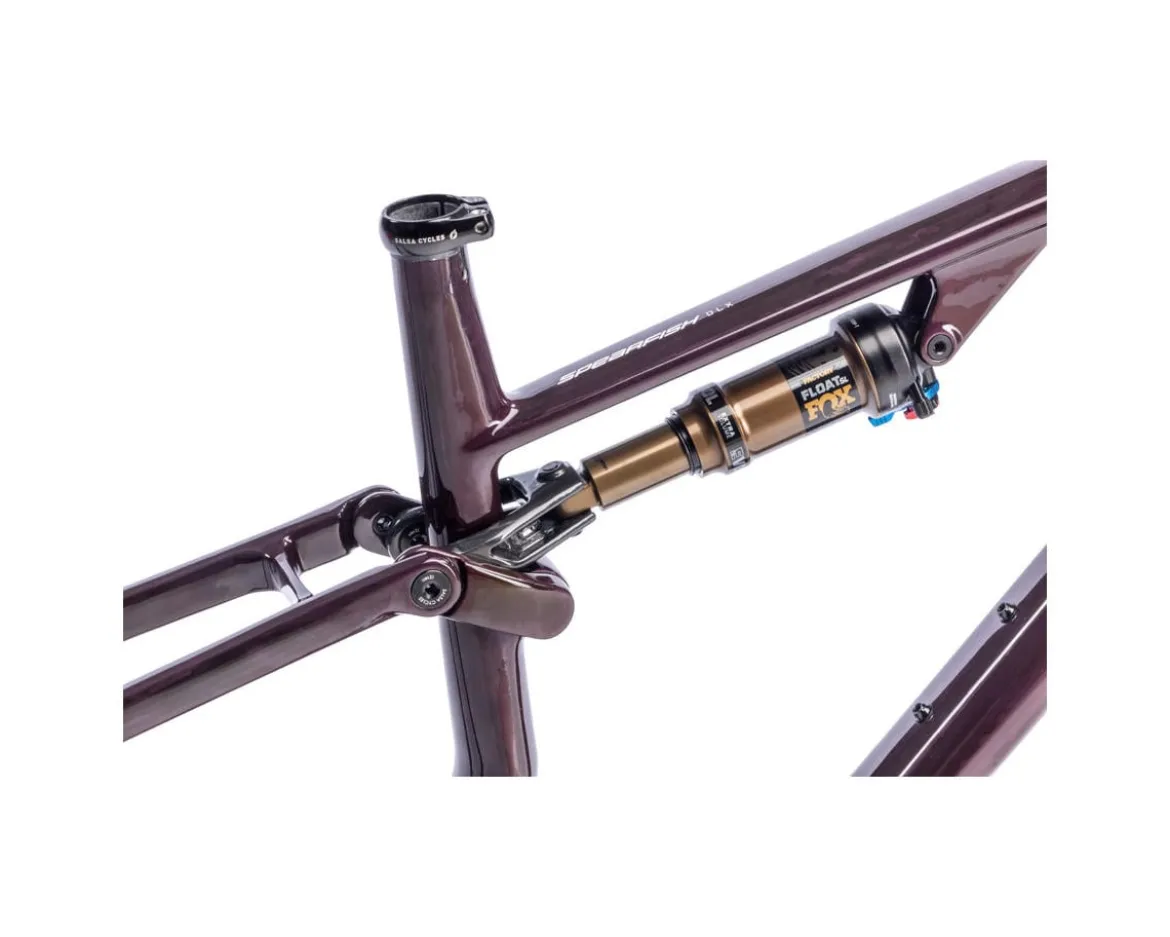

• Shock: Fox Float SL Factory, EVOL LV (190 x 45mm)
• Headset:FSA Orbit 1.5E ZS NO.57E (Included)
• Headset Size: ZS44/28.6 (Upper), ZS56/40 (Lower) (Tapered) (1-1/2” to 1-1/8”)
• Brake Compatibility: Disc Only (Hydraulic or Mechanical)
• Brake Mounts: Post Mount (74mm)
• Rotor Compatibility: 180-200mm (Rear)
• Axle Type: Thru Axle
• Hub Spacing: 12 x 148mm (Rear)
• Stem: Not Included
• Stem Size: 1-1/8″ Steerer
• Seatpost: Not Included
• Seatpost Diameter: 30.9mm
• Seatpost Clamp: Included (Alloy) (30mm)
• Bottom Bracket: Not Included
• Bottom Bracket Type: BB92 Press-Fit
• Bottom Bracket Width: 92mm
• Drivetrain Compatibility: 1x Electronic & Mechanical
• Chainring Compatibility: 34T Max. (55mm chainline)
• Tire Clearance: 29 x 2.4″
• Cable Routing: Internal
• Dropper Post Routing: Yes (Mechanical port on top of downtube)
• Water Bottle Bosses: 3 Mounting Positions (Seattube, Downtube Top, Top Tube Top)
• Fender/Rack Mounts: No
• Front Derailleur Mount: –
• Rear Derailleur Hanger: Included (UDH)
• Model Year: 2026
• Color: Deep Orchid Carbon
• Weight: 5 lb 10 oz (M, includes shock, seat collar, UDH, rear axle, and headset) (56cm)
