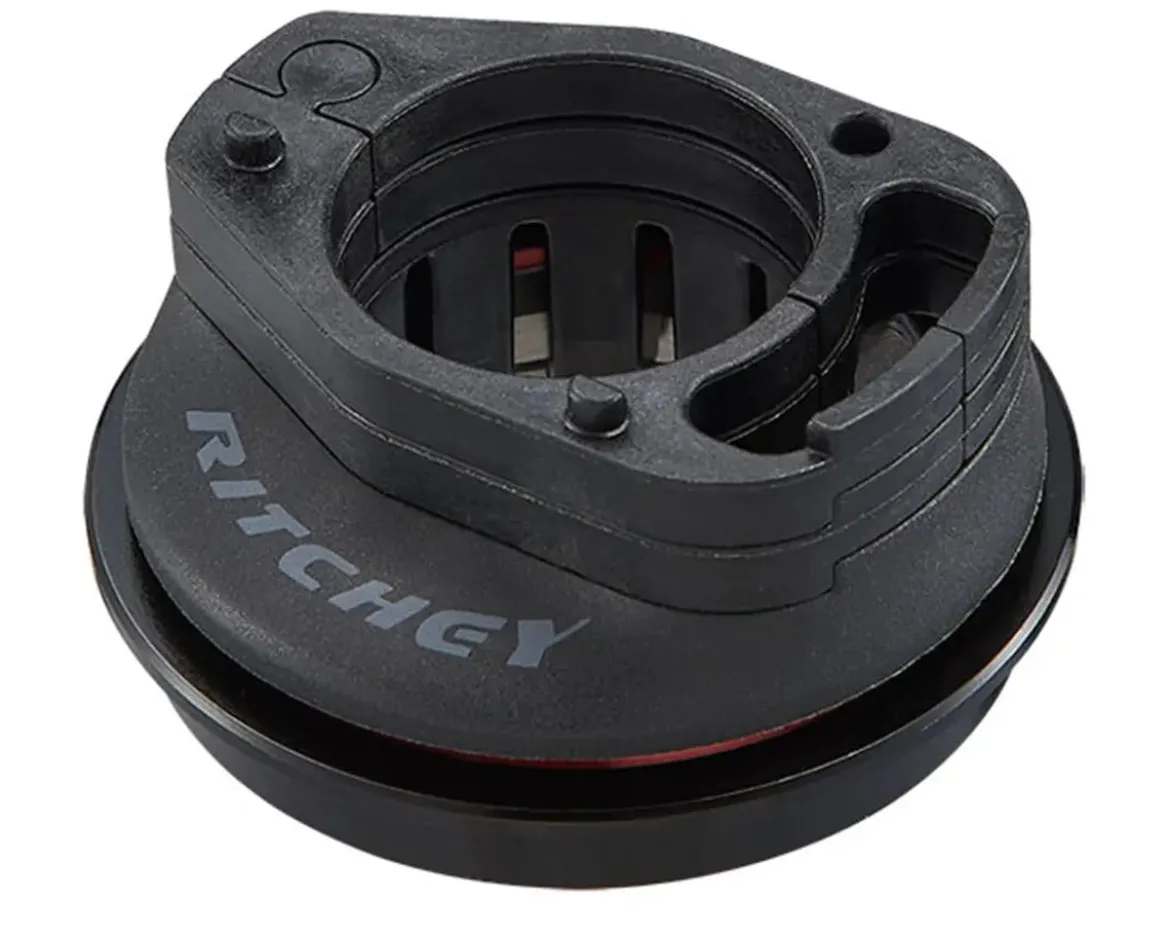

Ritchey Switch Upper Headset (No Cable Guide) (ZS56/28.6)

The Ritchey Logic Switch Upper Headset Description:

The Ritchey Logic Switch Upper Headset is designed to specifically work with the Ritchey Switch Stem to seamlessly route cables, wires and hydraulic lines from the handlebar into the bicycle frame. Initially the cables are routed through the handlebar and stem before travelling through an opening in the front of the Switch headset spacers. The cables then pass through two channels on the top of the headset and into the frame before they continue their journey through the frame to the brakes or the derailleurs. This system eliminates any interference with the bearings from cables, wires, or lines passing through the headtube.

Note: Switch IS52 headset requires a bearing insertion depth of 8.7mm for the closest fit, please check with your frame manufacturer for compatibility

Features:

• Elegantly routes cables through headset
• 51.80/40mm 45°/45° – sealed cartridge bearing
• Two 5mm 2-piece interlocking spacers included
• Compression cap NOT included

Specifications:

• Bearing Type: Sealed Cartridge (ACB)
• Headtube ID: 52mm (IS) or 55/56mm (ZS)
• S.H.I.S.: IS52/28.6 (1.5”) | ZS55/28.6 (1.5”) | ZS56/28.6 (1.5”)
• Stack: 21.7mm (IS) or 23.7mm (ZS)
• Color: Black
• Weight: 54g
