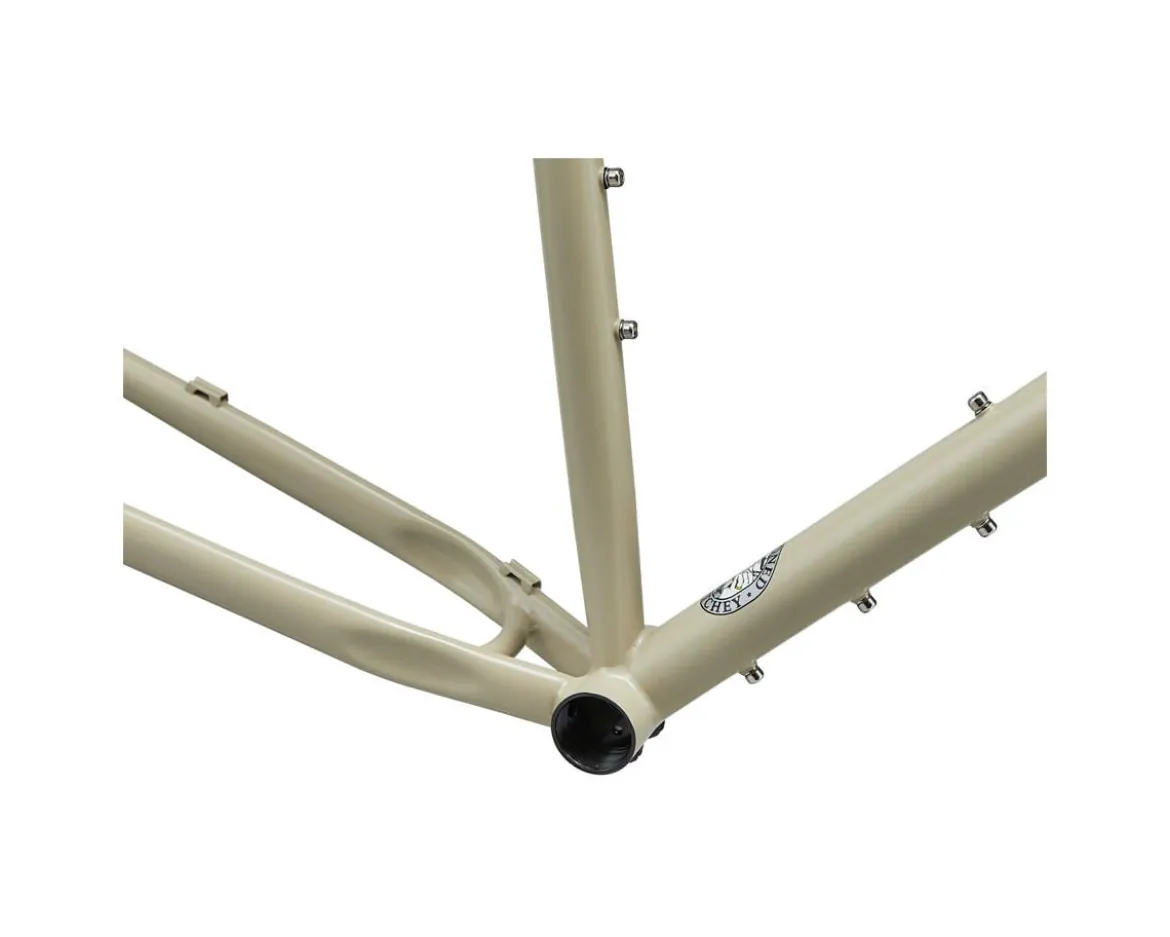

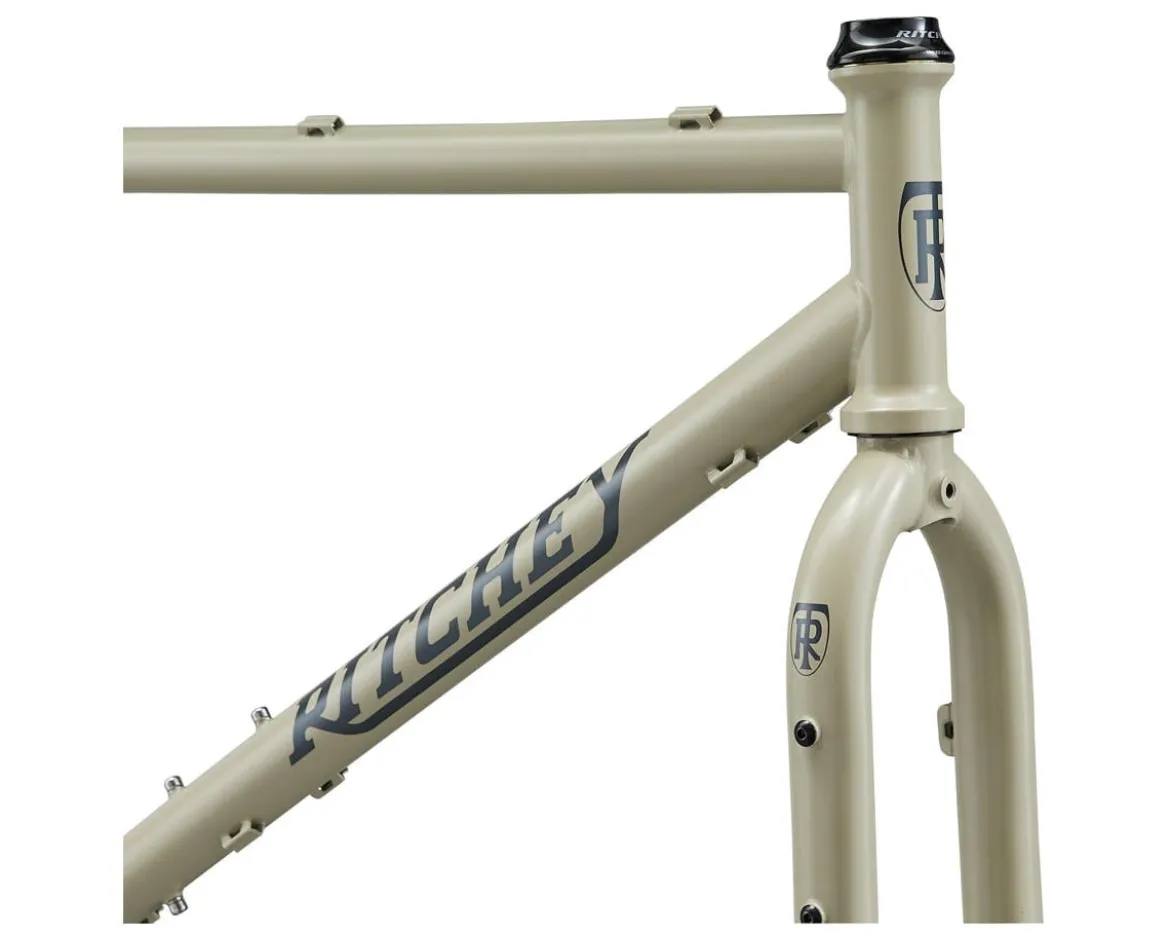

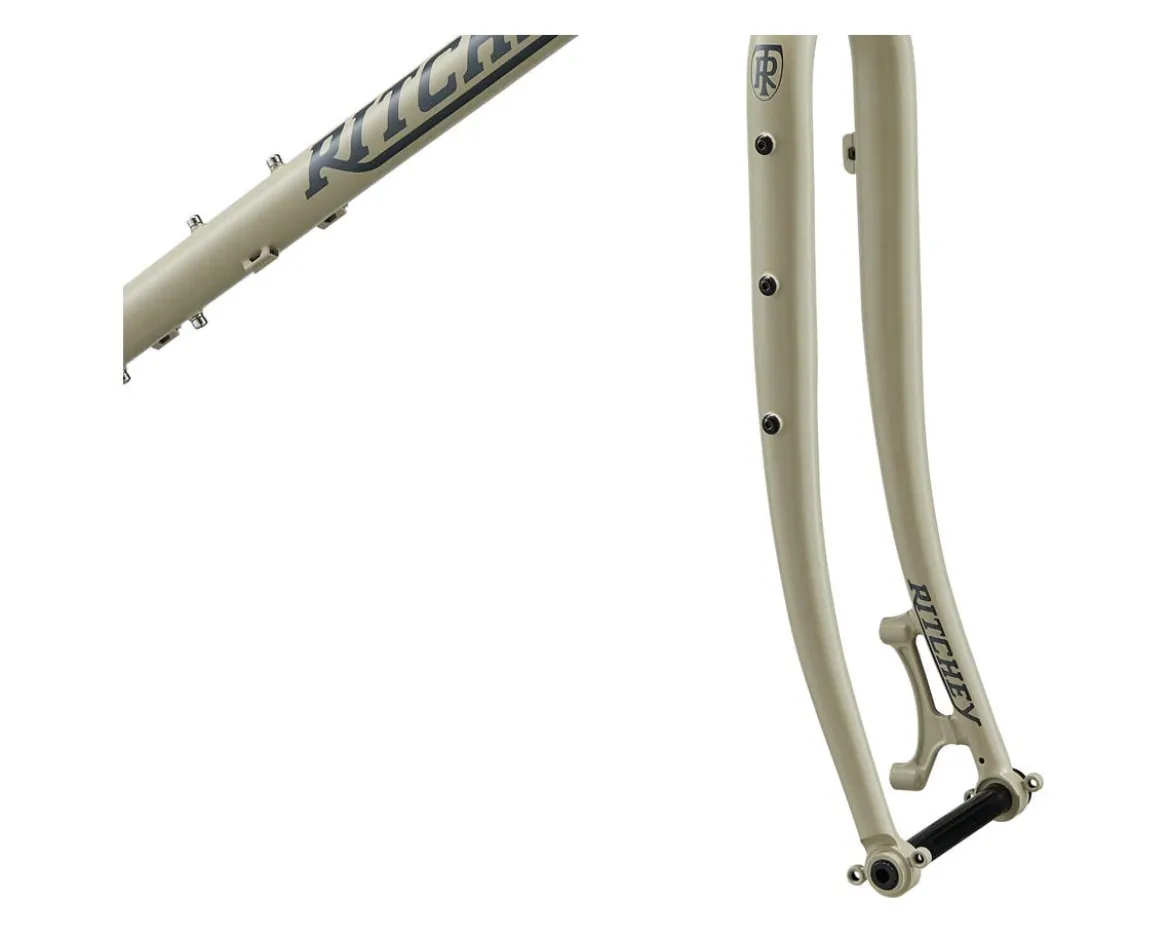

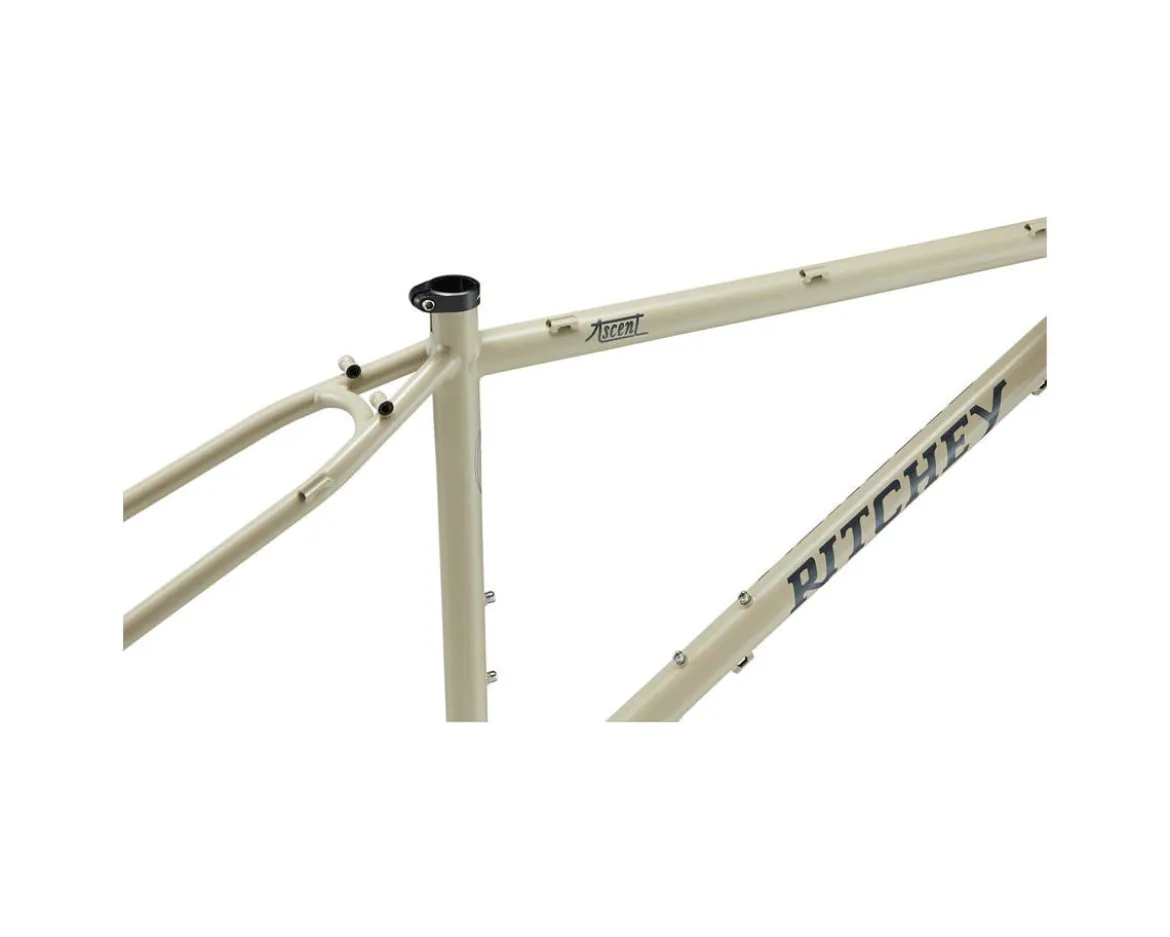

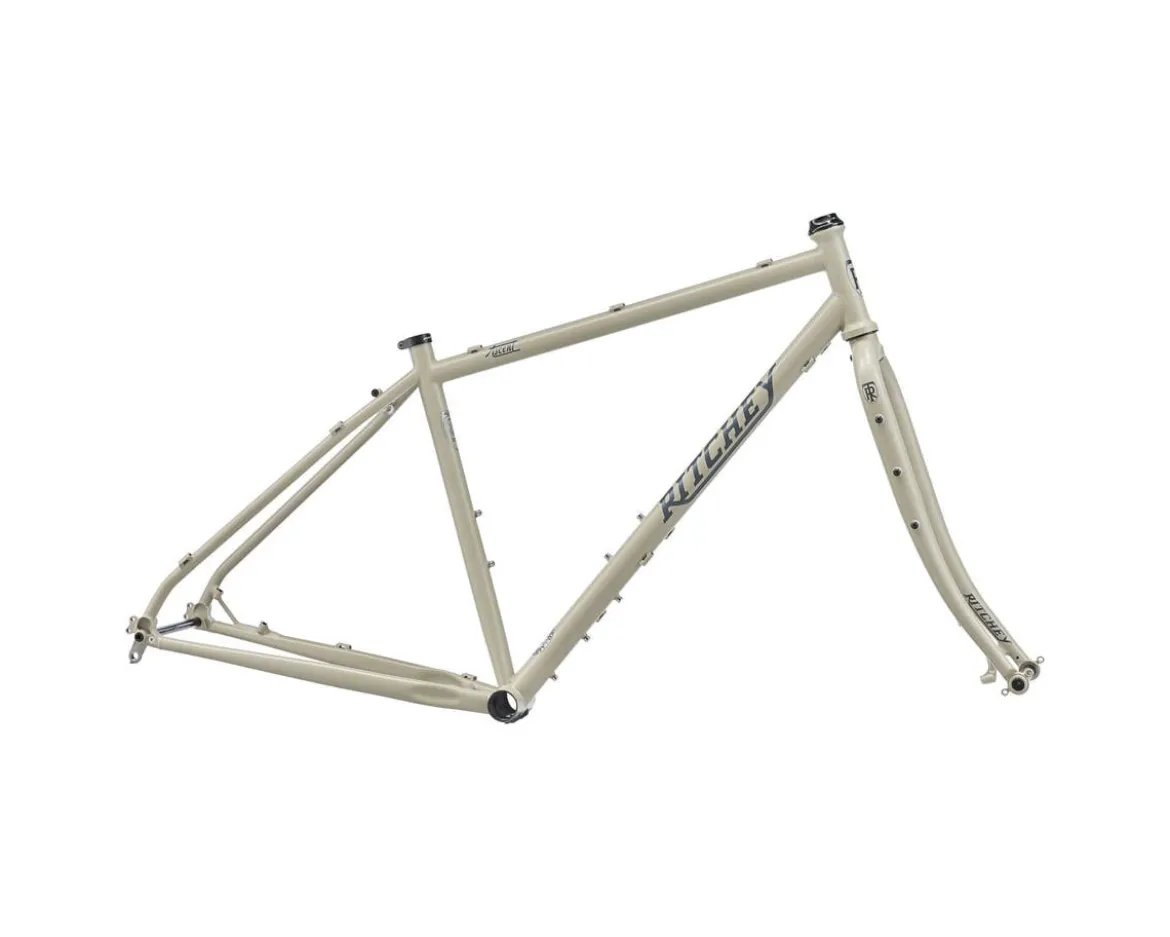

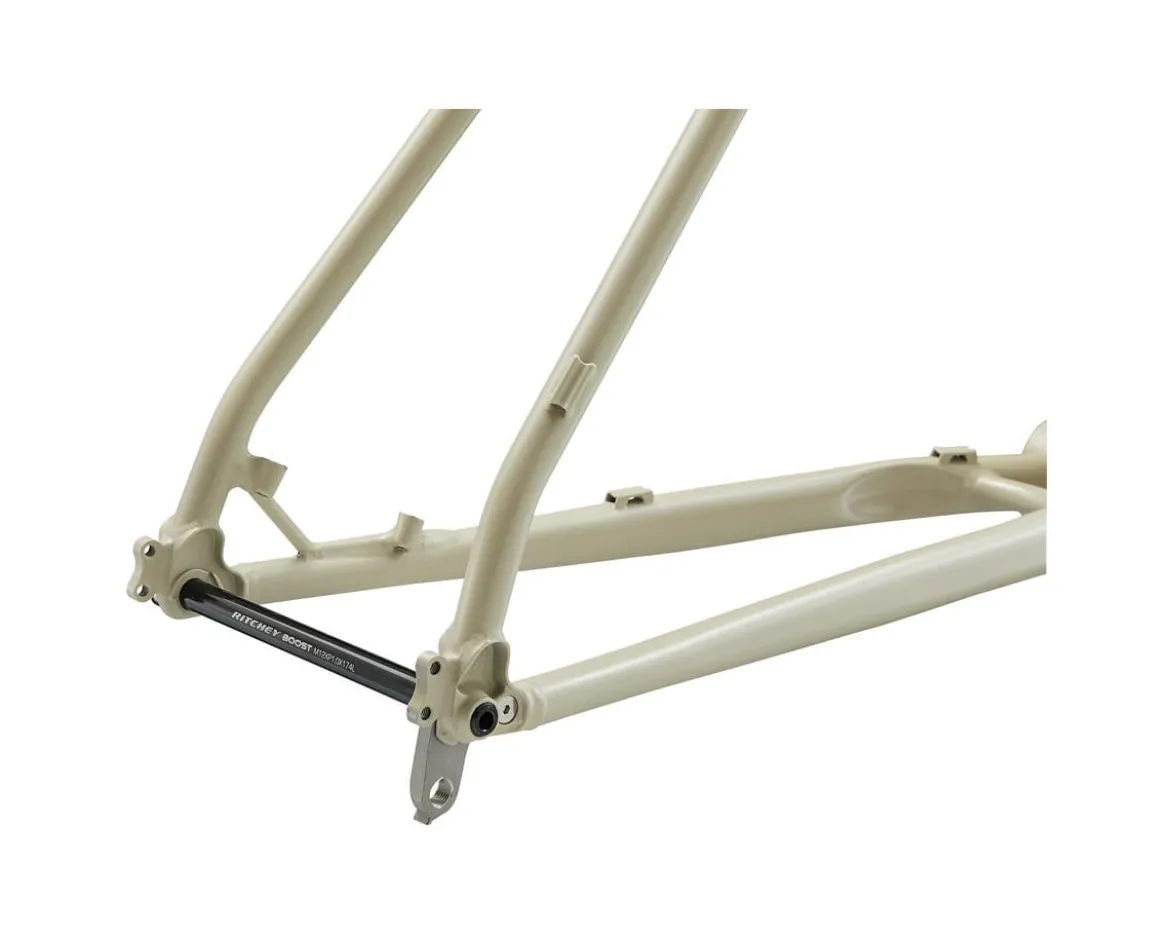

Ritchey Ascent Disc Frameset (Desert Dust) (S)

Ritchey Ascent Frameset Description:

The legendary Ritchey Ascent is officially back to bring joy to all who seek the untamed trails and twisting roads! Retaining its tried-and-true geometry, the Ascent has been updated with modern features such as Boost spacing complete with thru axles as well as a specially designed Ritchey steel fork for the ideal balance between feel and application. This frame is compatible with both 29″ (700c) and 27.5″ (650b) wheel sizes to perfectly adapt to the intended riding discipline whether that be mountain biking oriented adventures or long tours on roads rough and smooth. Rack and fender mounts, 3 multi-purpose mounts, a threaded crown port, and 2 bottle mounts provide a plethora of packing and hydration options for souls longing to get out and explore. Build your dream bike and embrace limitless possibilities with the Ritchey Ascent Frameset.

Features:

• Same tried and true geometry, but with modern features
• 29″ (700c) and 27.5″ (650b) wheel size compatible
• Clearance for up to 2.6″ wide tires
• 3 mounts on each blade of the fork for extremely versatile mounting options
• Fork crown is drilled for a rack or dynamo light setup
• Two dedicated water bottle mounts on the front triangle provide plenty of options for hydration while a triple mount underneath the downtube increases packing abilities
• Optimized for almost any chainring configuration in both single or double chainring setups
• Both fender and rack mounts located on the rear of the frame
• Replaceable stainless steel derailleur hanger
• 52mm chainline

Specifications:

• Frame Material: Ritchey Heat-Treated, Triple-Butted Ritchey Logic Steel Tubing (TIG Welded)
• Fork Material: Ritchey Steel Fork (Rack and Fender Mounts) (300mm Steerer Tube Length)
• Headset: WCS Integrated Headset Included
• Headset Size: IS42 /28.6 – 16mm Stack Height (Upper) | IS42/30 (Lower)
• Brake Compatibility: Disc Only (Hydraulic or Mechanical)
• Brake Mounts: Post Mount
• Rotor Compatibility: 160mm (180mm Max in front w/Adapters – Available Separately)
• Axle Type: Fork and Frame Thru Axles Included
• Hub Spacing: 15 x 110mm (Front), 12 x 148mm (Rear)
• Stem: Not Included
• Stem Size: 1-1/8″
• Seatpost: Not Included
• Seatpost Diameter: 27.2mm
• Seatpost Clamp: Included w/ Frame (6 Nm Max Torque)
• Bottom Bracket: Not Included
• Bottom Bracket Type: Threaded BSA
• Bottom Bracket Width: 73mm
• Drivetrain Compatibility: Can Accommodate 1x or 2x Chainrings
• Chainring Compatibility: 24T – 40T (1x) | 24/34T – 28/38T (2x)
• Tire Clearance: 27.5″ x 2.6″ | 29″ x 2.6″ (depending on tire/rim manufacturer)
• Cable Routing: External Cable And Housing Stops
• Dropper Post Routing: No
• Water Bottle Bosses: 3 Mounting Positions (Seattube, Downtube Top, Downtube Underside)
• Fender/Rack Mounts: Yes
• Front Derailleur Mount: 28.6mm Clamp
• Rear Derailleur Hanger: Replaceable Stainless Steel Derailleur Hanger Included
• Model Year: 2024+
• Color: Desert Dust
• Weight: Frame – 2400g (Size: L) (w/Out Thru Axle); Fork – 1125g (un-cut steerer tube) (w/Out Thru Axle)
