Park Tool PRS-30 Mechanical Lift Repair Stand (Blue)

Park Tool PRS-30 Mechanical Lift Repair Stand Description:

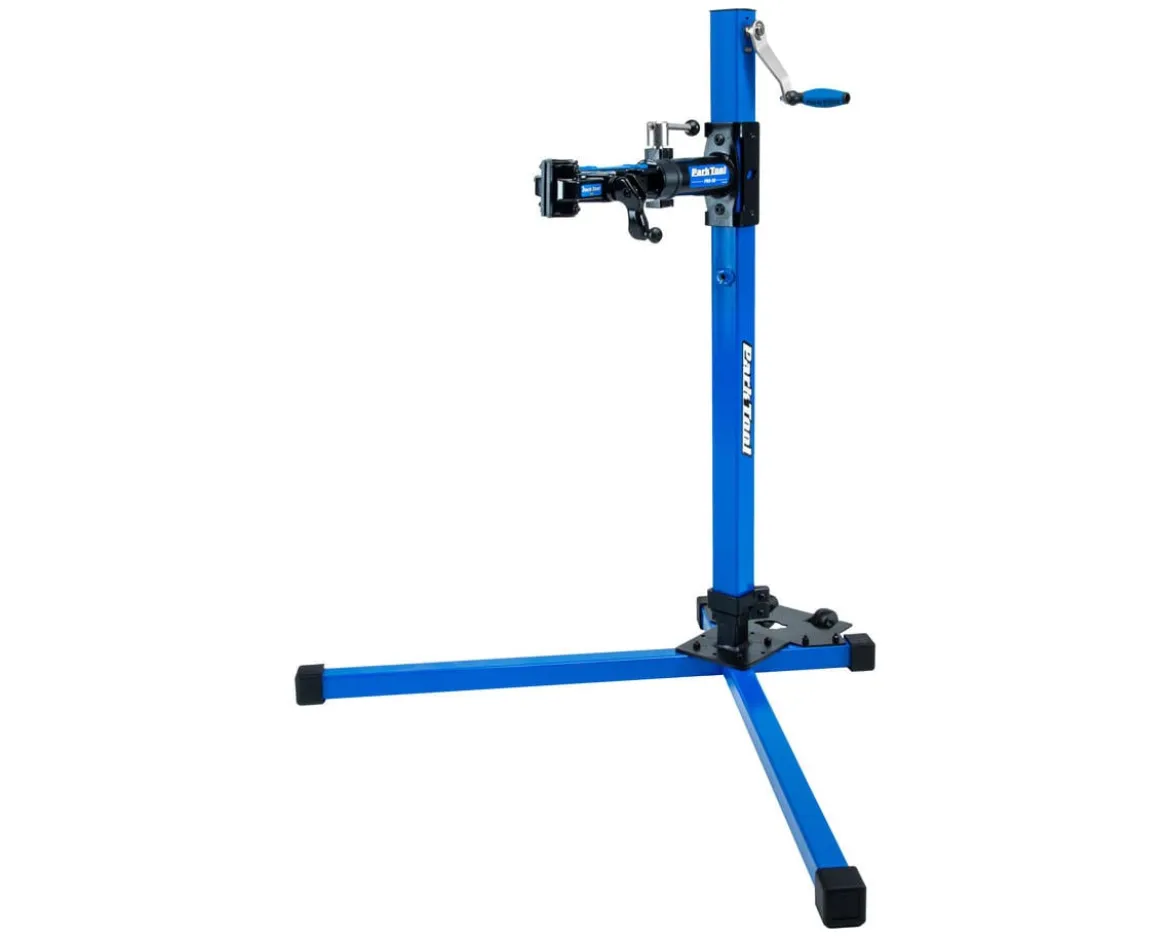

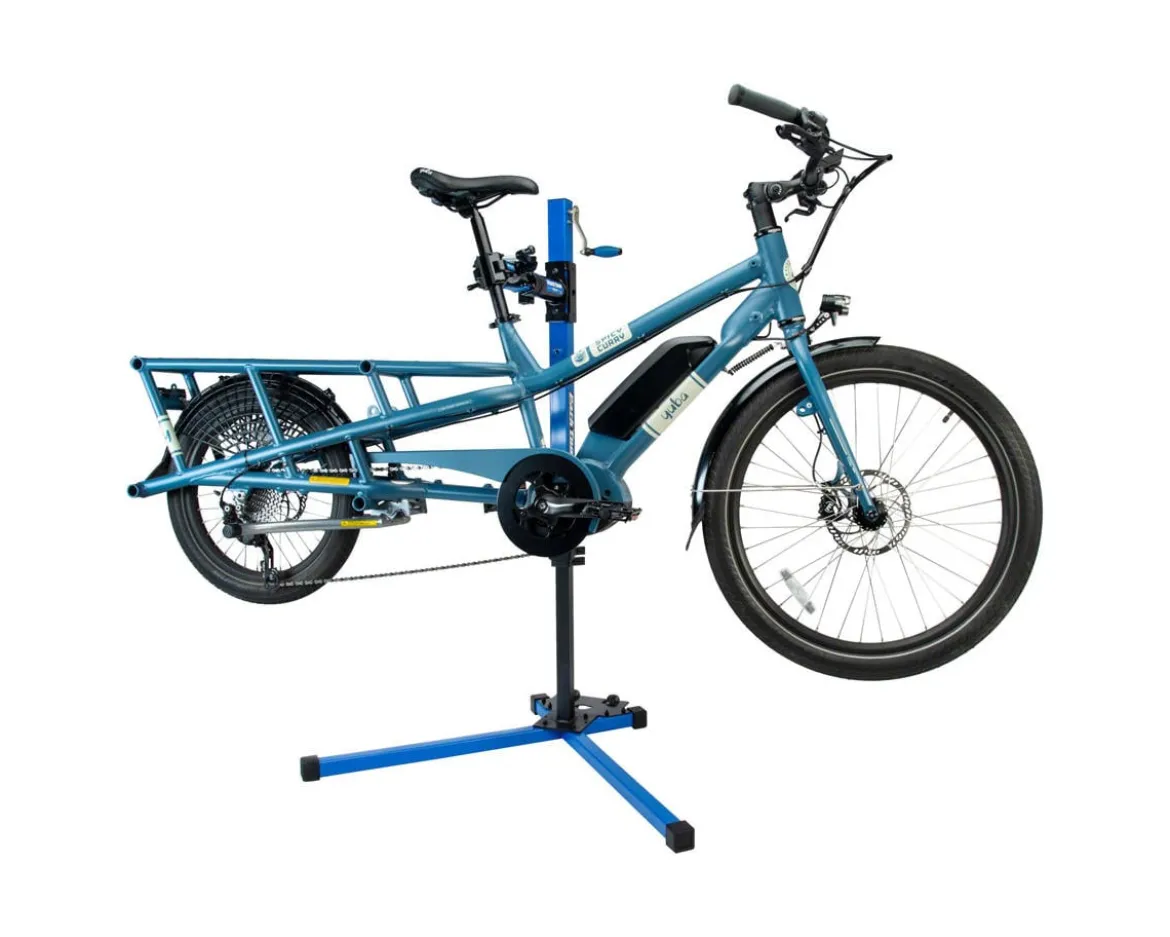

The Park Tool PRS-30 Mechanical Lift Repair Stand is a robust repair stand with a built in mechanical assist that allows heavy bicycles and E-Bikes to be easily positioned for maintenance without having to struggle to lift the bike up first. Robust all steel construction, a professional grade clamp just like those used in bike shops, and a unique internally geared mechanism combine to lower and raise a bike with a simple turn of a hand crank; the hand crank can even be swapped out for a battery powered hand drill and a 10mm socket for a truly effortless operation (drill and socket are not included). The highly adjustable clamp fits around a wide range of seatpost diameters and shapes, and once the bike is secured into the clamp and raised up, very sturdy legs and a wide footprint keeps everything stable as work is being performed. Best of all, once the work has been completed, the stand has integrated wheels in the base that allows for easy maneuvering of the stand so it can be moved out of the way until it is needed again.

Features:

• Constructed out of all-steel components and powder coated for a lifetime of use

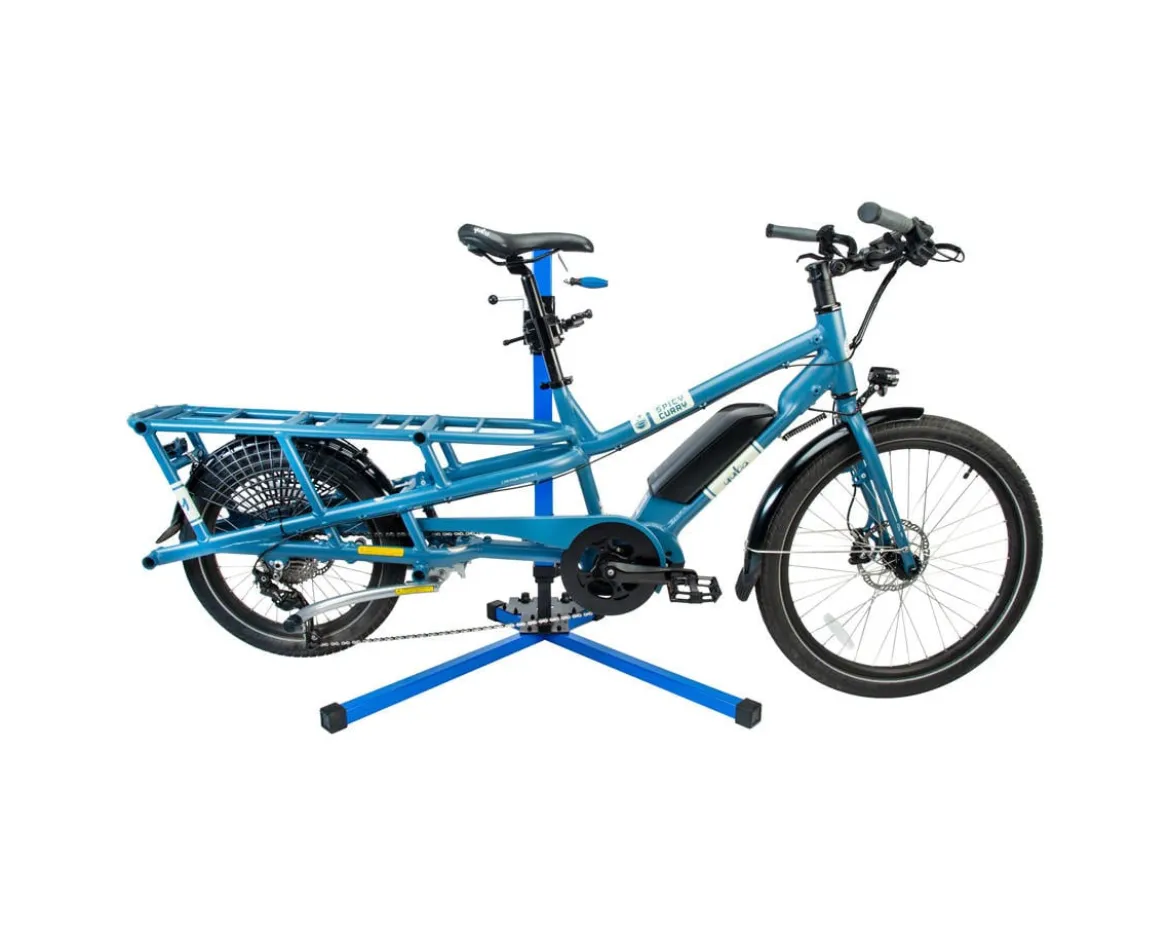

• Sturdy legs with a wide footprint similar to conventional portable stands provides excellent stability even when loaded with a heavy E-bike
• Professional grade clamp can be mounted to stand in two locations and can be dropped as low as 25″ (64 cm) above the ground to enable clamping onto the seatpost (or very carefully on a frame) without needing to lift the bike off the ground
• 23″ (58cm) of height adjustment to achieve a comfortable position to perform the maintenance or repair

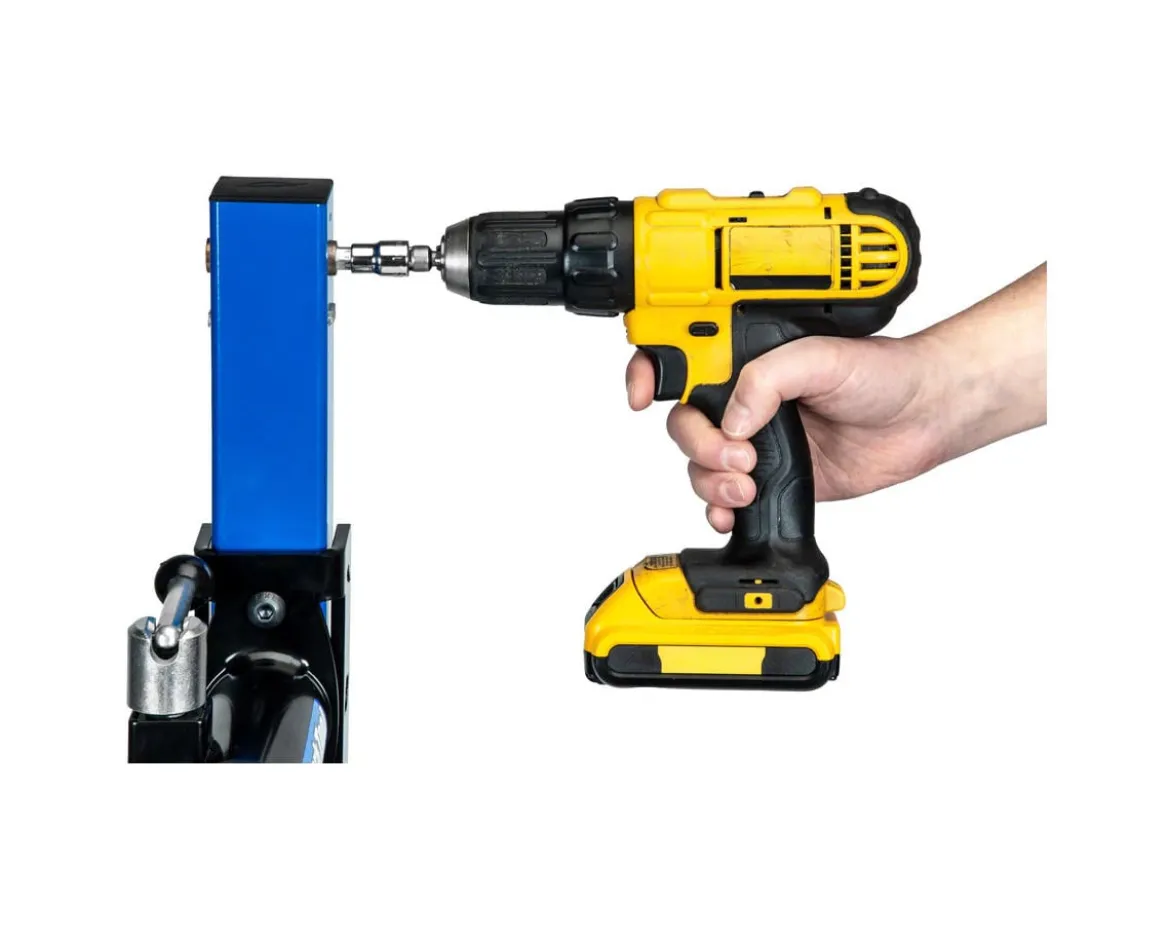

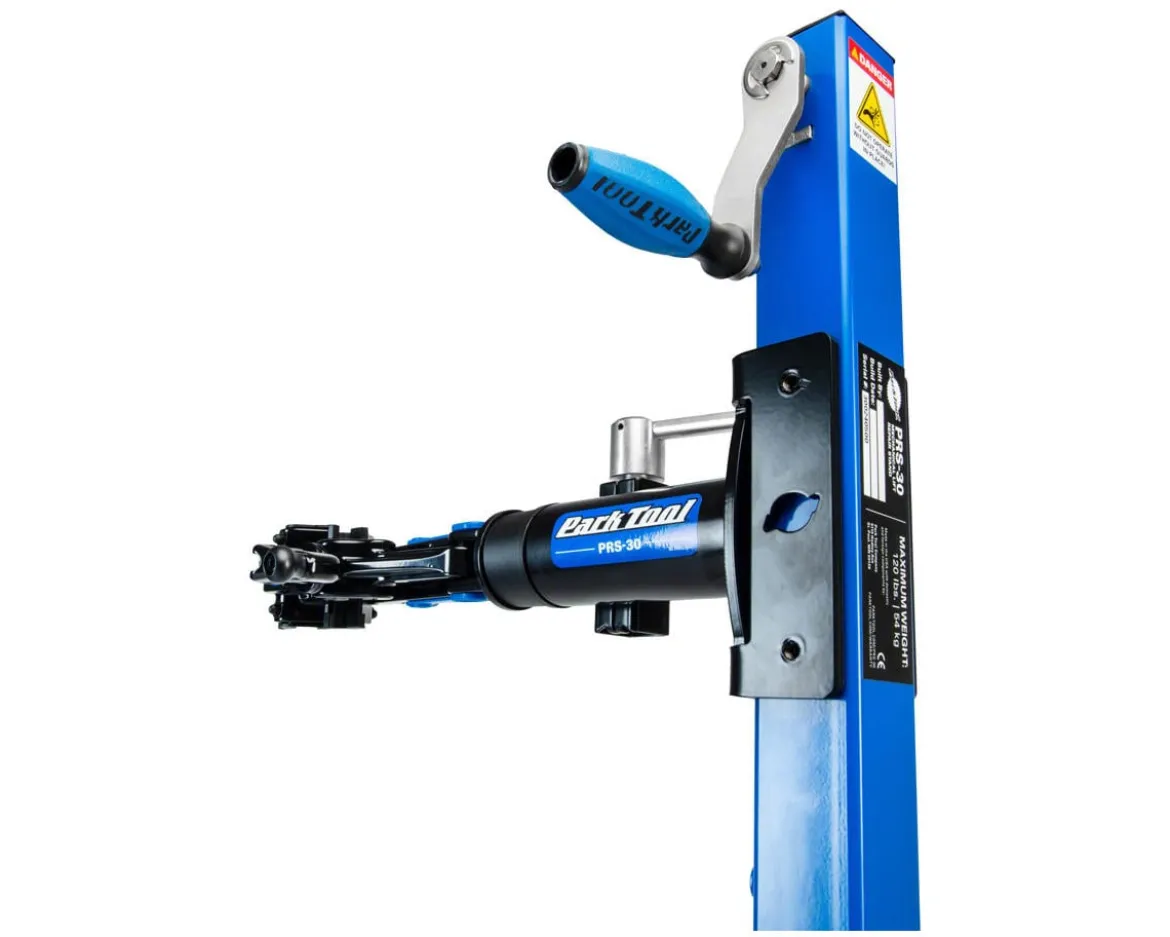

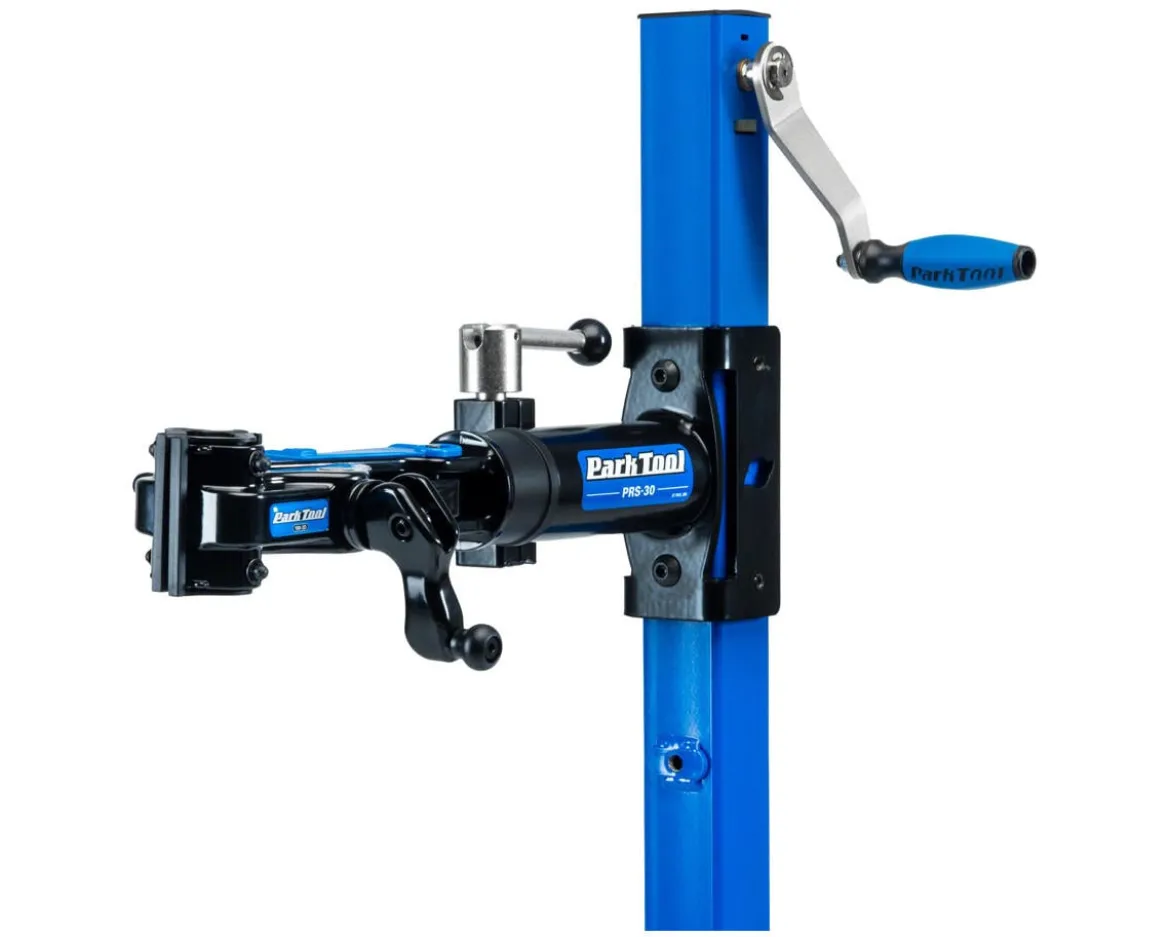

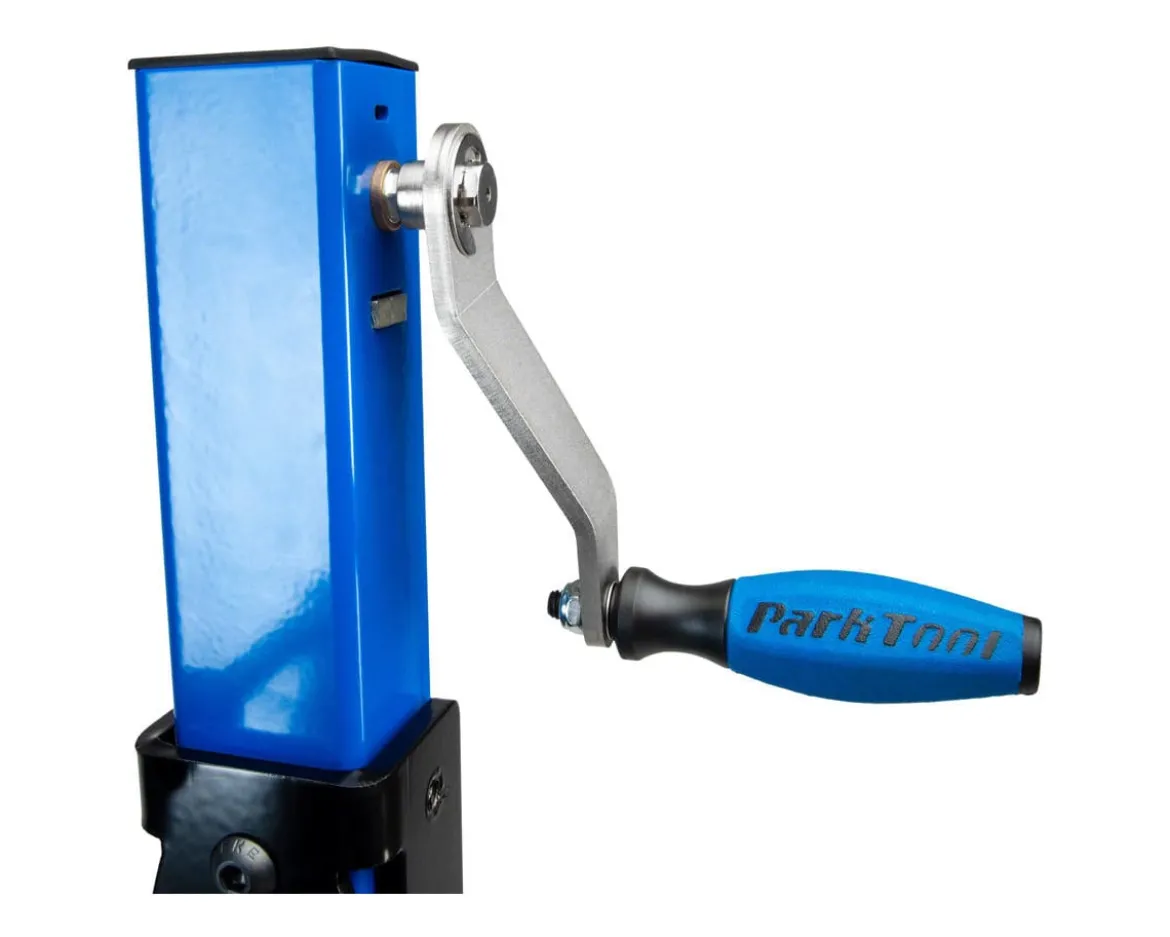

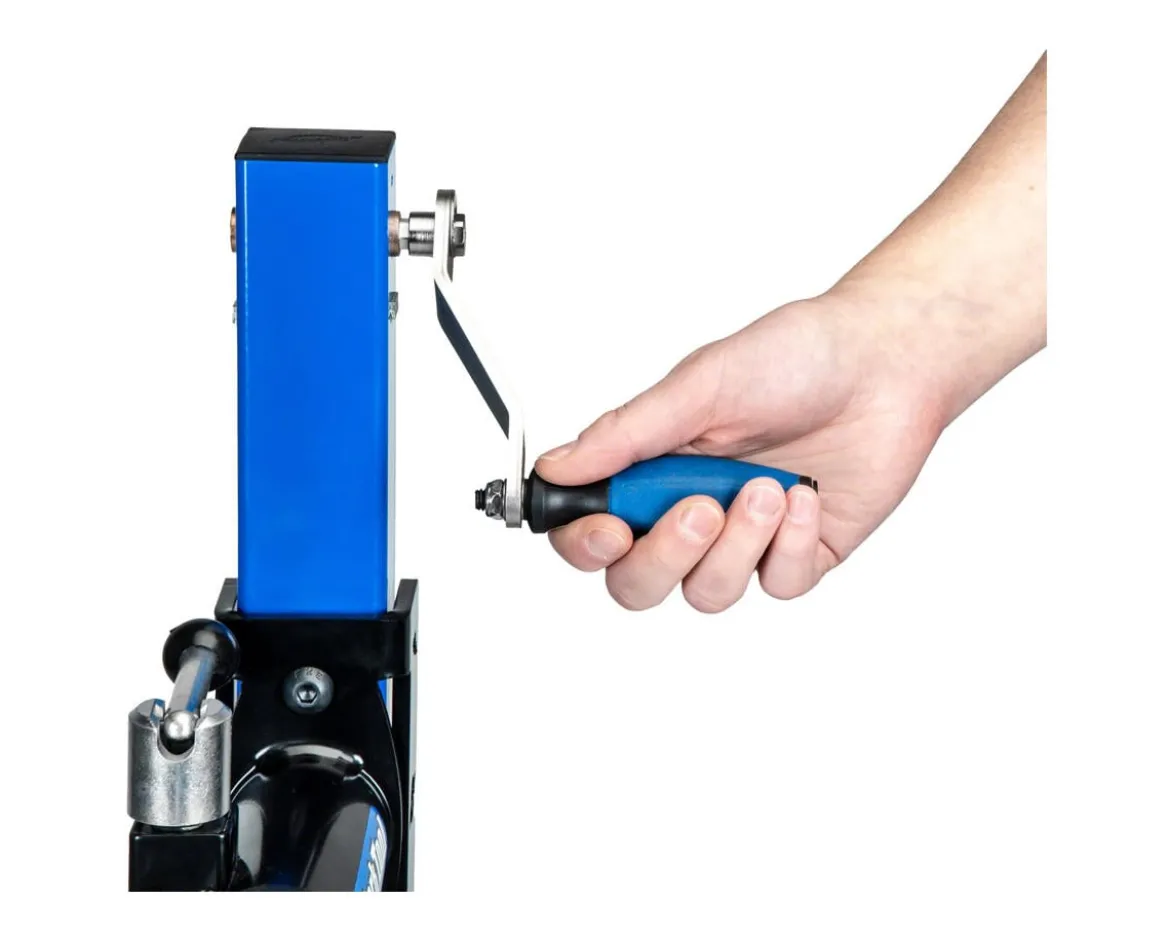

• An internally-geared mechanism driven by a simple hand crank easily adjusts the height; height adjustment also can be achieved using battery-operated drill outfitted with an 10 mm socket (drill and socket not included)

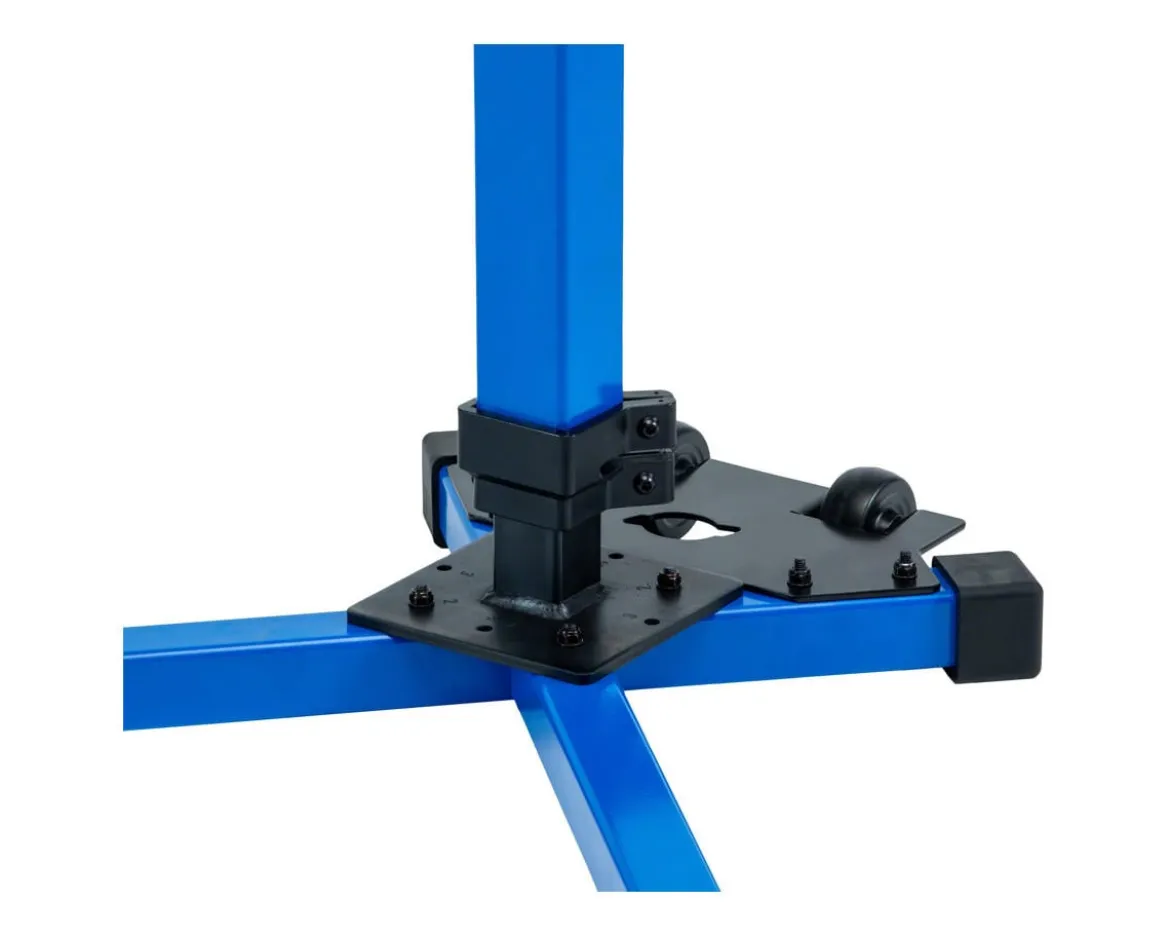

• Integrated wheels in base/legs makes it easy to move the repair stand around the garage or shop

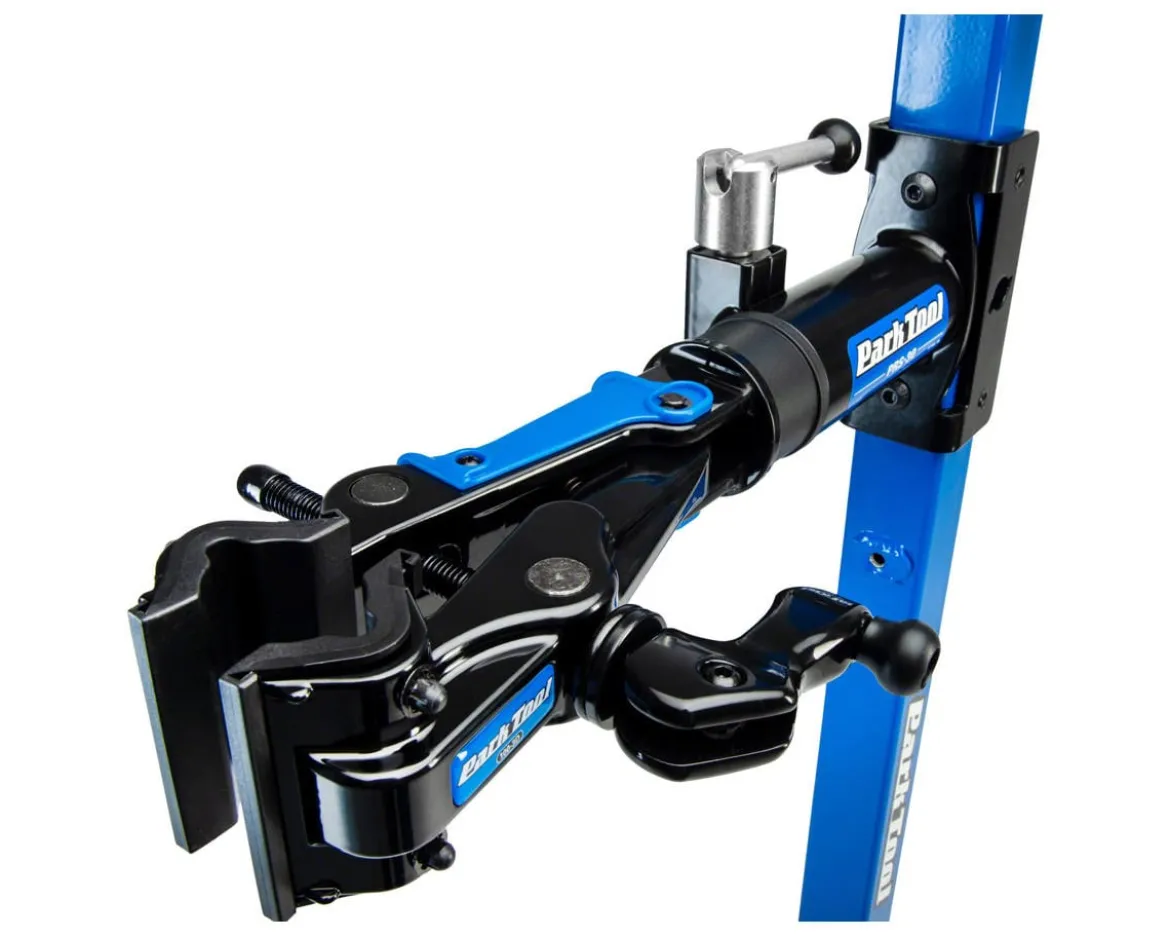

• Rubberized clamp jaw covers protect the finish on frames and sensitive seatpost materials, and can be replaced if they become damaged or worn

Specifications:

• Clamp Seatpost Diameter Capacity: 23.0mm – 76.0mm (7/8″ – 3″) (Fits Round & Aero Shapes)
• Clamp Jaw Height: 70mm (2.75″)
• Work Height Range (Low): 64 – 122 cm (25″ – 48″)
• Work Height Range (High): 74 – 132 cm (29″ – 52″)
• Full Stand Height: 157 cm (62″) (At Maximum Work Height)
• Maximum Weight Capacity: 120 lbs (54kg)
• Work Stand Weight: 44 lbs (20kg)
