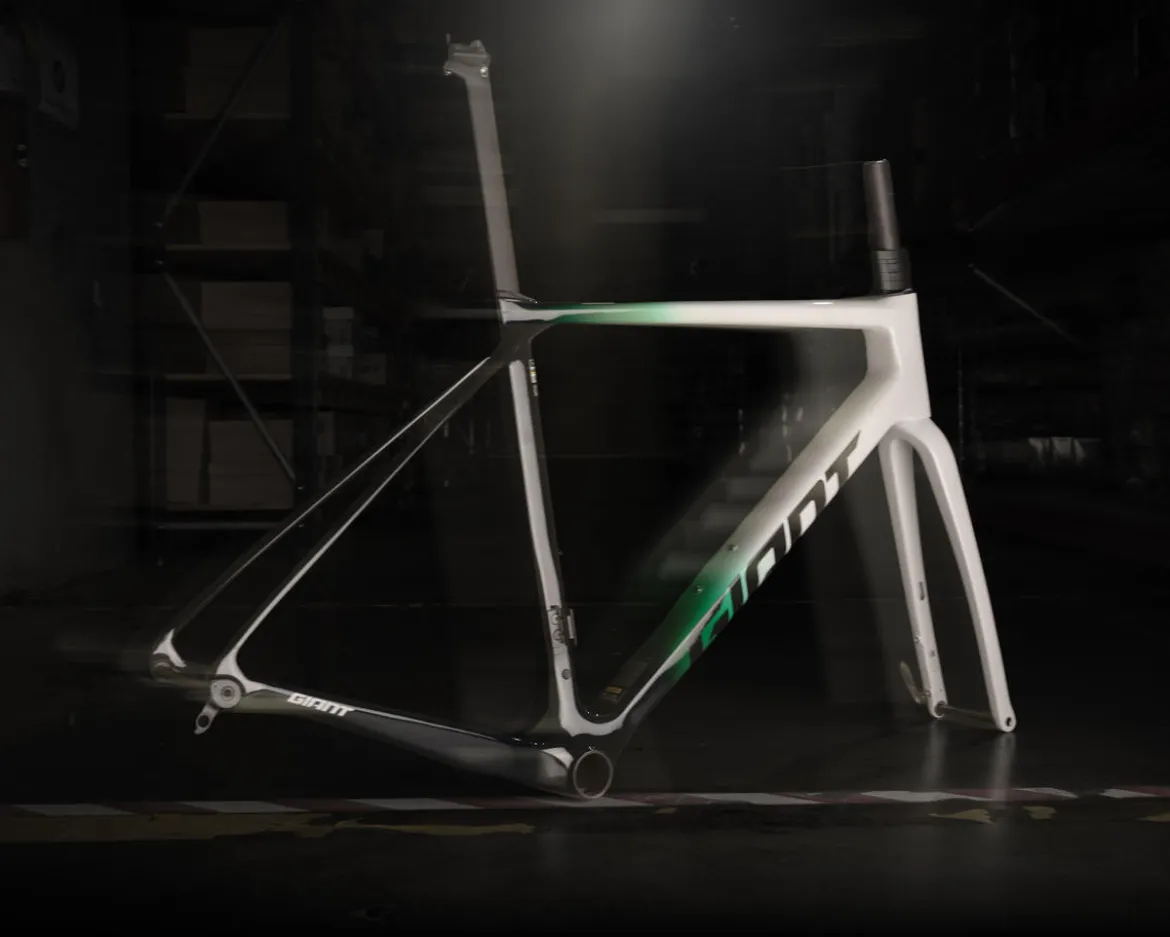

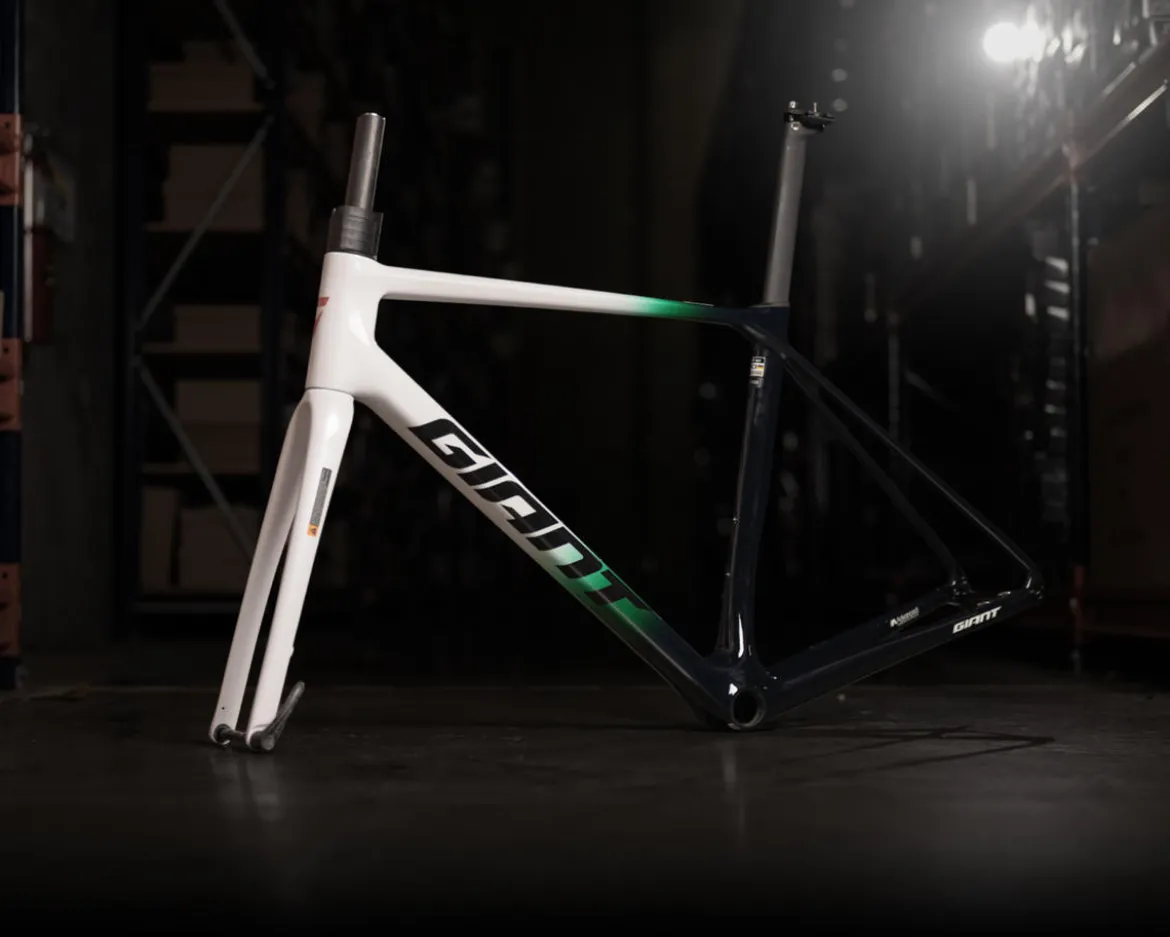

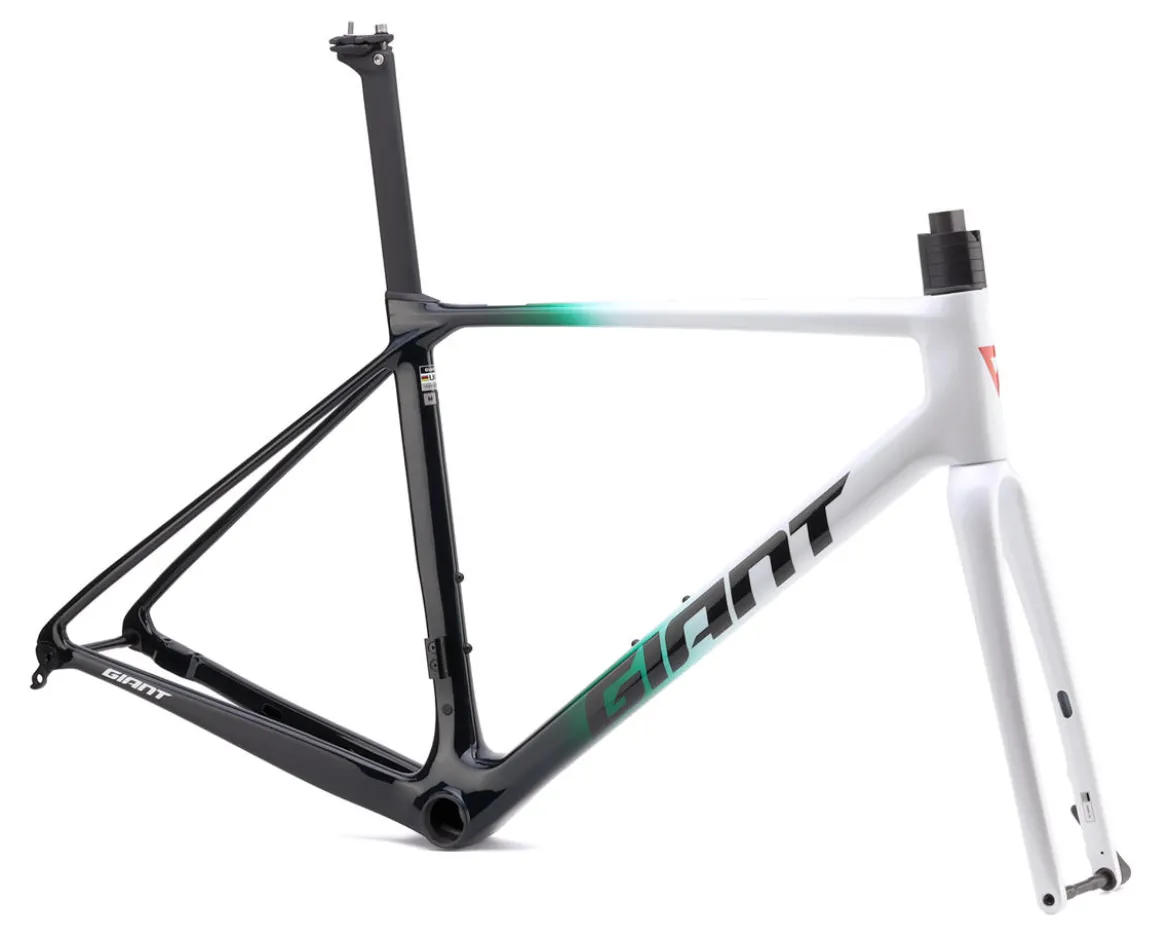

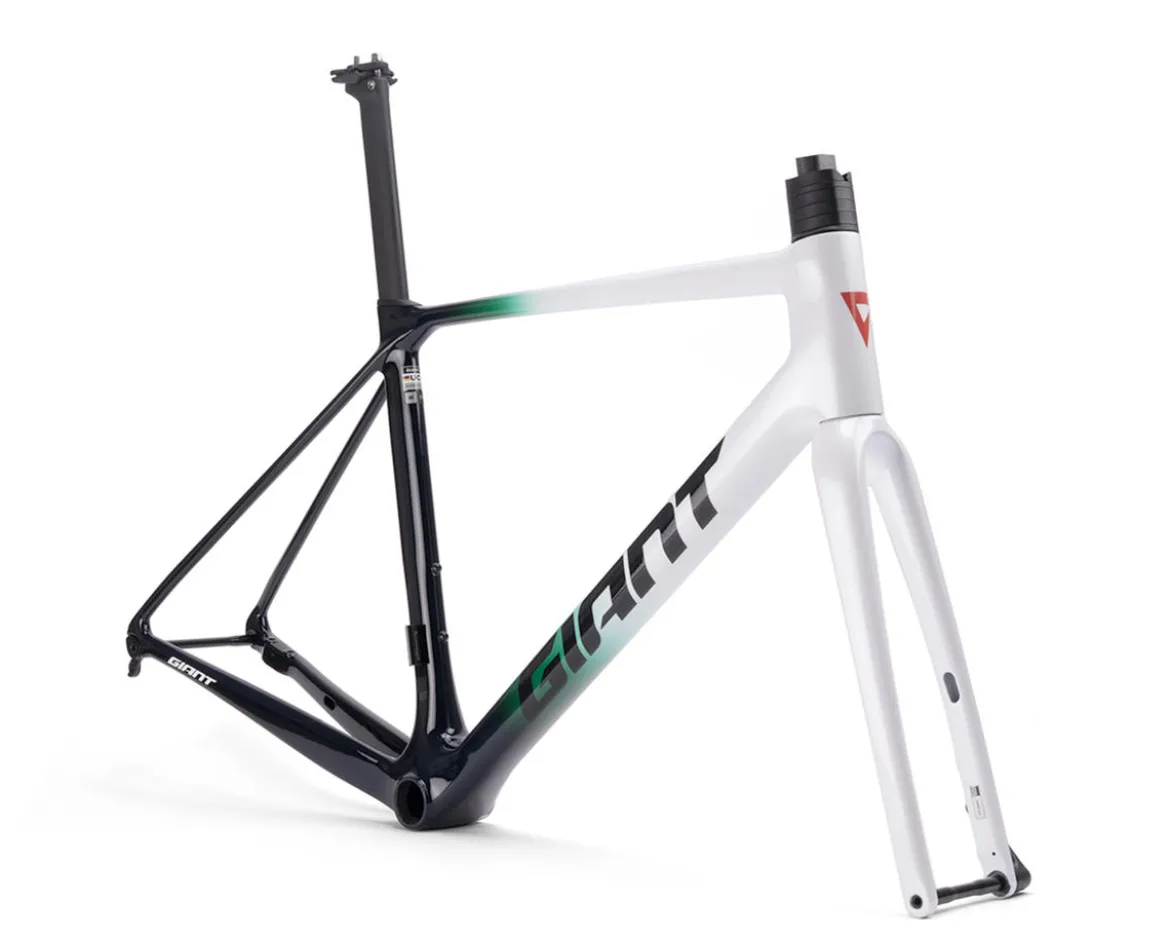

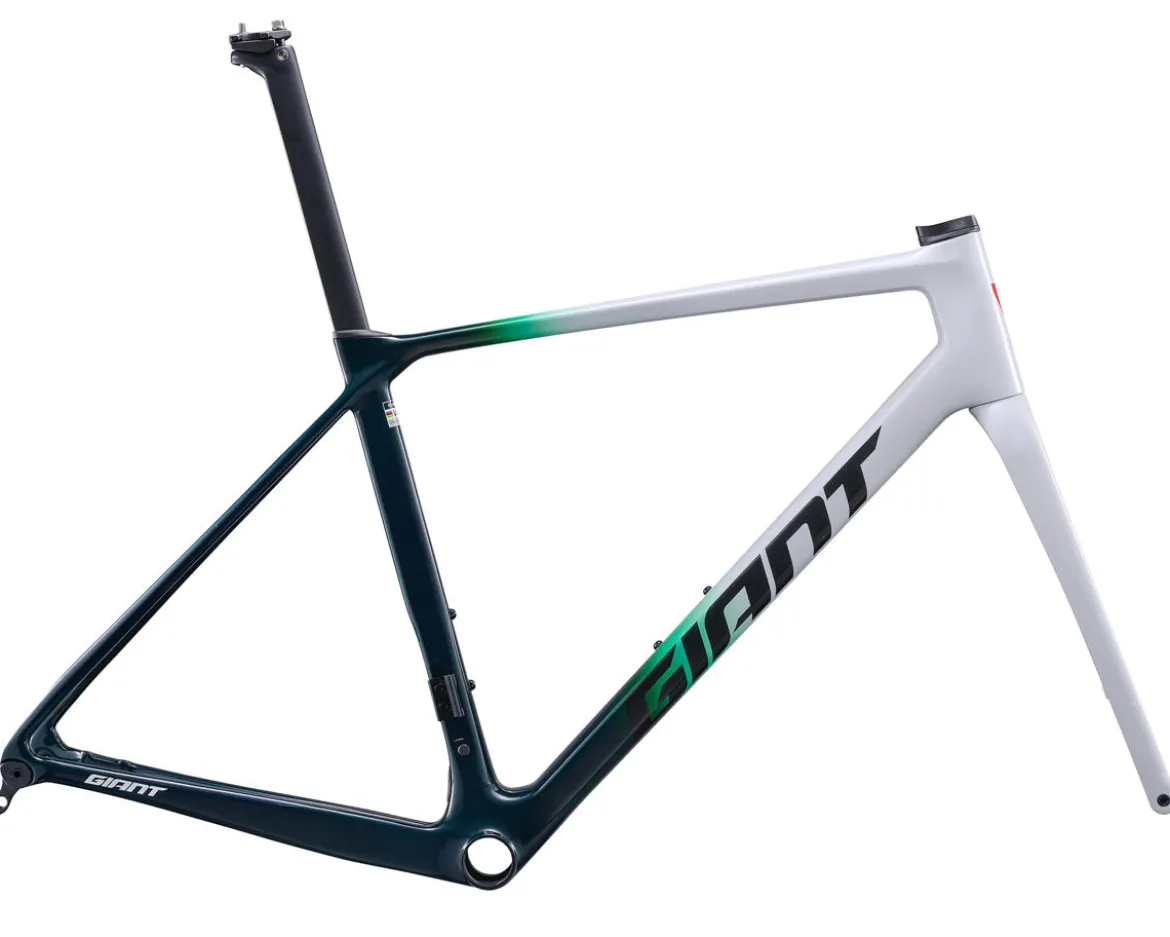

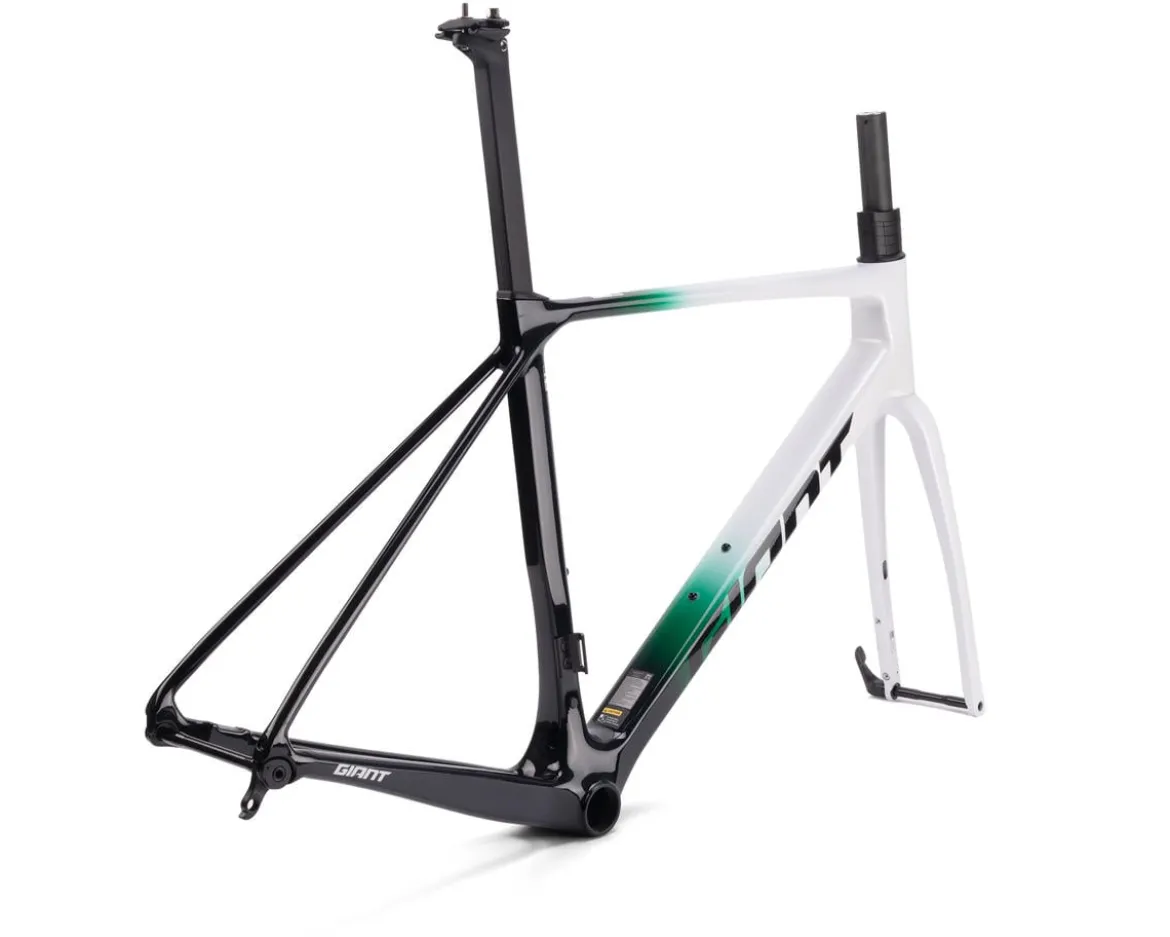

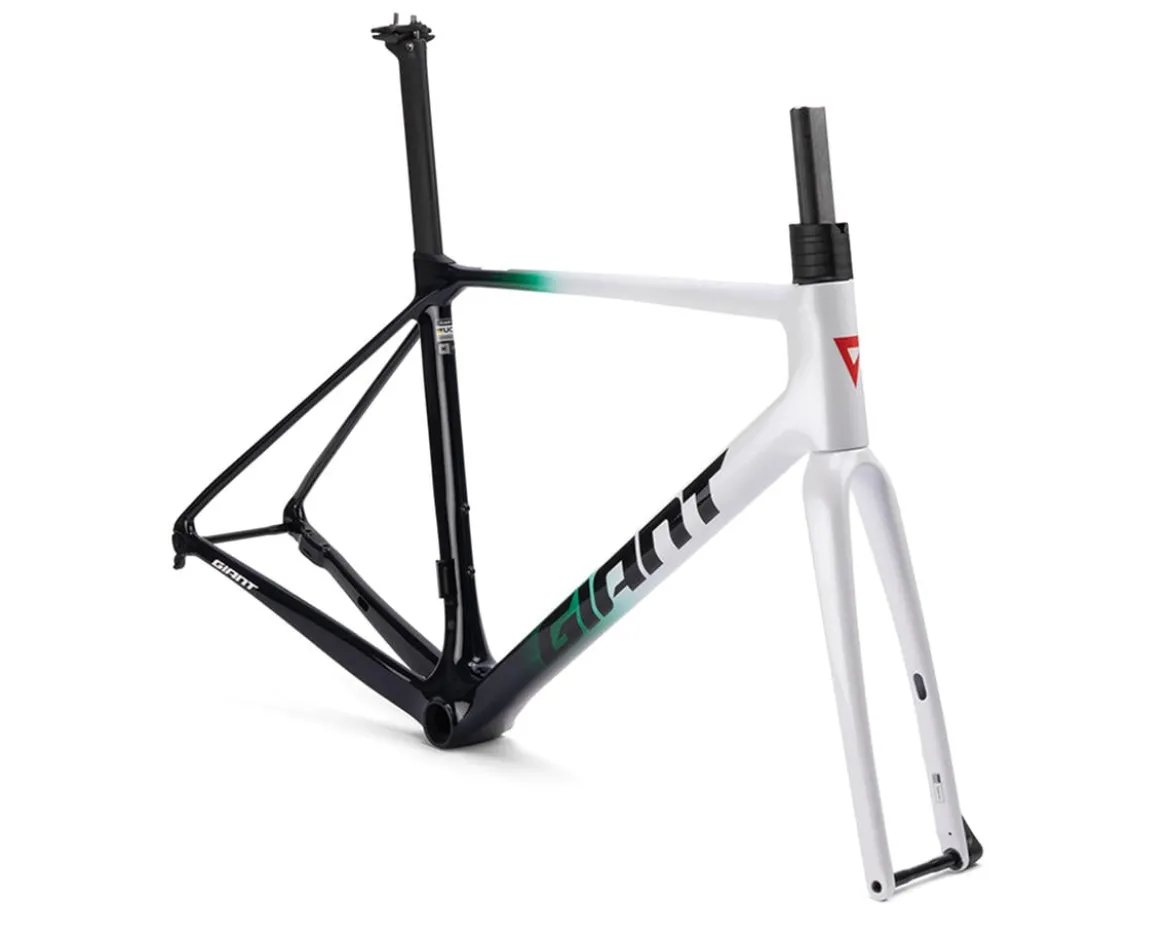

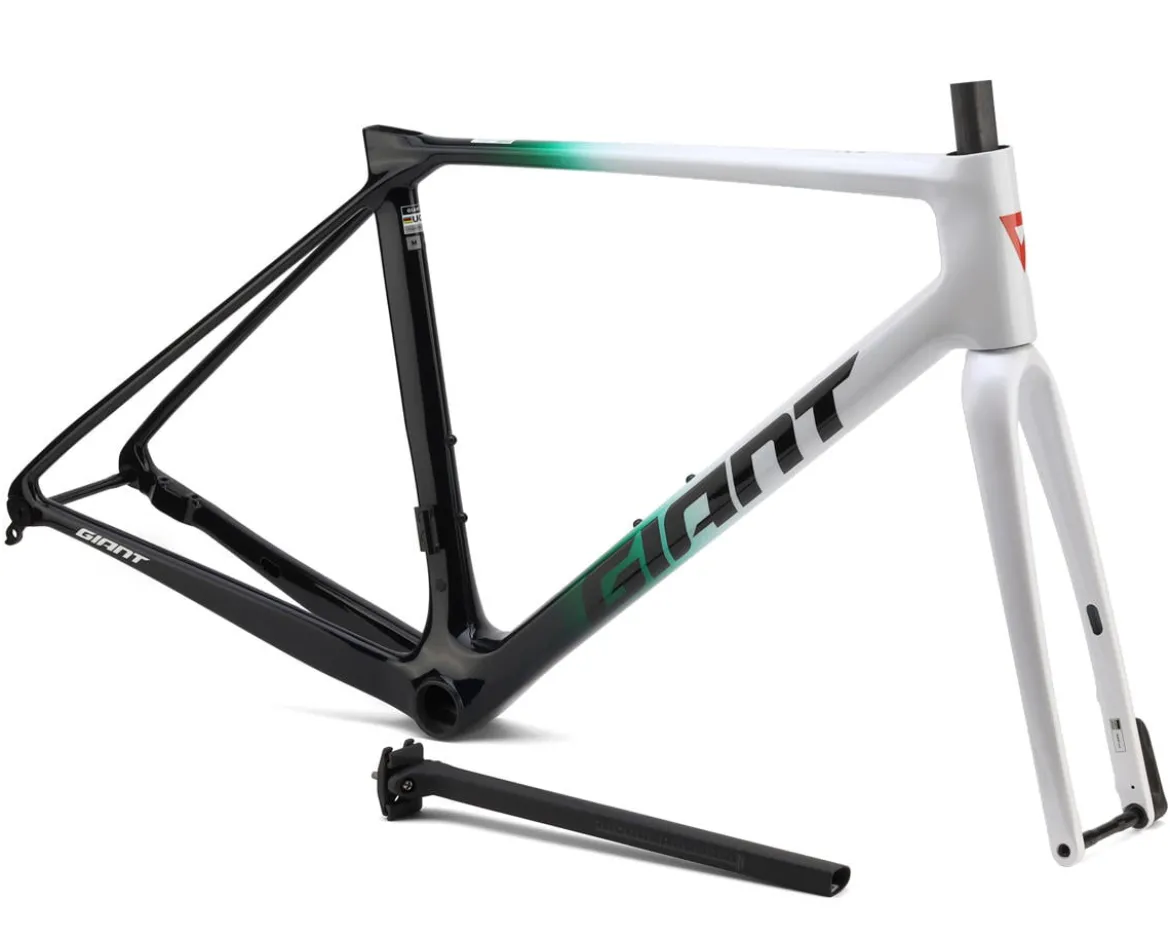

Giant 2026 TCR Advanced Pro Frameset (White/Venom Green) (M)

Giant TCR Advanced Pro Frameset Description:

The Giant TCR Advanced Pro Frameset is a well-rounded platform that has been engineered and developed to provide excellent handling, incredible pedaling efficiency, and a sublime ride quality. Giant bicycles have the unique ability to manufacture their own composite materials out of raw carbon fiber, and they took this ability and crafted a lighter and more aerodynamic frame with improved stiffness in key areas (vs. previous TCR Advanced frames) which delivers an incredibly efficient bike with explosive acceleration. Those improved aerodynamics are achieved thanks to truncated elliptical tube shapes developed through computational fluid dynamic modeling and through the use of internally routed derailleur cables and brake hoses. While this bike is torsionally and laterally very stiff, the engineers have built in plenty of vertical compliance for comfort, and the frame and fork have clearance for up to 700c x 33mm wide tires so this rocket of a bike also provides enough comfort to make grueling training rides and other long distance endeavors more enjoyable.

Note: This frameset requires the use of a stem or an integrated handlebar/stem combo that is designed specifically for Giant’s Overdrive Aero D-Shaped 1-1/4″ Steerer Tube.

Features:

• Well-rounded race bike with a comfortable ride that is right at home at a local crit, a stage race, and fast lunch rides
• Computational Fluid Dynamic modeling used to design the truncated ellipse shape used on the frame tubes to improve the aerodynamic performance
• Giant is one of the few bicycle companies in the world that are able to take high performance carbon fiber in its raw thread form and manufacture their own advanced composite materials in-house which is then use in their frames, forks, and other components
• Front triangle of the TCR Advanced frame is molded as one continuous piece using Giant’s proprietary Modified Monocoque Construction manufacturing process that delivers better manufacturing consistency, great durability, and a refined ride with outstanding performance

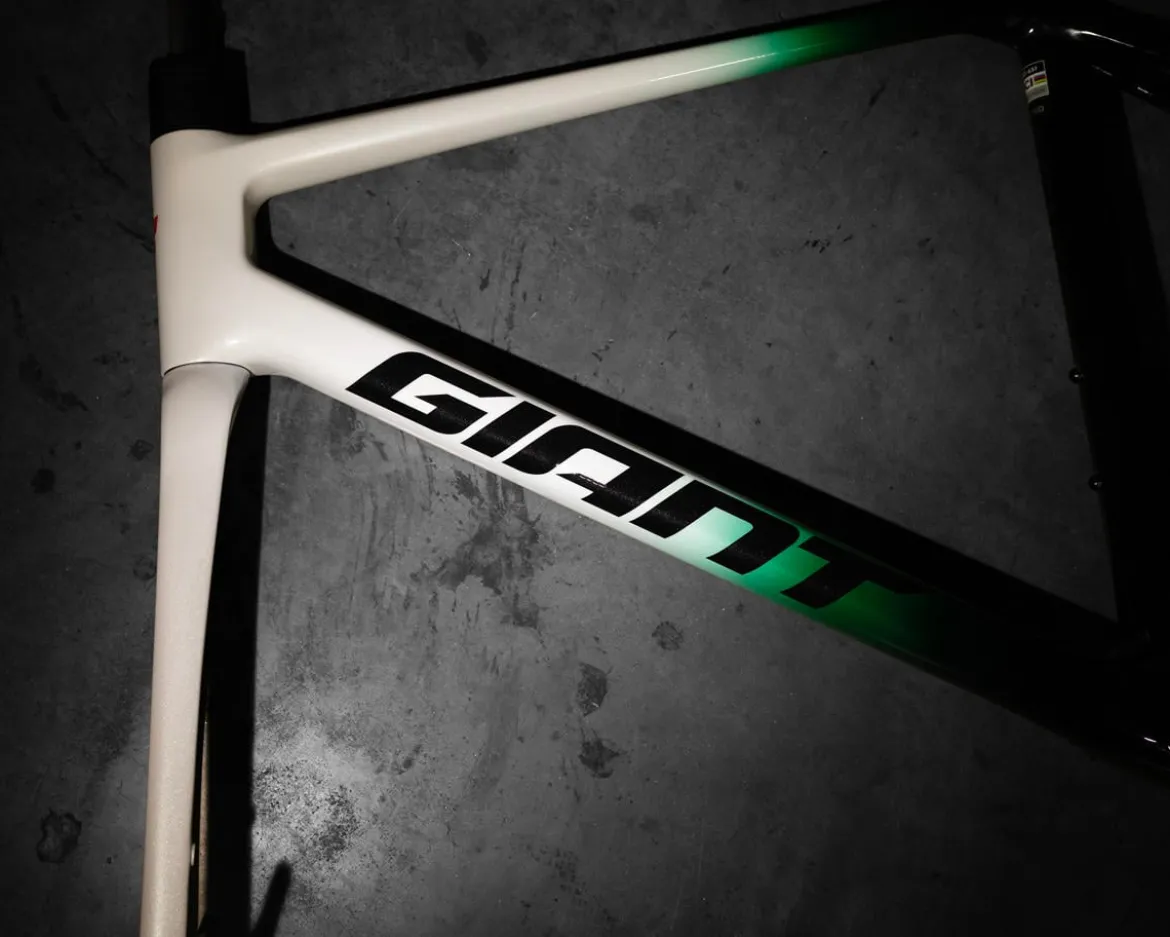

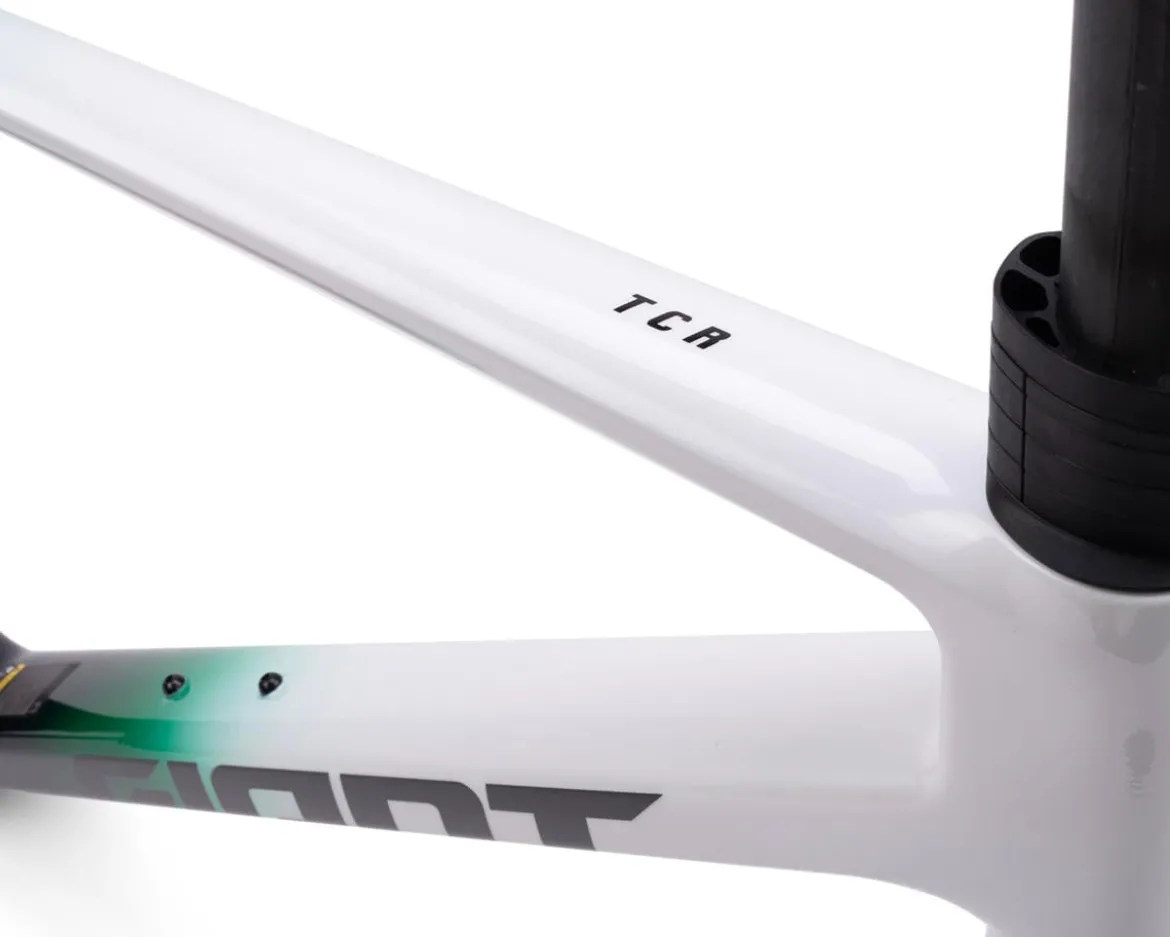

• Overdrive Aero headtube on the frame not only improves aerodynamics, it has the room to more easily install and service internally routed derailleur cables and the rear brake cable housing or hydraulic hose
• Advanced SL fork is entirely made out of carbon fiber and features a D-shaped fork steerer tube which has a more secure interface with compatible stems and provides additional room along the front edge for the internal cable routing

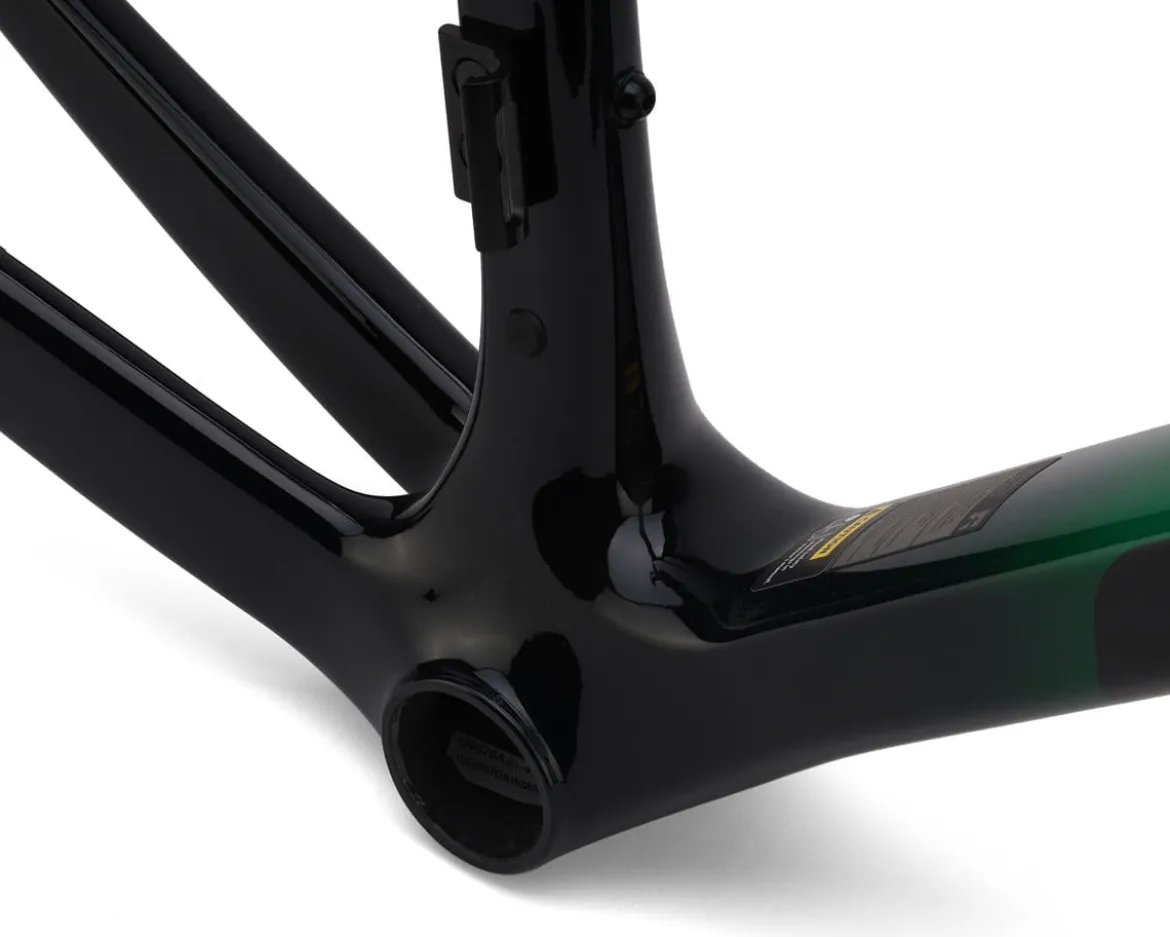

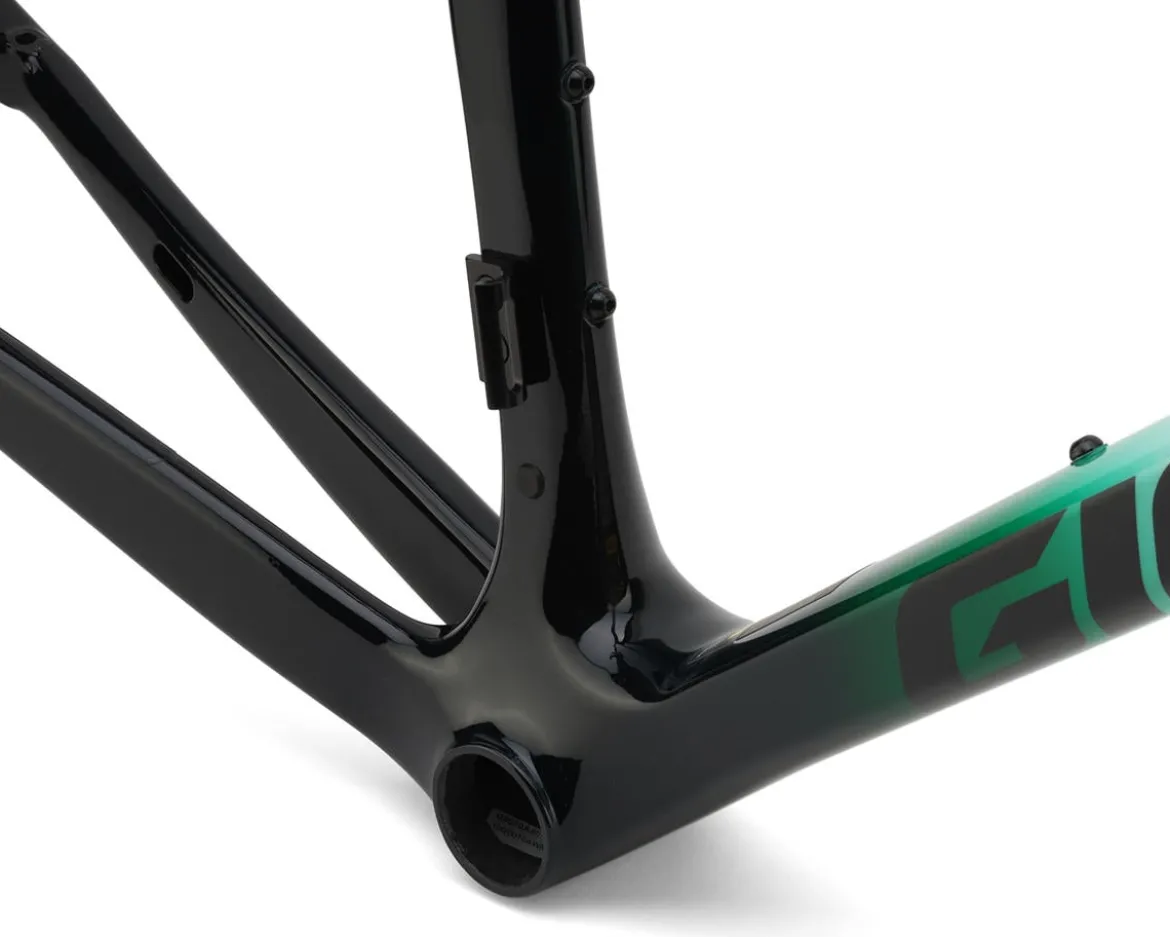

• Oversized bottom bracket region (dubbed the PowerCore) with a fully integrated 86mm wide bottom bracket design ensures the frame will not flex and will deliver more of the riders power to the rear wheel

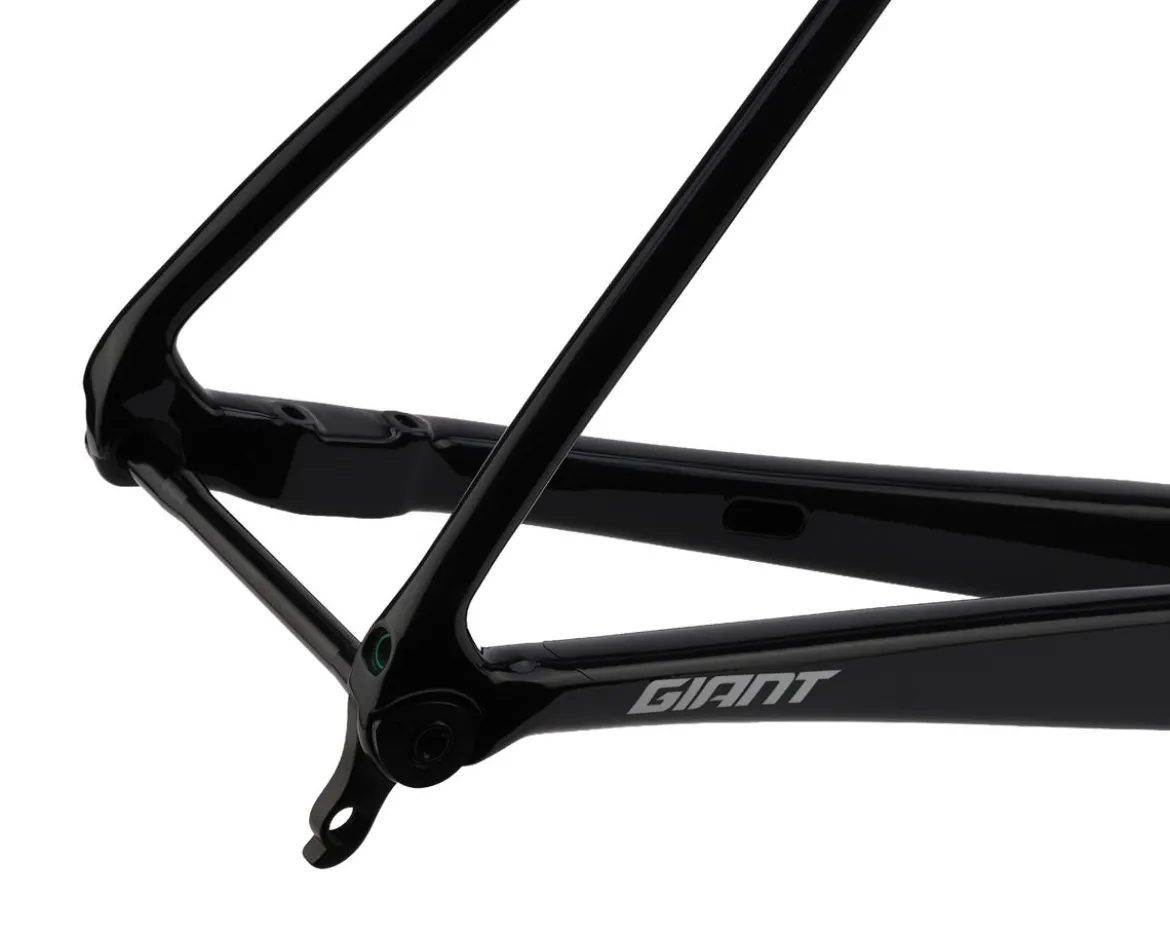

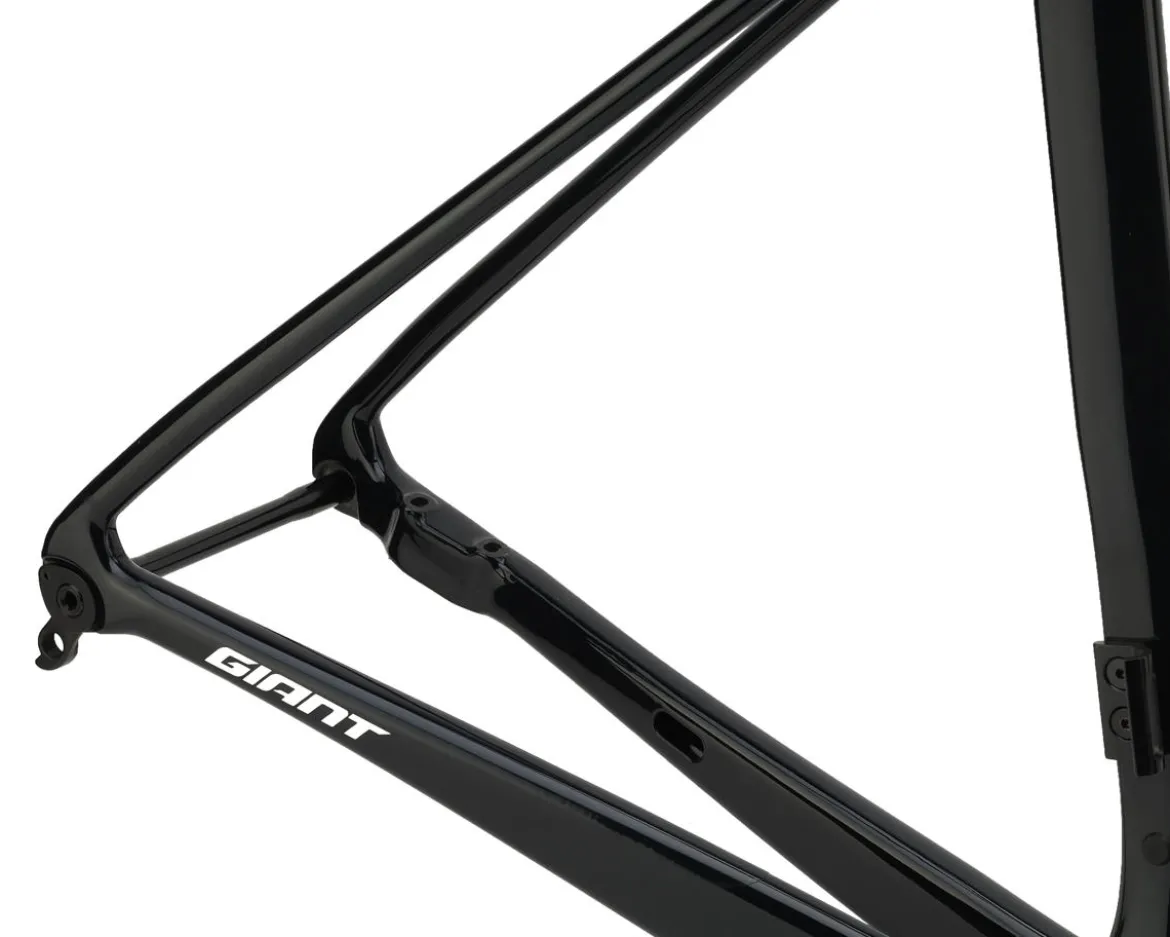

• Asymmetric chainstay design further aids in power transfer and helps to plant the rear wheel during high speed corners
• Frameset includes headset bearings, seatpost, and thru axles
• Compatible with mechanical or electronic drivetrains, and the front braze on derailleur mount can be removed so this frame can be set up with either a 1x or 2x crankset/drivetrain

Specifications:

• Frame Material: Advanced-Grade High Performance Carbon (Modified Monocoque Construction) (Internal Cable/Hydraulic Brake Hose Routing) (Press-Fit 86mm BB) (12x142mm Thru-Axle) (Flat-Mount Disc)
• Fork Material: Advanced SL-Grade Carbon (OverDrive Aero Full-Carbon Steerer) (12x100mm Thru-Axle) (Flat-Mount Disc)
• Headset: Included
• Headset Size: Integrated
• Brake Compatibility: Disc Only (Hydraulic or Mechanical)
• Brake Mounts: Flat Mount
• Rotor Compatibility: Up to 160mm (Front & Rear)
• Axle Type: Thru Axle
• Hub Spacing: 12 x 100mm (Front) | 12 x 142mm (Rear)
• Stem: Not Included
• Stem Size: OverDrive Aero (1-1/4″ D-Shape)

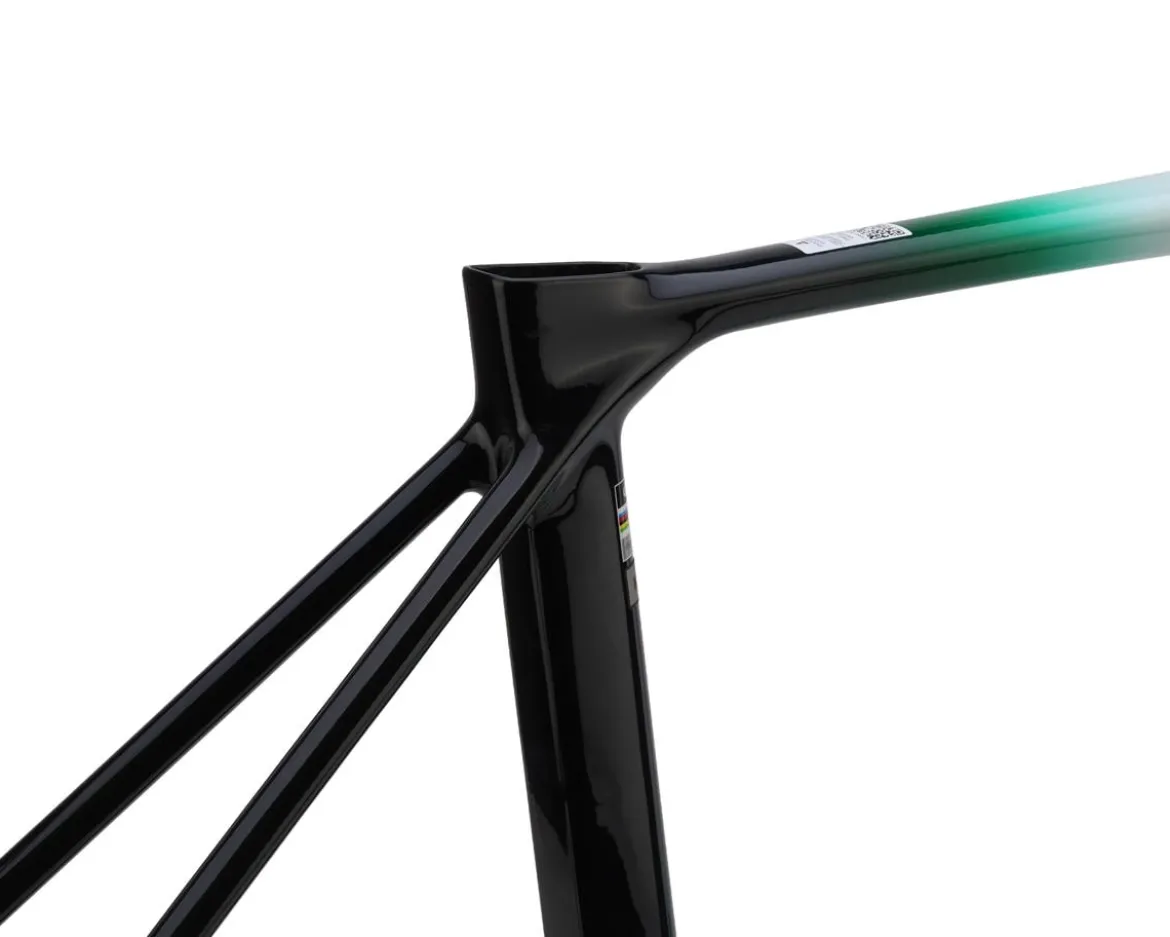

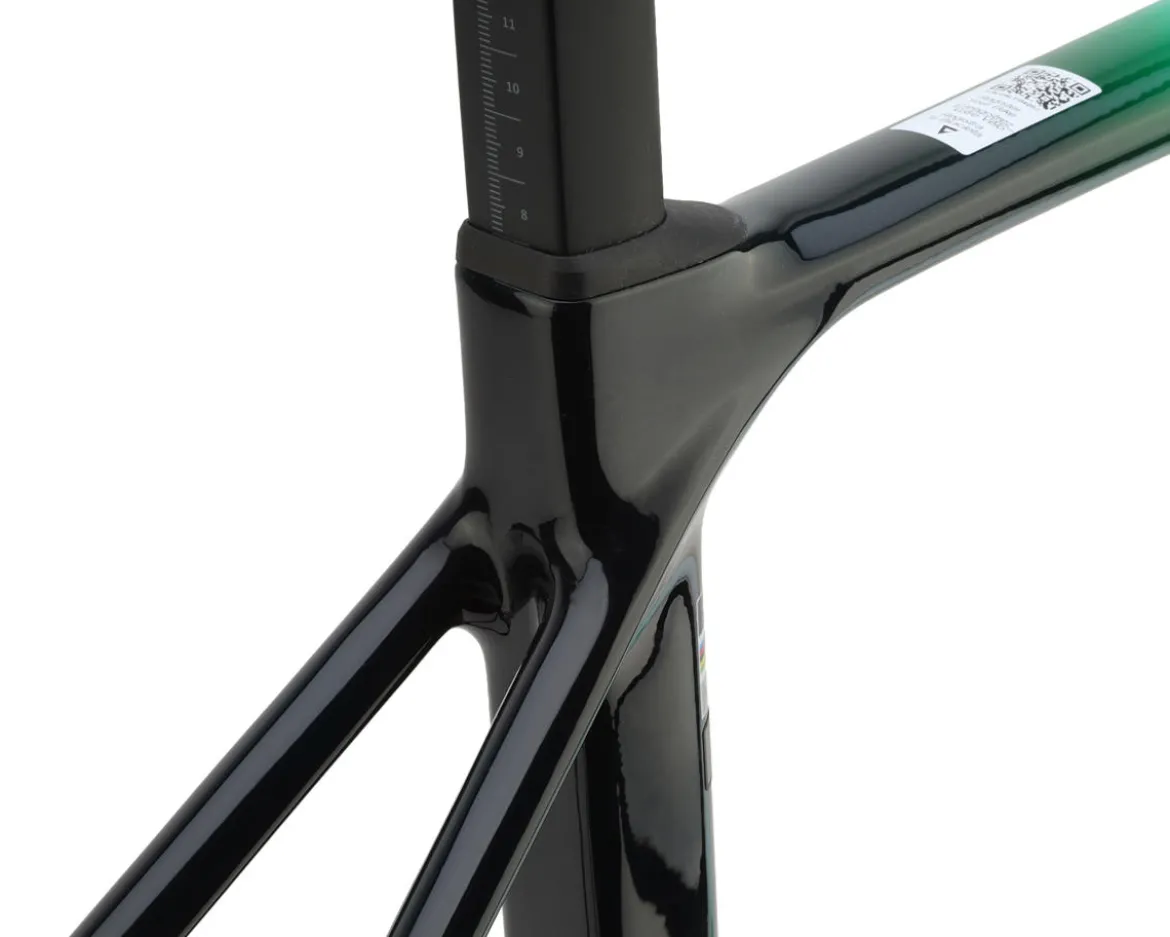

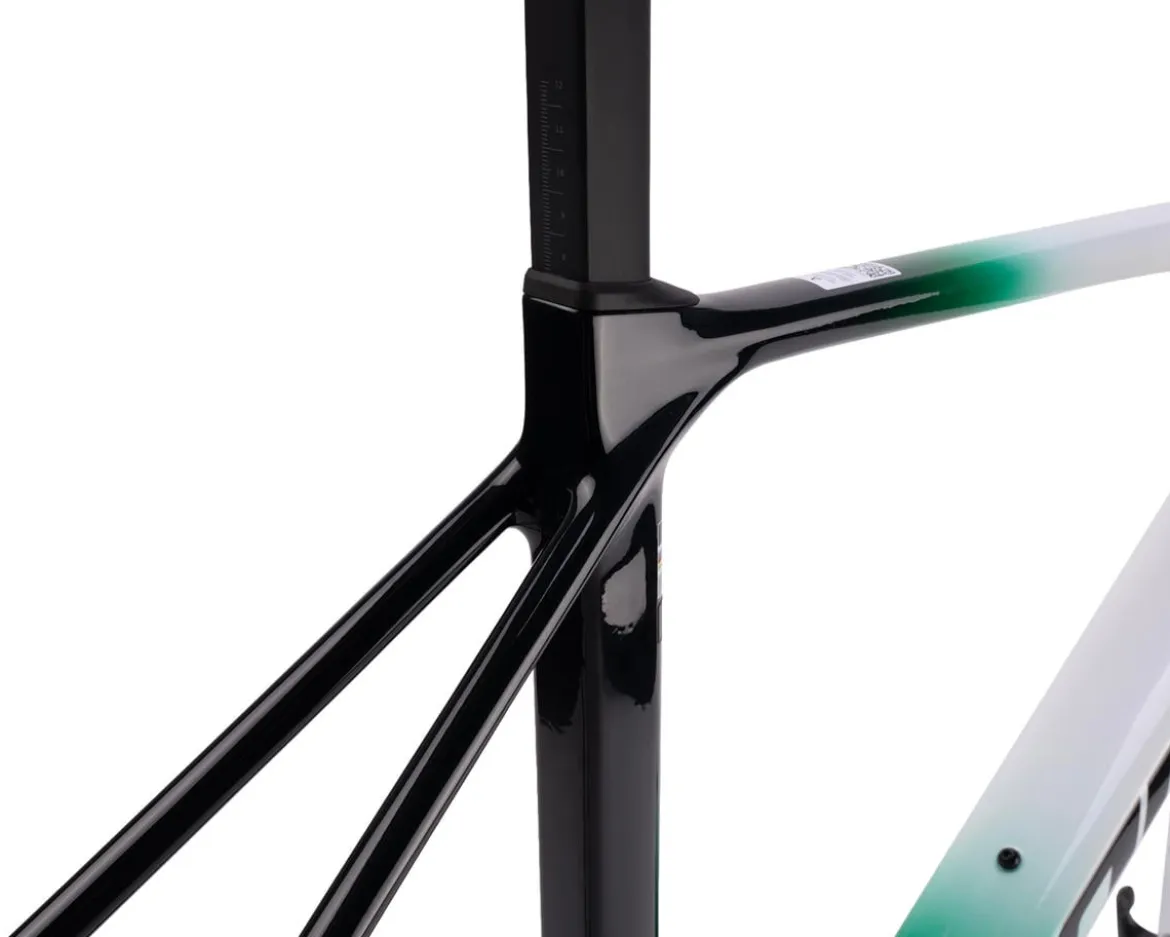

• Seatpost: Giant Variant (Composite) (-5/+15mm Offset)
• Seatpost Diameter: Proprietary Aero Shape
• Seatpost Clamp: Included (Alloy) (30mm)
• Bottom Bracket: Not Included
• Bottom Bracket Type: PF41 (BB86)
• Bottom Bracket Width: 86mm
• Drivetrain Compatibility: Electronic & Mechanical (1x & 2x Drivetrains)
• Chainring Compatibility: –
• Tire Clearance: Up to 700c x 33mm
• Cable Routing: Internal
• Dropper Post Routing: –
• Water Bottle Bosses: 2 Mounting Positions (Seattube & Downtube)
• Fender/Rack Mounts: No
• Front Derailleur Mount: Braze-On
• Rear Derailleur Hanger: Included
• Model Year: 2026
• Color: White/Venom Green
• Weight: 1430g (56cm)

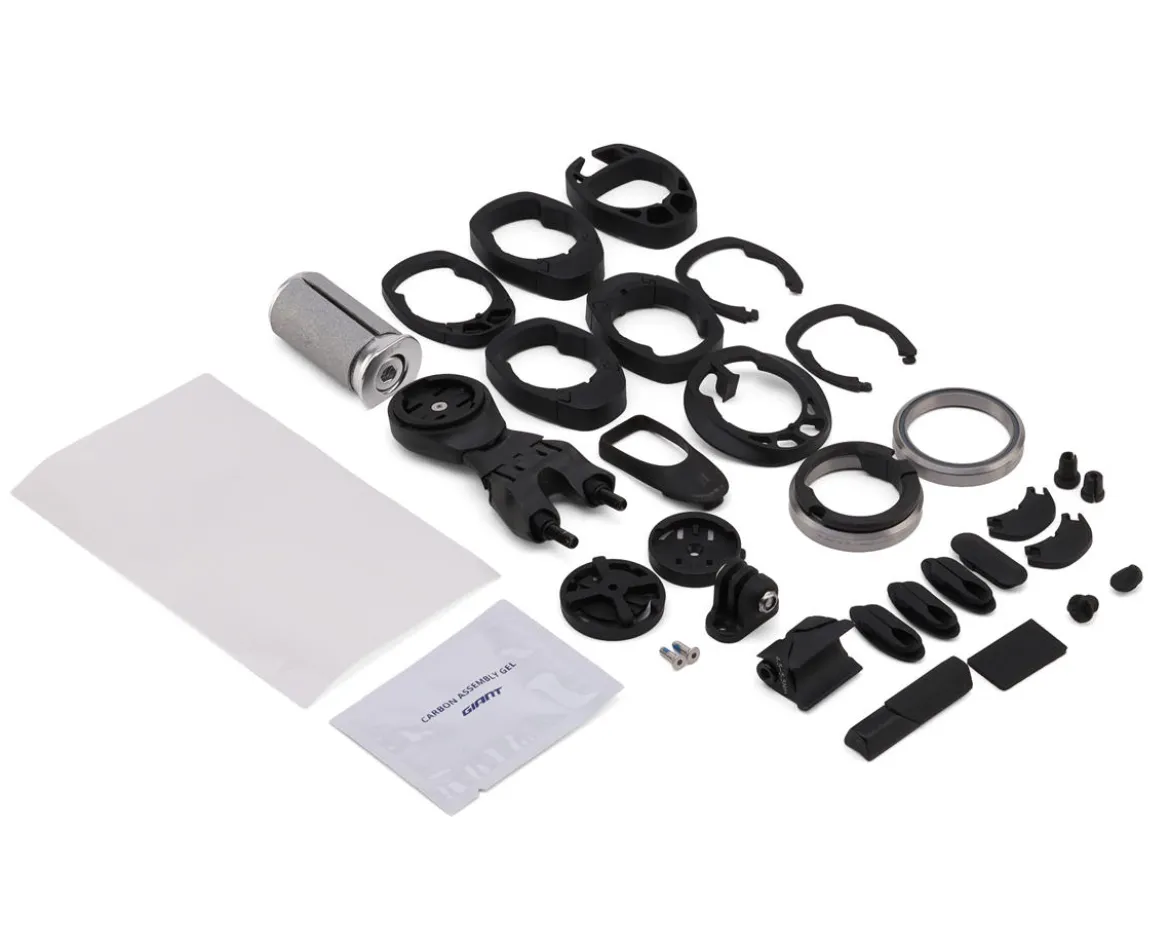

Includes:

• (1) Giant Advanced Pro Frame
• (1) Giant Advanced SL Carbon Fork
• (2) Headset Bearings; 46.9mm (OD) x 37mm (ID) x 7mm (Thick) (Upper & Lower)
• (1) Giant Variant Carbon Seat Post
• (1) Derailleur Hanger (Installed)
• (1) Braze-on Front Derailleur Mount (Installed)
• (2) 12mm Thru Axles (100mm Front, 142mm Rear)
